Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

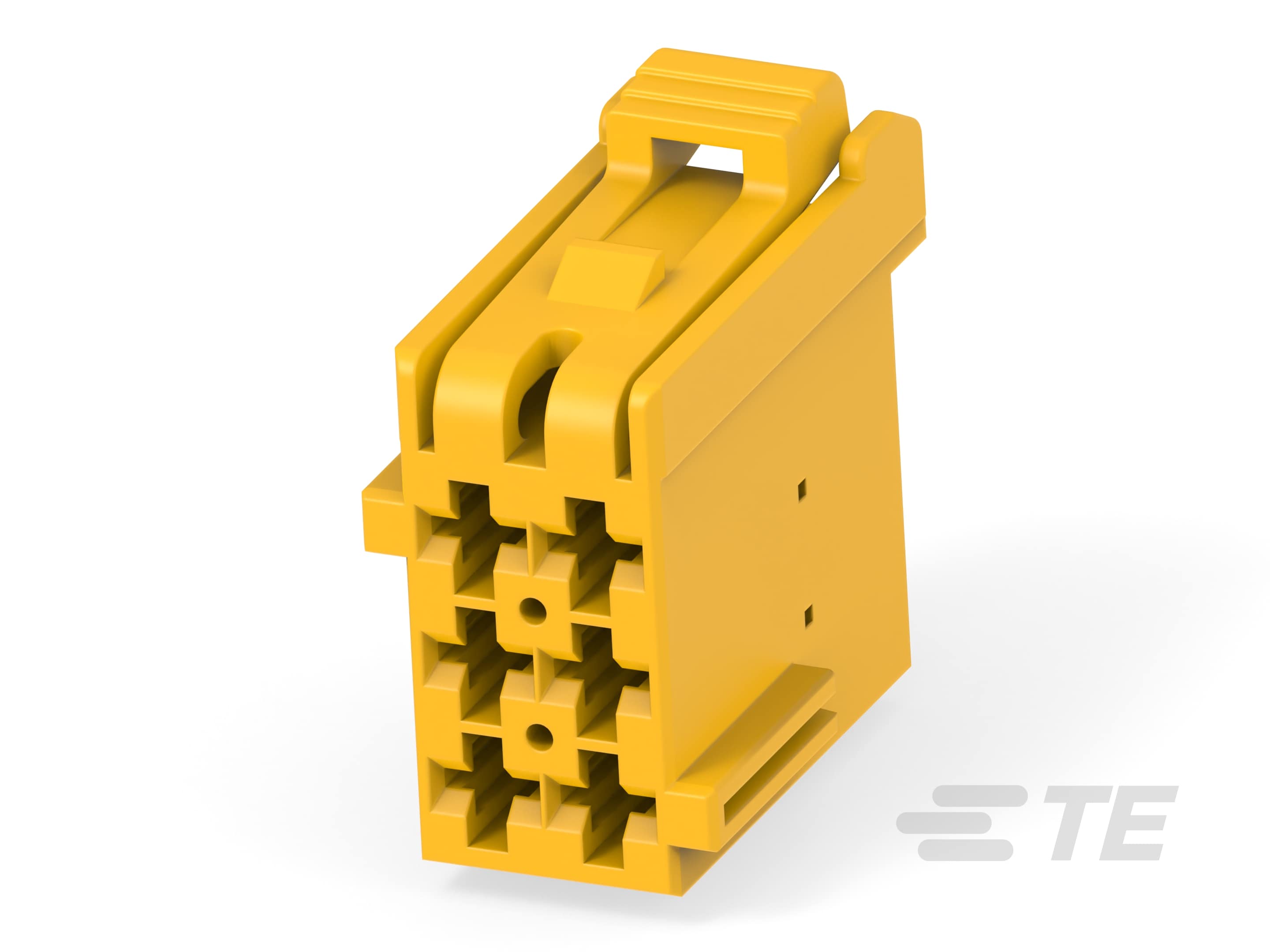

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Contact Type : Receptacle

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Housing Material : PBT GF

• Centerline (Pitch) : 5 mm [ .197 in ]

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Carton

• Connector Height : 26.5 mm [ 1.043 in ]

• Product Length : 11.2 mm [ .441 in ]

• Row-to-Row Spacing : 5 mm [ .196 in ]

• Number of Positions : 6

• Number of Rows : 2

• Nominal Voltage Architecture (V): 28

• Primary Product Color : Yellow

• Connector & Keying Code : A

• Operating Temperature (Max) : 100 °C [ 212 °F ]

• Operating Temperature Range : -30 – 130 °C [ -22 – 266 °F ]
