Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

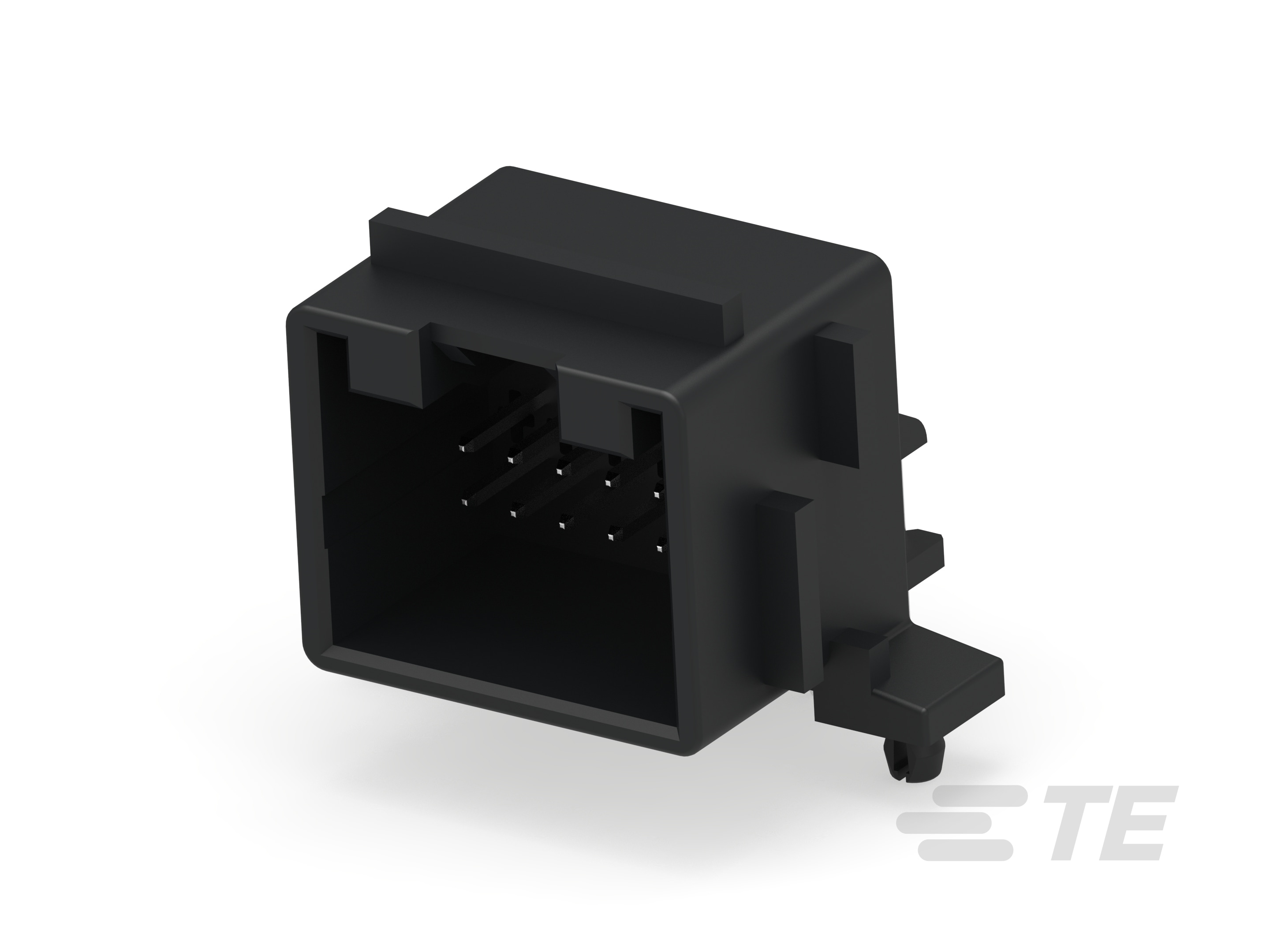

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 12

• PCB Mount Orientation : Horizontal

• Number of Positions : 12

• Number of Rows : 2

• Mating Tab Thickness : .63 mm [ .025 in ]

• Mating Tab Width : .63 mm [ .025 in ]

• Contact Size : .63mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• PCB Mount Retention Type : Boardlock

• Mating Retention : With

• Mounting Holes : Without

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Mating Alignment : With

• Shielded : No

• Solder Process : Reflow Solder

• Circuit Application : Signal

• Packaging Quantity : 270

• Packaging Method : Tray

• Profile Height from PCB : 19.6 mm [ .772 in ]

• Connector Length : 30 mm [ 1.181 in ]

• PCB Thickness (Recommended) : .8 – 1.6 mm [ .031 – .063 in ]

• Connector Width : 21.7 mm [ .854 in ]

• Primary Product Color : Black

• Termination Method to PCB : Through Hole - Solder

• Centerline (Pitch) : 2.5 mm [ .098 in ]
