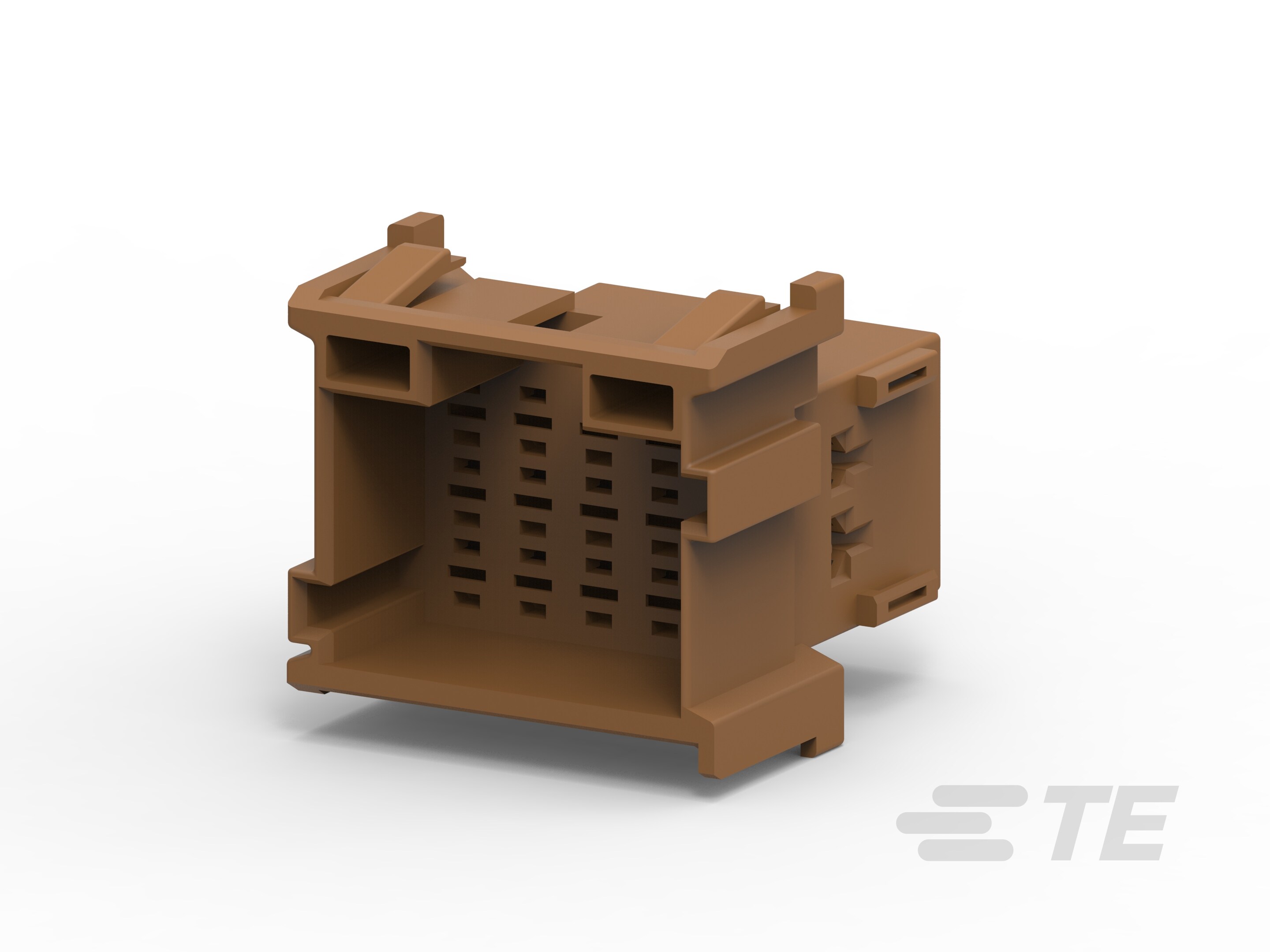

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Wire

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Tab

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Housing Material : PA GF

• Centerline (Pitch) : 5 mm [ .197 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Connector & Keying Code : A

• Operating Voltage (VDC): 28

• Nominal Voltage Architecture (V): 28

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Bag & Box

• Packaging Quantity : 700

• Connector Height : 30.6 mm [ 1.2 in ]

• Product Length : 37.5 mm [ 1.47 in ]

• Product Width : 35.5 mm [ 1.39 in ]

• Row-to-Row Spacing : 5.5 mm [ .217 in ]

• UL Flammability Rating : UL 94HB

• Number of Positions : 18

• Number of Rows : 3

• Operating Temperature (Max) : 120 °C [ 248 °F ]

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
