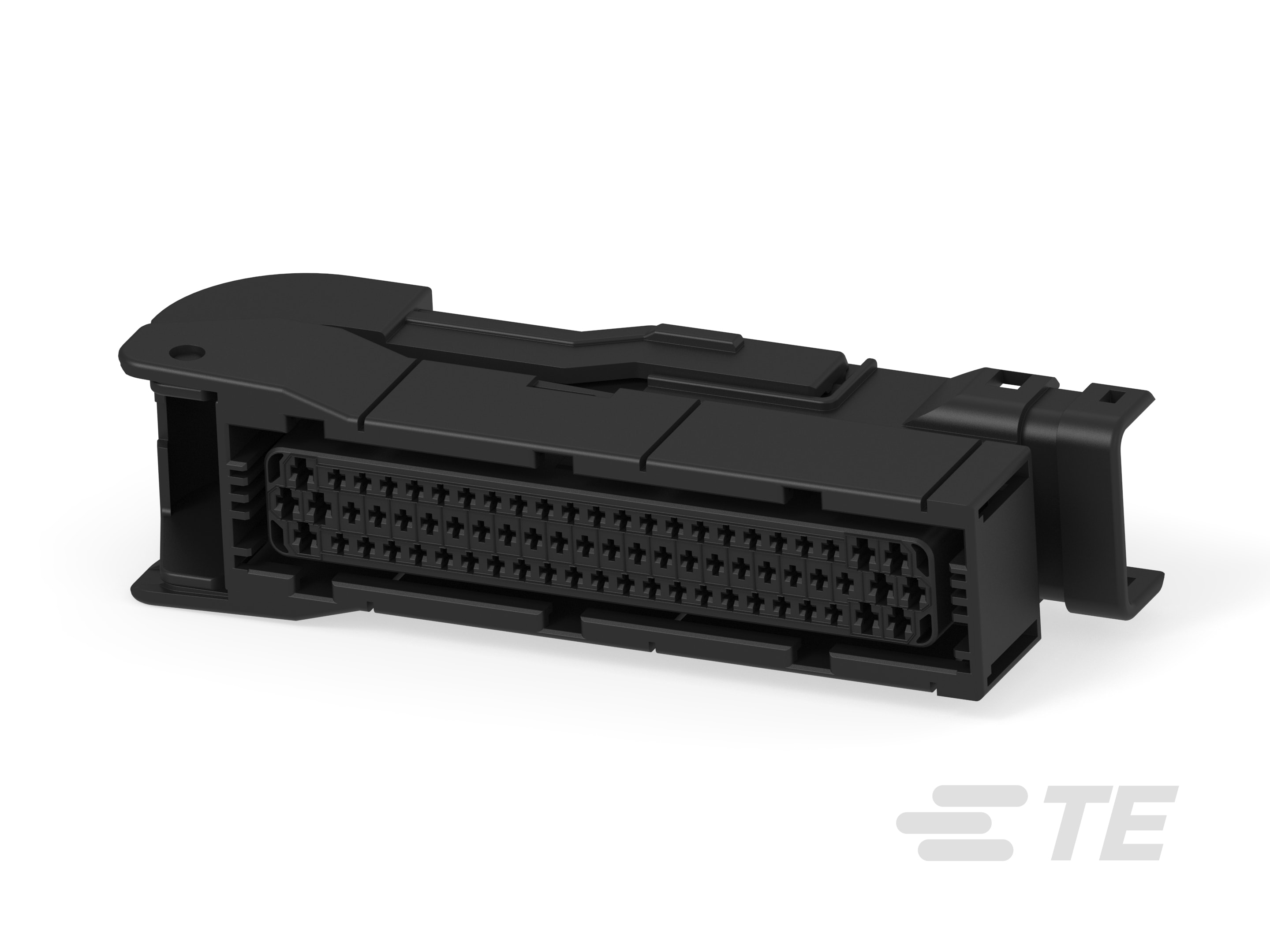

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : Yes

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 2.8mm, 1.6mm

• Mating Tab Width (mm): 1.6, 2.8

• Mating Tab Width (in): .063, .11

• Contact Current Rating (Max) (A): 30, 10

• Housing Material : PBT GF

• Centerline (Pitch) (mm): 4, 5

• Centerline (Pitch) (in): .157, .196

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : Neutral

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarizing Slot

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Package

• Connector Height : 46 mm [ 1.811 in ]

• Product Length : 135.66 mm [ 5.341 in ]

• Row-to-Row Spacing : 5.9 mm [ .232 in ]

• Product Width : 38.5 mm [ 1.516 in ]

• Number of Positions : 70

• Number of Rows : 3

• Nominal Voltage Architecture (V): 12

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]
