1060-12-0166-PS

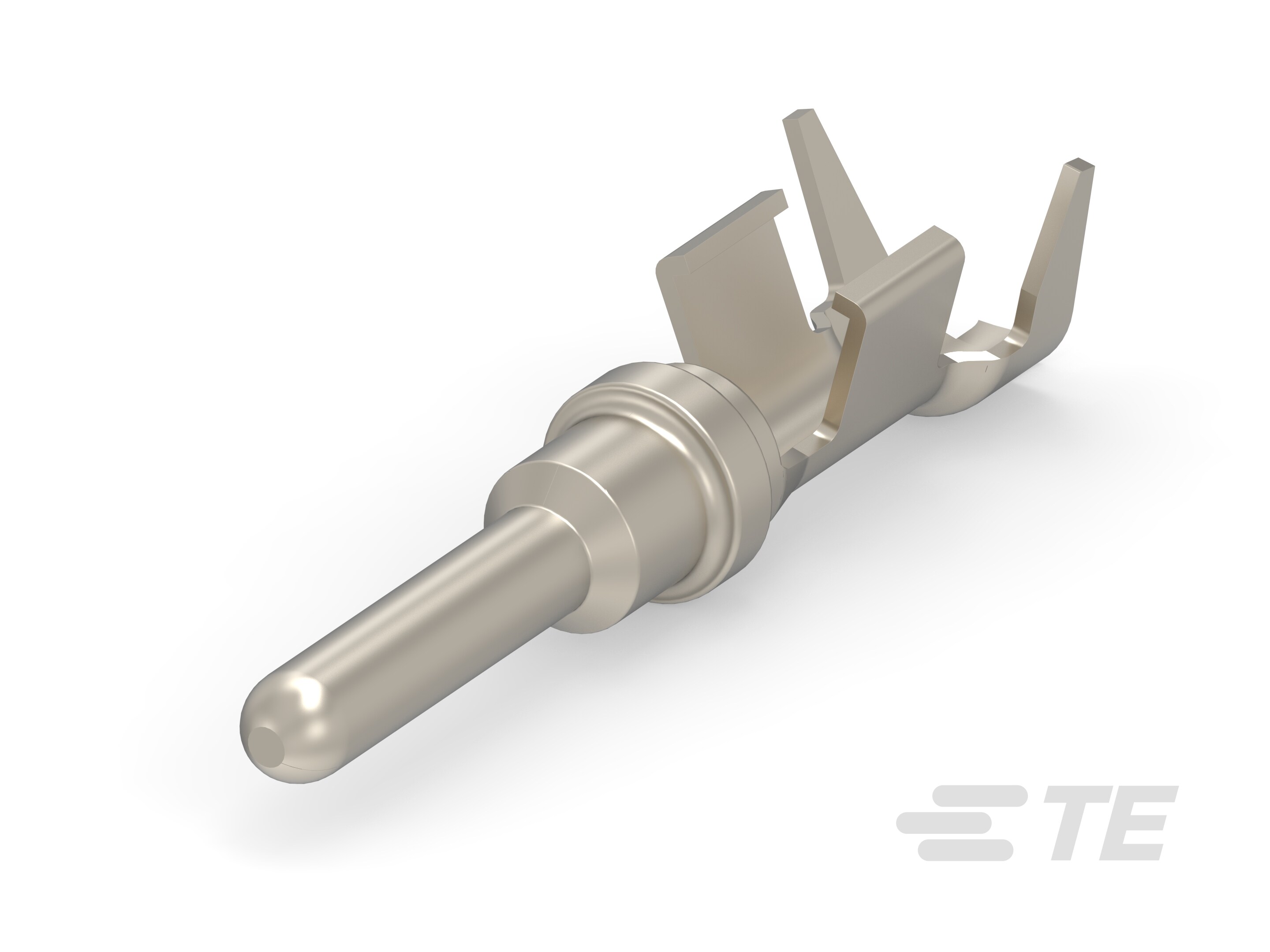

Pin Terminal, 14 – 12 AWG, 2 – 4 mm² Wire, Nickel (Ni), 2.39 mm [.094 in] Pin Diameter, Family Seal or Unsealed, DEUTSCH Common Contact
1060-12-0166-PS
Pin Terminal, 14 – 12 AWG, 2 – 4 mm² Wire, Nickel (Ni), 2.39 mm [.094 in] Pin Diameter, Family Seal or Unsealed, DEUTSCH Common Contact
-
- DEUTSCH
- DEUTSCH Common Contact
- TE Internal #: 1060-12-0166-PS
- TE Internal Description: PIN, SF, SIZE 12, 12-14, NI/SN, 100 PC
-
Terminal Type : Pin
-
Wire Size (AWG): 14 – 12
-
Wire Size (mm²): 2 – 4
-
Interface Plating : Nickel (Ni)
-
Primary Locking Feature : On the Terminal
Documents
Product Drawings
- STAMPED CONTACT PIN SIZE 12 PARTIAL STRIP ENG_CD_1060-12-XXXX-PS_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1060-12-0166-PS_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1060-12-0166-PS_A.3d_stp.zip English
- ENG_CVM_CVM_1060-12-0166-PS_A.2d_dxf.zip English
- ENG_CVM_CVM_1060-12-0166-PS_A.3d_igs.zip English
Datasheets & Catalog Pages
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151002_F.pdf English
- Product Specification ENG_SS_108-151000_J.pdf English
