130014

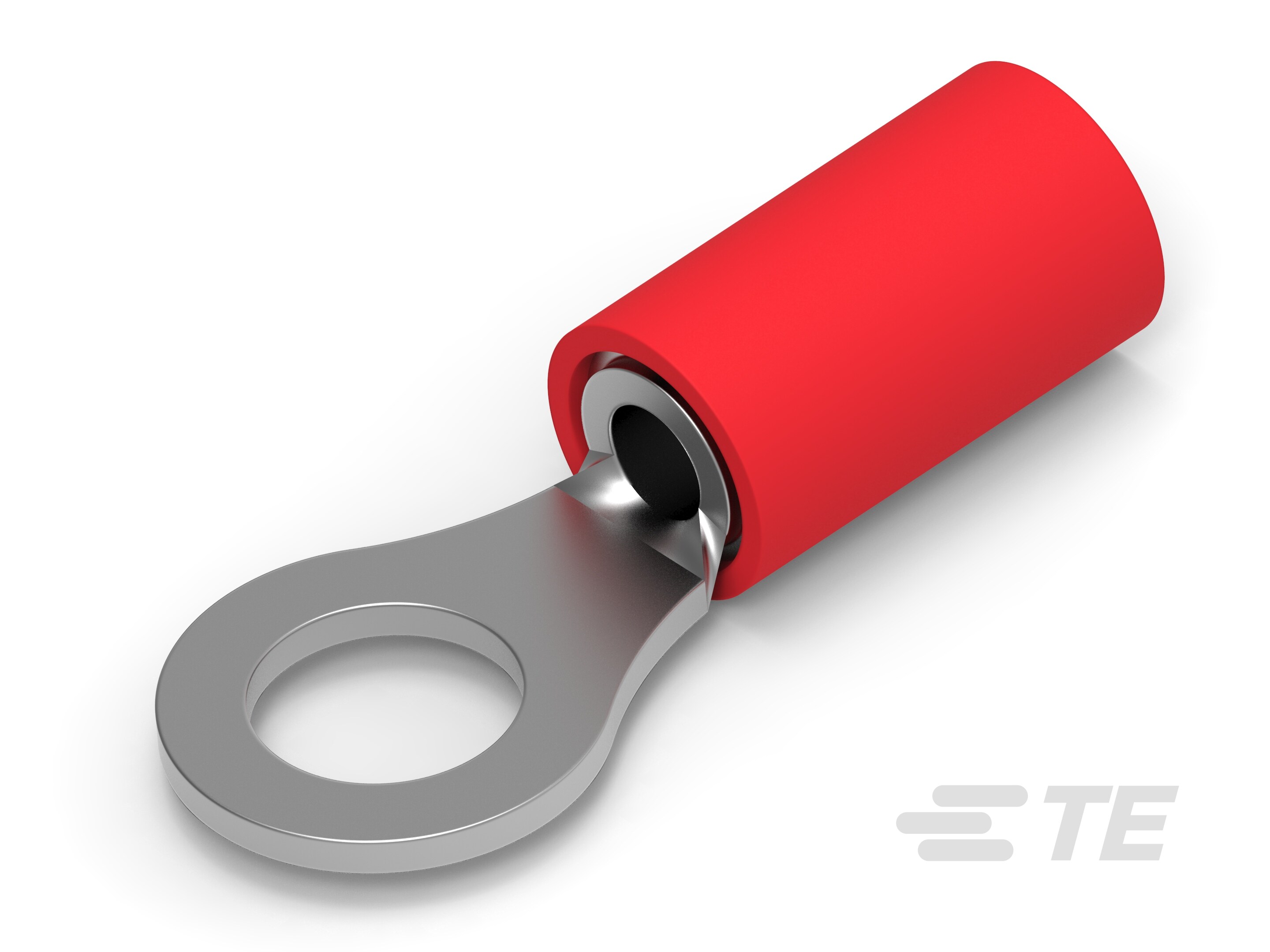

Closed Ring Tongue Terminal, 22 – 16 AWG, M5 Stud, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
130014
Closed Ring Tongue Terminal, 22 – 16 AWG, M5 Stud, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 130014
- TE Internal Description: TERM, R, PG, 22-16, M5
- Alias #: AMPS-0-0130014-0 E75779-000
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 22 – 16
-
Wire Size (mm²): .26 – 1.64
-
Wire Size (CMA): 509 – 3260
-
Stud Size : M5
Documents
Product Drawings
- PLASTI-GRIP TERMINAL WIRE SIZE : 22-16 AWG ENG_CD_130014_G3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_130014_M.pdf 3D
- Customer View Model ENG_CVM_CVM_130014_M.2d_dxf.zip English
- ENG_CVM_CVM_130014_M.3d_igs.zip English
- ENG_CVM_CVM_130014_M.3d_stp.zip English
Datasheets & Catalog Pages
- PLASTI GRIP_QRG ENG_CS_6-1773465-8_0918.pdf English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-8787_B.pdf English
Agency Approvals
- UL ENG_AAD_UL_E13288_19730713_A.pdf English
- UL Report ENG_AAD_UL_CERT_E13288_19730713_C1_B2.pdf English
