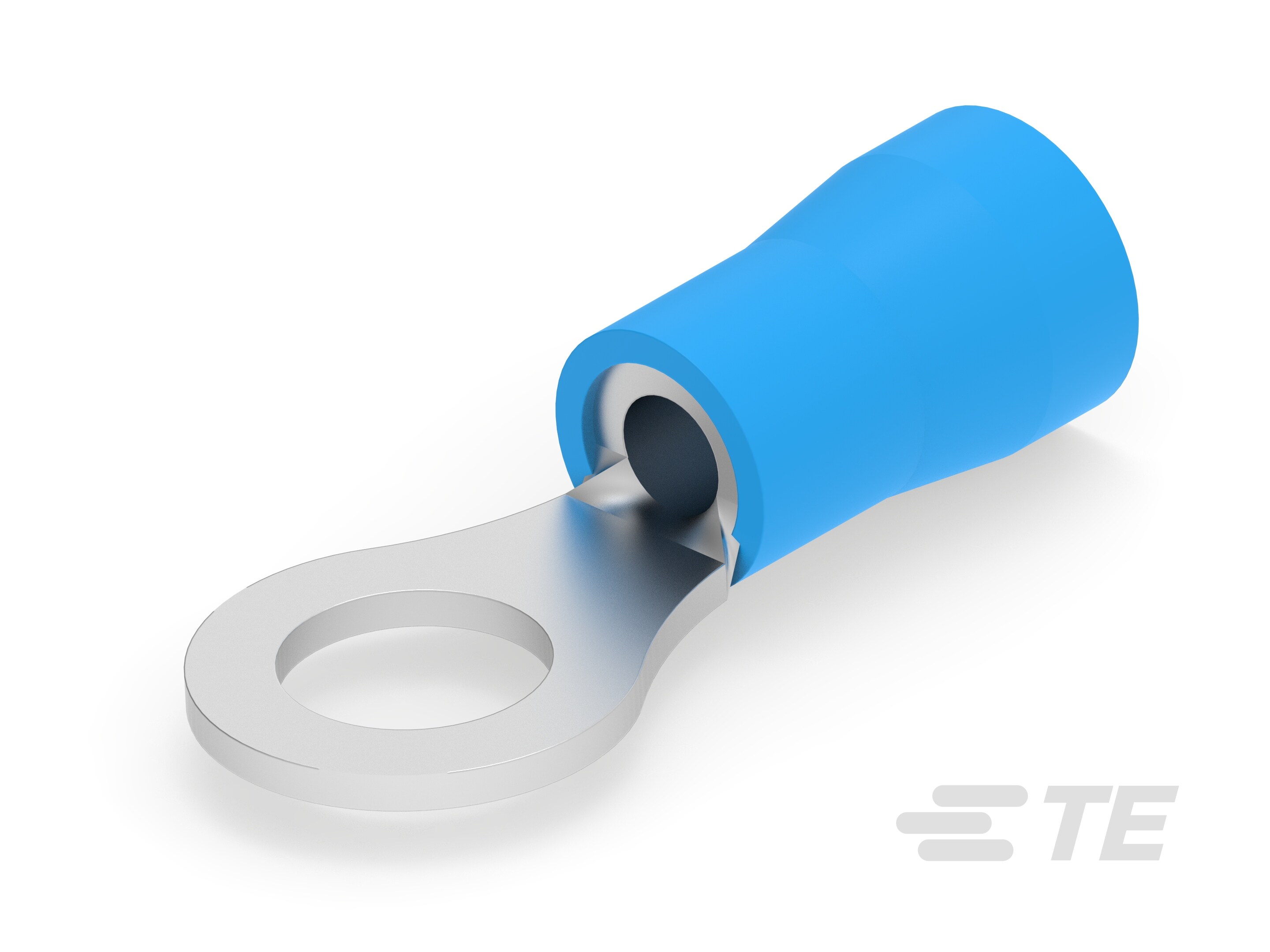

Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
130102
Closed Ring Tongue Terminal, 16 – 14 AWG, M5 Stud, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 130102
- TE Internal Description: TERMINAL PLAS-GRP RNG-TNG 5MM
- Alias #: 126404-000 SIML-0-0130102-0
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.25 – 2
-
Wire Size (CMA): 2050 – 5180
-
Stud Size : M5
Documents
Product Drawings
- TERMINAL, RING TONGUE, PLASTI-GRIP, WIRE SIZE: 16-14 AWG ENG_CD_130102_F.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_130102_D1.pdf English
- 3D_CVM_CVM_130102_R.pdf 3D
- Customer View Model ENG_CVM_CVM_130102_R.2d_dxf.zip English
- ENG_CVM_CVM_130102_R.3d_igs.zip English
- ENG_CVM_CVM_130102_R.3d_stp.zip English
- ENG_CVM_130102_D1.2d_dxf.zip English
- ENG_CVM_130102_D1.3d_igs.zip English
- ENG_CVM_130102_D1.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-8787_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E13288_19730713_C1_B1.pdf English
- UL ENG_AAD_UL_E13288_19730713_A.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6223_1693113_A.pdf English
