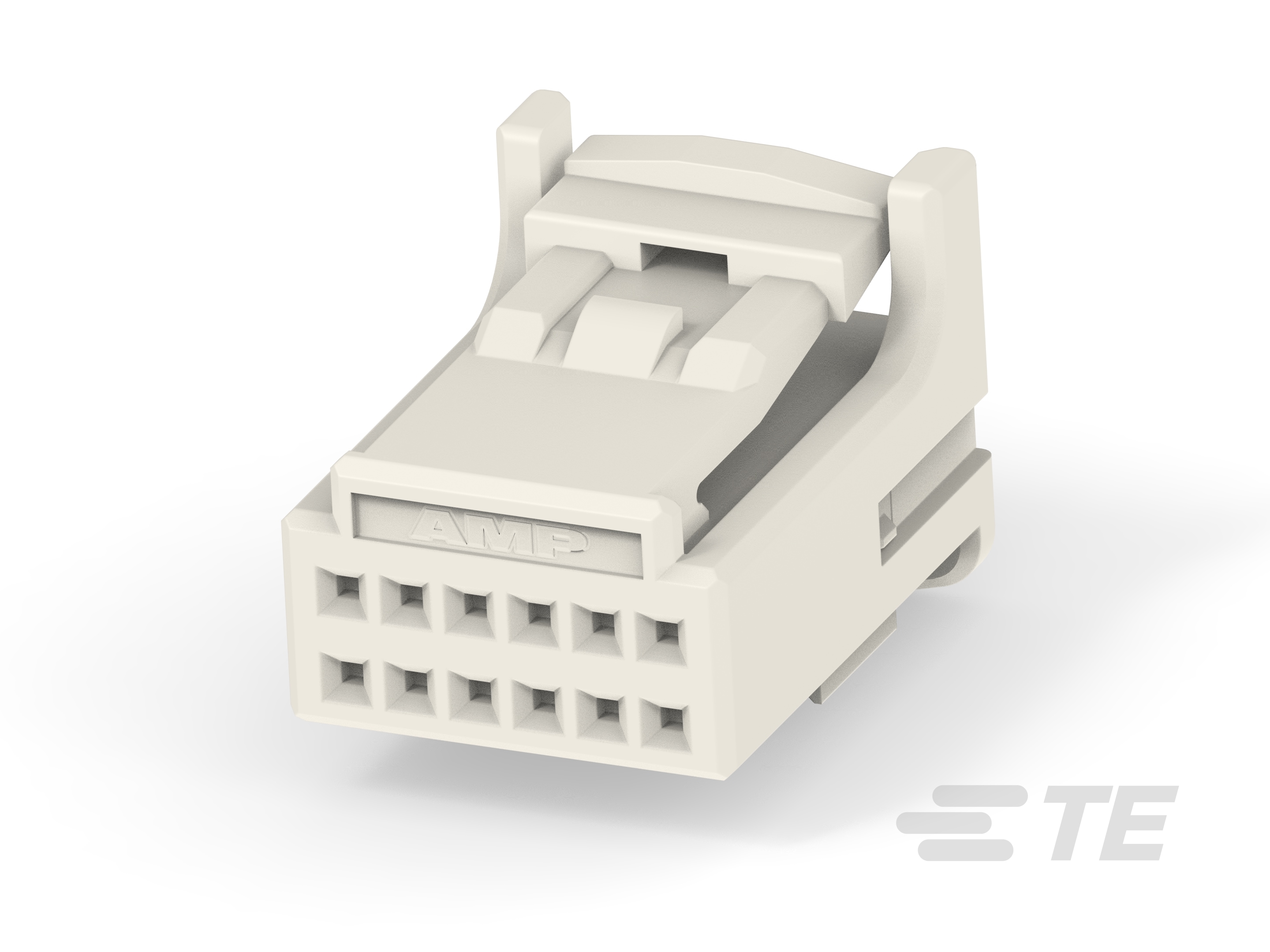

Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 12 Position, 2.2 mm [.087 in] Centerline, 0.64/025 Connector System
1318774-1
Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 12 Position, 2.2 mm [.087 in] Centerline, 0.64/025 Connector System
-
- AMP
- 0.64/025 Connector System
- TE Internal #: 1318774-1
- TE Internal Description: 025 ECU PLUG HSG ASSY 12P
- All TH/.025 CONNECTOR SYSTEM, HOUSING (177)
-
Packaging Method : Bag
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
-
Primary Product Color : Natural
-
Product Width : 15.4 mm [ .606 in ]
-
Connector & Contact Terminates To : Wire & Cable
Documents
Product Drawings
- 025 SERIES 12 POSITION PLUG HOUSING ASSEMBLY JPN_CD_1318774_C3.pdf Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1318774-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1318774-1_B.2d_dxf.zip English
- ENG_CVM_CVM_1318774-1_B.3d_igs.zip English
- ENG_CVM_CVM_1318774-1_B.3d_stp.zip English
Product Specifications
- Application Specification JPN_SS_114-5250_C1.tif Japanese
- JPN_SS_114-5250_C1.pdf Japanese
- JPN_SS_114-5291_A3.pdf Japanese
- Product Specification JPN_SS_108-5668_H8.pdf Japanese
- JPN_SS_108-5668-1_H6.pdf Japanese
- JPN_SS_108-5787_C.tif Japanese
- JPN_SS_108-5787_C.pdf Japanese
- JPN_SS_108-5787-1_C.tif Japanese
- JPN_SS_108-5787-1_C.pdf Japanese
- JPN_SS_108-140151_A1.pdf Japanese
- Qualification Test Report ENG_SS_501-5372_A6.pdf English
- JPN_SS_501-5409_A.pdf Japanese
- JPN_SS_501-5409_A.tif Japanese
Instruction Sheets
- Instruction Sheet (non U.S.) ENG_SS_411-5928_G5.pdf English
- JPN_SS_411-5928-1_G5.pdf Japanese
- JPN_SS_411-78011_A.tif Japanese
- JPN_SS_411-78011_A.pdf Japanese
- JPN_SS_411-78011-1_A.tif Japanese
- JPN_SS_411-78011-1_A.pdf Japanese
