View products below to see detailed pricing

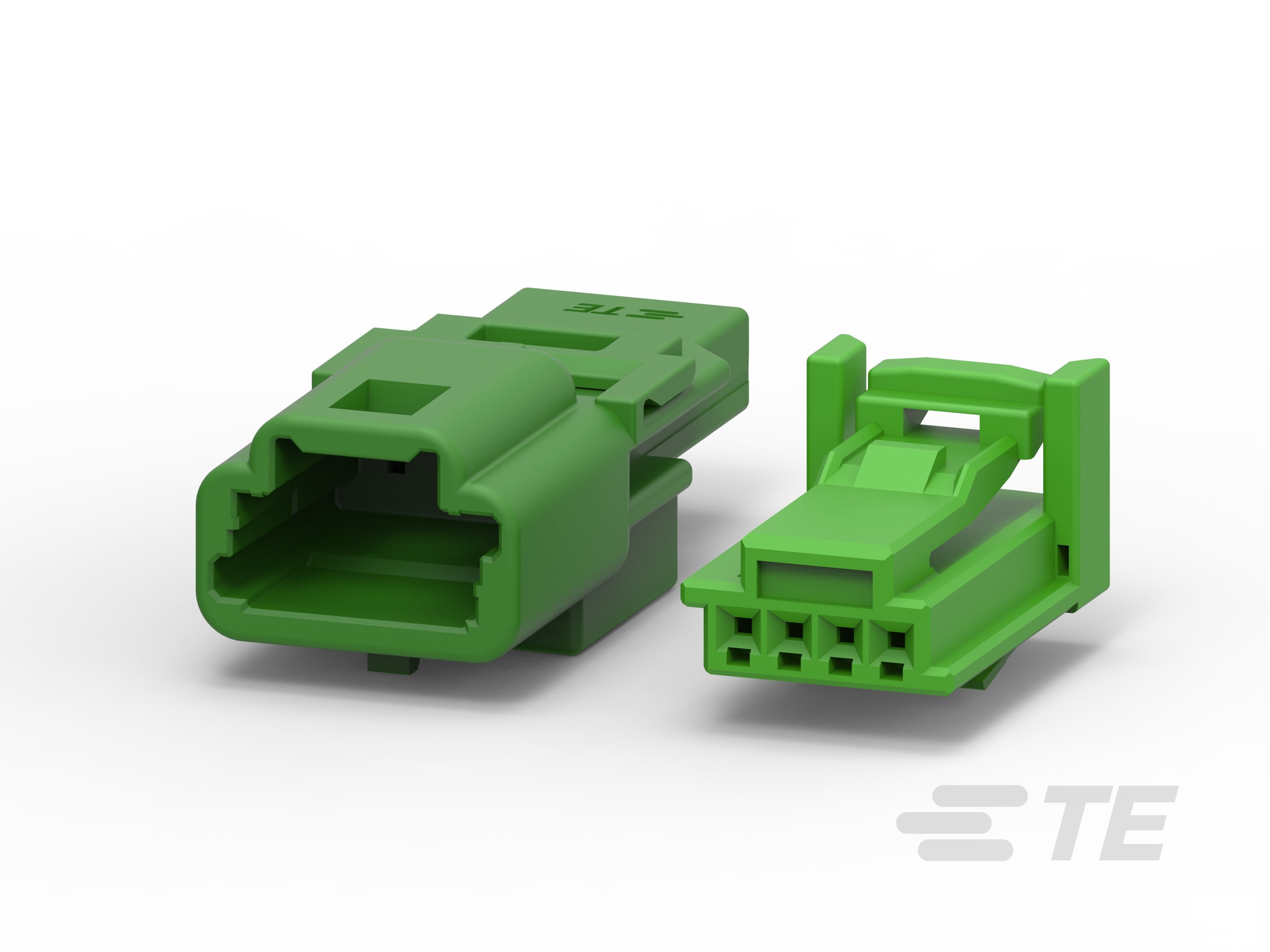

TH/.025 CONNECTOR SYSTEM, HOUSING

Digital Datasheet|

Product Features

Connector System : Wire-to-Wire, Wire-to-Device, Wire-to-Board
Number of Positions : 12, 3, 8, 10, 40, 2, 30, 31, 35, 26, 60, 4, 32, 44, 6, 25, 16, 14, 34, 20, 126, 102, 33, 7, 41, 24, 28, 89
Connector & Housing Type : Housing for Male Terminals, Housing for Female Terminals
Centerline (Pitch) (mm): 2.6, 5, 12.5, 2.5, 2, 3.8, 2.8, 3.29, 3.2, 6.4, 6.6, 4, 2.54, 8.6, 2.2, 3, 4.8
Centerline (Pitch) (in): .1, .118, .26, .197, .11, .09, .098, .157, .252, .189, .087, .126, .492, .129, .08, .15, .079, .086, .102, .339, .19, .87, .14
Sealable : No, Yes

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Sealable	Mating Tab Width	Number of Rows	Primary Product Color	Connector & Contact Terminates To	Contact Current Rating (Max)	Circuit Application	Operating Temperature (Max)	Nominal Voltage Architecture	Connector Position Assurance Capable	Primary Locking Feature	Connector & Keying Code	Operating Temperature Range	EU RoHS Compliance
24W PLUG HSG ASSY grey	1379668-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	24	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Gray	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
28POS,ML .025,REC HSG ASSY	2237069-1	Product Drawing 3D PDF	Wire-to-Wire	28	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	105 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
4W TAB HSG CODING 1 NATURAL	1-1379674-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	-	1	Natural	Wire & Cable	7.5 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	1	-40 – 100 °C	Compliant
025 IDC PLUG ASSY 8P	1318690-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	80 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 80 °C	Compliant
025/090 ECU PLUG HSG ASSY 30P	1318758-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	30	Housing for Female Terminals	2.2 mm	No	2.3 mm, .64 mm	4	Black	Wire & Cable	-	Signal	-	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
16W TAB HSG ASSY GRAY	1379678-2	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Gray	Wire & Cable	7.5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
12W TAB HSG ASSY BLUE	1379675-3	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Blue	-	-	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	3	-40 – 100 °C	-
0.64/2.3 SERIES 20POS.PLUG HOUSING ASSY	1939605-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	20	Housing for Female Terminals	3.8 mm, 2.8 mm	No	2.3 mm, .64 mm	2	Black	Wire & Cable	-	Signal	105 °C	12 V	No	Integrated in Housing	-	-40 – 105 °C	Compliant
0.64III/2.3II 24POS PLUG ASSY	1746864-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	24	Housing for Female Terminals	2.2 mm	No	2.3 mm, .64 mm	3	Gray	Wire & Cable	-	Signal	105 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
025 PLUG HSG 6P LIGHT SENSOR	1318305-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	6	Housing for Female Terminals	2.5 mm	No	.64 mm	3	Black	-	-	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
025 JOINT 30P ASSY GRY	2005499-3	Product Drawing 3D PDF	Wire-to-Wire	30	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Gray	Wire & Cable	-	Signal	-	-	No	-	-	-	Compliant
40W PLUG HSG ASSY GREEN	1379671-4	Product Drawing 3D PDF	Wire-to-Wire	40	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Green	Wire & Cable	7.5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	4	-40 – 100 °C	Compliant
SEALED 0.64/2.3II 89 POS PLUG ASSY	1612275-4	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	89	Housing for Female Terminals	3 mm, 5 mm	Yes	2.3 mm, .64 mm	4, 6	Black	-	-	Signal	130 °C, 80 °C, 125 °C, 105 °C, 100 °C, 90 °C, 85 °C, 70 °C, 140 °C, 110 °C, 120 °C	12 V	No	Integrated in Housing	-	-40 – 140 °C	Compliant
0.64 III/1.0 III 35POS PLUG ASSY (B)	1674928-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	35	Housing for Female Terminals	2.2 mm, 3.2 mm	No	1 mm, .64 mm	2, 4, 3	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
8p Hybrid 0.64/2.8 Unsealed Plug Assy	1456471-4	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	8	Housing for Female Terminals	2.54 mm	No	2.8 mm, .64 mm	2	Gray	-	-	Signal	-	-	No	Integrated in Housing	D	-	Compliant
025G 24POS CAP ASSY W-W	1473413-2	Product Drawing 3D PDF	Wire-to-Wire	24	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	105 °C	-	No	On the Terminal	-	-30 – 105 °C	Compliant
025 JOINT 30P ASSY BRN	2005499-4	Product Drawing 3D PDF	Wire-to-Wire	30	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Brown	Wire & Cable	-	Signal	-	-	No	Integrated in Housing	Neutral	-	Compliant
025 40P PLUG ASSY	1318389-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	40	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Black	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
12W PLUG HSG ASSY GRAY	1379662-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	12	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Gray	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
16W PLUG HSG ASSY GRAY	1379665-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	16	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Gray	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
0.64 III/1.0 III 33POS PLUG ASSY	1827617-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	33	Housing for Female Terminals	-	No	1 mm, .64 mm	4, 3	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
P-LANG TH 12W GRS	1379675-2	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Gray	Wire & Cable	7.5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
0.64II 4P 1ROW PLUG HOUSING KEY1	2237126-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	4	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	105 °C	12 V	No	Integrated in Housing	1	-40 – 105 °C	Compliant
4W TAB HSG CODING 3 BLUE	1379674-3	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	.64 mm	1	Blue	Wire & Cable	7.5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	3	-40 – 100 °C	Compliant
025 28POS CAP ASSY W TO W	1565377-1	Product Drawing 3D PDF	Wire-to-Wire	28	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C	12 V	No	On the Terminal	-	-30 – 80 °C	Compliant
025 8POS PLUG ASSY	1376352-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
0.64III/2.3II 30POS PLUG ASSY	1746865-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	30	Housing for Female Terminals	2.2 mm	No	2.3 mm, .64 mm	2, 3	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
0.64II 4P 1ROW PLUG HOUSING KEY2	2237126-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	4	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Gray	-	-	Signal	105 °C	12 V	No	Integrated in Housing	2	-40 – 105 °C	Compliant
24W TAB HSG ASSY GRAY	1379681-2	Product Drawing 3D PDF	Wire-to-Wire	24	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Gray	Wire & Cable	7.5 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
025/060/110 HYB 25P PLUG ASSY	2109520-1	Product Drawing 3D PDF	Wire-to-Wire	25	Housing for Female Terminals	2.5 mm	No	.64 mm	3	Natural	Wire & Cable	-	Signal	-	-	No	Integrated in Housing	-	-	Compliant
0.64III 8P 1ROW PLUG CONNECTOR	2237147-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	8	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Black	-	-	Signal	105 °C	12 V	No	Integrated in Housing	-	-40 – 105 °C	Compliant
0.64III 12POS PLUG ASSY	1747375-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	12	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
025/060/110 HYB 30P CAP ASSY RED	2188394-6	Product Drawing 3D PDF	Wire-to-Wire	30	Housing for Male Terminals	3.29 mm, 2.5 mm	No	-	3	Red	Wire & Cable	-	-	-	-	No	On the Terminal	-	-	Compliant
025 JOINT BLOCK 60P PLUG ASSY NAT	2005402-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	60	Housing for Female Terminals	2.2 mm	No	.64 mm	3	Natural	-	-	Signal	80 °C, 75 °C, 70 °C	-	No	On the Terminal	-	-40 – 80 °C	Compliant
025 JOINT 14P ASSY GRY	2005496-3	Product Drawing 3D PDF	-	14	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Gray	Wire & Cable	-	Power & Signal	-	-	No	Integrated in Housing	-	-	Compliant
8W PLUG HOUSING ASSY GREEN Buy on te.com	1379659-4	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Green	Wire & Cable	4 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	4	-40 – 100 °C	Compliant
40W PLUG HSG ASSY BLUE Buy on te.com	1379671-3	Product Drawing 3D PDF	Wire-to-Wire	40	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Blue	Wire & Cable	5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	3	-40 – 100 °C	Compliant
025 32P CAP ASSY	2005091-1	Product Drawing 3D PDF	Wire-to-Wire	32	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	80 °C	12 V	No	On the Terminal	Neutral	-40 – 80 °C	Compliant
0.64 III 16P PLUG ASSEMBLY	2237049-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
4W TAB HSG CODING 4 GREEN	1379674-4	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	.64 mm	1	Green	Wire & Cable	7.5 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	4	-40 – 100 °C	Compliant
0.64 III/2.3 II 26POS PLUG ASSY	1674932-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	26	Housing for Female Terminals	2.2 mm, 4 mm	No	2.3 mm, .64 mm	-	Black	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
SEALED EFI ECU 0.64/2.3II 126POS PLUG AS	1747137-3	Product Drawing 3D PDF	Wire-to-Board	126	Housing for Female Terminals	3 mm, 5 mm	Yes	2.3 mm, .64 mm	6	Black	Wire & Cable	-	Signal	140 °C	-	No	Integrated in Housing	-	-40 – 140 °C	Compliant
4W RCPT HSG CODING 3 BLUE	1379658-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	4	Housing for Female Terminals	2.2 mm	No	.63 mm	1	Blue	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	3	-40 – 100 °C	Compliant
12W TAB HSG ASSY NATURAL Buy on te.com	1379675-5	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	7.5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	Neutral	-40 – 100 °C	Compliant
8W PLUG HOUSING ASSY PURPLE,CONN KIT	1379659-7	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Purple	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	7	-40 – 100 °C	Compliant
SEALED EFI ECU 0.64/2.3II 89POS PLUG ASS	1747137-4	Product Drawing 3D PDF	Wire-to-Board	126	Housing for Female Terminals	3 mm, 5 mm	Yes	2.3 mm, .64 mm	6	Black	Wire & Cable	-	Signal	140 °C	-	No	Integrated in Housing	-	-40 – 140 °C	Compliant
025 JOINT 30P ASSY BLUE	2005499-8	Product Drawing 3D PDF	Wire-to-Wire	30	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Blue	Wire & Cable	-	Signal	-	-	No	-	-	-	Compliant
025 WW 12P PLUG ASSY BLACK	936348-2	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Black	-	-	Signal	80 °C, 75 °C, 70 °C	-	No	On the Terminal	-	-40 – 80 °C	Compliant
40W PLUG HSG ASSY NATURAL	1379671-5	Product Drawing 3D PDF	Wire-to-Wire	40	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	7.5 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	Neutral	-40 – 100 °C	Compliant
0.64III 8POS PLUG ASSY 1ROW BLACK	1746875-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	8	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Black	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
025/060/250 HYB LIF 41P PLUG A	2109193-1	Product Drawing 3D PDF	Wire-to-Wire	41	Housing for Female Terminals	-	No	.64 mm	5	Natural	-	-	Signal	80 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-40 – 80 °C	Compliant
12W TAB HSG ASSY GREEN	1379675-4	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Green	-	-	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	4	-40 – 100 °C	-
025 2POS PLUG HSG	1473143-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	2	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
025 40P PLUG ASSY NAT	2005094-1	Product Drawing 3D PDF	Wire-to-Wire	40	-	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	-	-	No	-	-	-	Compliant
.025 LIGHT SENSOR PLUG 6P BLUE	1318305-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	6	Housing for Female Terminals	2.5 mm	No	.64 mm	3	Blue	-	-	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
4W RCPT HSG CODING 4 GREEN	1379658-4	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	4	Housing for Female Terminals	2.2 mm	No	.63 mm	1	Green	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	4	-40 – 100 °C	Compliant
0.64 III 12 POS PLUG ASSY GRAY	1717106-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	12	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Gray	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
025 JOINT 30P ASSY NAT	2005499-1	Product Drawing 3D PDF	Wire-to-Wire	30	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	-	-	No	-	-	-	Compliant
025 32P PLUG ASSY	2005088-1	Product Drawing 3D PDF	Wire-to-Wire	32	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	-	-	No	Integrated in Housing	Neutral	-	Compliant
0.64III/2.3II 26POS PLUG ASSY	1746863-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	26	Housing for Female Terminals	2.2 mm	No	2.3 mm, .64 mm	3	Black	Wire & Cable	-	Signal	105 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
0.64III I/O 4P CONNECTOR PLUG HOUSING B	1746911-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	4	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Black	-	-	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 100 °C	Compliant
8W PLUG HOUSING ASSY RED,CONN KIT	1379659-6	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Red	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	6	-40 – 100 °C	Compliant
12W PLUG HSG ASSY NATURAL	1379662-5	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	12	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Natural	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	Neutral	-40 – 100 °C	Compliant
025/060/110 HYB 102P PLUG ASSY	2109278-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	102	Housing for Female Terminals	2.5 mm	No	.64 mm	-	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C, 110 °C, 120 °C	12 V	No	On the Terminal	-	-40 – 120 °C	Compliant
4W TAB HSG CODING 2 GRAY Buy on te.com	1379674-2	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	.64 mm	1	Gray	Wire & Cable	7.5 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
4W RCPT HSG CODING 2 GRAY Buy on te.com	1379658-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	4	Housing for Female Terminals	2.2 mm	No	.63 mm	1	Gray	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
025 PLUG HSG ASSY S/BODY 12P	1376675-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	12	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 G 16POS CAP ASSY W TO W Buy on te.com	1473410-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
CLEAN BODY 025 CONNECTOR 2POSI	1473845-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	2	Housing for Female Terminals	-	Yes	.64 mm	2	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	Integrated in Housing	-	-30 – 105 °C	Compliant
025 I/O PLUG HSG ASSY 8P	1376352-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	105 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 G 8POS CAP ASSY W TO W	1565804-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
8W PLUG HOUSING ASSY GRAY	1379659-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	8	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Gray	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	2	-40 – 100 °C	Compliant
025/040 SEALED 44POS PLUG ASSY	1717138-6	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	44	Housing for Female Terminals	3 mm, 12.5 mm, 2.5 mm	Yes	1 mm, .64 mm	4, 5	White	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C, 110 °C, 120 °C	12 V	No	Integrated in Housing	-	-40 – 120 °C	Compliant
025 ECU PLUG HSG ASSY 32P	1318747-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	32	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	105 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025G 12POS CAP ASSY W-W	1473407-2	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 IDC 8POS CAP ASSY W TO W	1473793-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	80 °C	12 V	No	On the Terminal	-	-30 – 80 °C	Compliant
025 ECU PLUG HSG ASSY 16P	1318386-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	16	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	105 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
4W RCPT HSG CODING 1 BLAC Buy on te.com	1379658-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	4	Housing for Female Terminals	2.2 mm	No	.63 mm	1	Black	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	1	-40 – 100 °C	Compliant
4W TAB HSG CODING 1 BLACK Buy on te.com	1379674-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	.64 mm	1	Black	Wire & Cable	7.5 A	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	14 V	No	On the Terminal	1	-40 – 100 °C	Compliant
025/040 ECU PLUG HSG ASSY 32P	1123339-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	32	Housing for Female Terminals	2.2 mm, 3.2 mm	No	1 mm, .64 mm	2, 1, 4, 3	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	-	-	-30 – 105 °C	Compliant
025/040 ECU PLUG HSG ASSY 35P Buy on te.com	1123340-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	35	Housing for Female Terminals	2.2 mm, 3.2 mm, 6.4 mm	No	1 mm, .64 mm	2, 1, 4, 3	Natural	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	-	-	-30 – 105 °C	Compliant
025/040 ECU PLUG HSG ASSY 35P Buy on te.com	1123338-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	35	Housing for Female Terminals	2.2 mm, 3.2 mm, 6.4 mm, 6.6 mm	No	1 mm, .64 mm	2, 1, 4, 3	Natural	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	-	-	-30 – 105 °C	Compliant
025/040 ECU PLUG HSG ASSY 31P Buy on te.com	1123341-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	31	Housing for Female Terminals	2.2 mm, 3.2 mm	No	1 mm, .64 mm	2, 1, 4, 3	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	-	-	-30 – 105 °C	Compliant
025 PLUG HSG 2P	1473143-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	2	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Black	-	-	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
SEALED 0.64/2.3II 126POS PLUG	1612275-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	126	Housing for Female Terminals	3 mm, 5 mm	Yes	2.3 mm, .64 mm	4, 6	Black	-	-	Signal	130 °C, 80 °C, 125 °C, 105 °C, 100 °C, 90 °C, 85 °C, 70 °C, 140 °C, 110 °C, 120 °C	12 V	No	Integrated in Housing	-	-40 – 140 °C	Compliant
025 12POS CAP ASSY W TO W	1565894-1	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	80 °C	12 V	No	On the Terminal	-	-30 – 80 °C	Compliant
025 G 4POS CAP W TO W Buy on te.com	1612035-2	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 G 4POS CAP W TO W Buy on te.com	1612035-1	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 28POS PLUG ASSY	1565380-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	28	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	105 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 I/O PLUG HSG 8P Buy on te.com	1376368-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	8	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
12W PLUG HSG ASSY BLACK	1379662-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	12	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Black	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	1	-40 – 100 °C	Compliant
025 PLUG ASSY Buy on te.com	1473672-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	4	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Gray	-	-	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
025 G 8POS CAP ASSY W TO W	1565804-2	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	105 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 G W-W CONN. 32POS CAP HSG	1612268-1	Product Drawing 3D PDF	Wire-to-Wire	32	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	Wire & Cable	-	Signal	105 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025 PLUG ASSY	1473672-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	4	Housing for Female Terminals	2.2 mm	No	.64 mm	1	Natural	-	-	Signal	80 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 100 °C	Compliant
025 IDC 16POS CAP ASSY W TO W	1473796-1	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 80 °C	Compliant
025 ECU PLUG HSG ASSY 24P BLA Buy on te.com	1318917-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	24	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Black	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
025/040 ECU PLUG HSG ASSY 34P	1123337-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	34	Housing for Female Terminals	2.2 mm, 3.2 mm, 6.6 mm	No	1 mm, .64 mm	2, 1, 4, 3	Natural	-	-	Signal	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 75 °C, 70 °C	12 V	No	-	-	-30 – 105 °C	Compliant
025 ECU PLUG HSG ASSY 40P Buy on te.com	1318389-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device, Wire-to-Wire	40	Housing for Female Terminals	2.2 mm	No	.64 mm	2	Natural	-	-	Signal	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V	No	On the Terminal	-	-30 – 105 °C	Compliant
24W PLUG HSG ASSY BLACK	1379668-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	24	Housing for Female Terminals	2.2 mm	No	.63 mm	2	Black	Wire & Cable	4 A	Signal	80 °C, 100 °C, 90 °C, 85 °C, 75 °C, 70 °C	12 V, 14 V	No	On the Terminal	1	-40 – 100 °C	Compliant

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector System Wire-to-Wire, Wire-to-Device, Wire-to-Board
Connector & Housing Type Housing for Male Terminals, Housing for Female Terminals
Sealable No, Yes
Connector & Contact Terminates To Wire & Cable
Primary Locking Feature Locking Lance, Integrated in Housing, On the Terminal
Connector Shape Rectangular
Mixed & Hybrid Connector No, Yes

Configuration Features

Number of Positions 12, 3, 8, 10, 40, 2, 30, 31, 35, 26, 60, 4, 32, 44, 6, 25, 16, 14, 34, 20, 126, 102, 33, 7, 41, 24, 28, 89
Number of Rows 1, 6, 5, 3, 4, 2
Blank Cavity Position 3, 13, 37, 32, 40, 29, 42, 16, 38, 7, 5

Housing Features

Centerline (Pitch) (mm) 2.6, 5, 12.5, 2.5, 2, 3.8, 2.8, 3.29, 3.2, 6.4, 6.6, 4, 2.54, 8.6, 2.2, 3, 4.8
Centerline (Pitch) (in) .1, .118, .26, .197, .11, .09, .098, .157, .252, .189, .087, .126, .492, .129, .08, .15, .079, .086, .102, .339, .19, .87, .14
Housing Material PBT, PBT GF, PA GF

Contact Features

Mating Tab Width (mm) 1, .63, .64, 2.8, 2.3
Mating Tab Width (in) .11, .09, .04, .025, .024
Contact Current Rating (Max) (A) 7.5, 4, 5
Contact Type Tab, Receptacle
Contact Size 2.3mm, .64mm, 1mm, 1.5mm, 6.35mm, .63mm, 2.8mm

Body Features

Primary Product Color Purple, White, Red, Black, Green, Blue, Gray, Brown, Natural
Connector & Keying Code D, 7, 4, Neutral, 1, 3, 2, A, 6, B
Cable Exit Angle 90°, 180°

Operation/Application

Circuit Application Signal, Power & Signal

Mechanical Attachment

Connector Mounting Type Cable Mount (Free-Hanging)
Terminal Position Assurance Yes, No
Mating Alignment Type Polarized, Polarizing Slot, Keyed
Strain Relief Without
Mating Alignment With

Usage Conditions

Operating Temperature (Max) (°C) 140, 120, 85, 90, 75, 130, 80, 105, 125, 110, 70, 100
Operating Temperature (Max) (°F) 212, 266, 248, 230, 257, 158, 221, 185, 176, 284, 194, 167
Operating Temperature Range (°C) -30 – 105, -40 – 80, -30 – 80, -40 – 140, -30 – 100, -40 – 85, -40 – 100, -40 – 105, -40 – 120
Operating Temperature Range (°F) -30 – 221, -40 – 284, -40 – 221, -40 – 185, -40 – 212, -40 – 176, -22 – 221, -22 – 176, -22 – 212, -40 – 248

Electrical Characteristics

Nominal Voltage Architecture (V) 12, 13, 14
Operating Voltage (VDC) 14, 13, 12

Other

Connector Position Assurance Capable No
EU RoHS Compliance Compliant
EU ELV Compliance Compliant
Serviceable Yes, No

Dimensions

Product Width (mm) 21.8, 31.8, 33.4, 11.8, 113.6, 14.2, 13, 19, 23, 36.2, 31.7, 13.5, 9.5, 28.8, 51.6, 39.2, 11, 37.4, 8.6, 33, 27.4, 24.7, 46.2, 29, 22, 46.7, 19.8, 27.7, 36, 21, 70.5, 28.6, 14.8, 26.6, 18.6, 15.8, 24, 24.4, 36.5, 24.2, 39.3, 35, 33.9, 14, 12.6, 40.6, 26.8, 25, 15.4, 24.6
Product Width (in) .496, 1.472, 2.03, .465, .828, 1.54, .944, 1.079, 1.839, .969, 1.09, .78, .858, 1.42, .86, .583, 1.335, 1.134, .827, .433, .732, .512, .551, .748, .866, .606, 1.819, 4.472, 1.252, 1.33, 1.25, .374, 1.142, 2.778, .87, 1.055, 1.598, 1.3, .83, 1.437, .62, 1.248, .953, .339, .972, 1.126, .75, .622, 1.378, .984, .531, .961, 1.41, 1.547, 1.047, 1.315, 5.12, .559, .826, .51, .906
Connector Height (mm) 17.67, 41.6, 14.7, 9.2, 11, 20, 21, 19.8, 26.3, 11.81, 17.8, 15.4, 9, 23, 8.8, 10.05, 22.1, 11.35, 13.3, 12, 25, 15.1, 15.3, 24.5, 11.75, 10.5, 19, 27.2, 40.9, 13, 5.45, 3.85, 18.6, 17.9, 15.8, 12.15, 20.9, 10.7, 51.6
Connector Height (in) .7, .787, 1.07, .827, .463, .779, .622, .465, .579, .594, .57, .421, .62, .524, .478, .512, .354, 2.031, .602, .59, .83, .362, .37, .705, 1.61, .984, .6, .35, .826, .748, .965, .152, .396, .823, .433, .696, 1.638, .732, .447, .906, .82, .472, .701, .215, .87, .413, 1.035
Product Length (mm) 19, 26.3, 39.3, 19.8, 18.6, 19.3, 37.4, 46.7, 31.8, 20, 30.6, 18.5, 33.9, 22, 28.6, 37.6, 36, 40.6, 21.8, 29, 14.54, 14, 23, 13, 46.36, 15.4, 24.6, 35.2, 46.2, 26.8, 21, 21.42, 11.8, 33, 61.74, 17.4, 27.2, 113.5
Product Length (in) 1.38, 1.05, .787, 1.59, .827, 1.819, .748, .858, 1.12, 1.33, 1.84, .732, .866, 1.335, .465, 1.071, 2.431, 1.417, 1.48, .87, 4.46, .685, 1.126, .97, 1.386, .606, .83, .779, 1.03, 1.82, .843, 1.47, 1.142, .572, .512, 1.54, .906, .76, 1.2, 1.81, .551, 1.3, .728, 1.252
Row-to-Row Spacing (mm) 5.36, 5.6, 3, 4.2, 11.75, 3.75, 3.2, 5.75, .75, 7.8, 3.3, 4.5, 2.54, 4, 2, 5, 4.24, 6.3, 2.9, 3.65, 8.8, 3.8, 5.5, 5.9, 4.4
Row-to-Row Spacing (in) .167, .173, .463, .232, .149, .177, .11, .216, .248, .346, .079, .19, .129, .03, .07, .12, .226, .114, .148, .211, .125, .22, .157, .144, .165, .1, .307, .118, .126

Industry Standards

UL Flammability Rating No, UL 94HB

Packaging Features

Packaging Method Package, Box & Carton, Box, Bag & Box, Bag, Tray
Packaging Quantity 84, 24, 300, 16, 54, 800, 819, 35, 1000, 63, 700, 200, 100, 1100, 400, 600, 900, 500, 50

Reference Number

TE Internal Number CAT-T319-CH8172

Related Materials

No documentation available.

TH/.025 CONNECTOR SYSTEM, HOUSING

Product Features

Connector System : Wire-to-Wire, Wire-to-Device, Wire-to-Board

Number of Positions : 12, 3, 8, 10, 40, 2, 30, 31, 35, 26, 60, 4, 32, 44, 6, 25, 16, 14, 34, 20, 126, 102, 33, 7, 41, 24, 28, 89

Connector & Housing Type : Housing for Male Terminals, Housing for Female Terminals

Centerline (Pitch) (mm): 2.6, 5, 12.5, 2.5, 2, 3.8, 2.8, 3.29, 3.2, 6.4, 6.6, 4, 2.54, 8.6, 2.2, 3, 4.8

Centerline (Pitch) (in): .1, .118, .26, .197, .11, .09, .098, .157, .252, .189, .087, .126, .492, .129, .08, .15, .079, .086, .102, .339, .19, .87, .14

Sealable : No, Yes

Product Type Features

Connector System Wire-to-Wire, Wire-to-Device, Wire-to-Board

Connector & Housing Type Housing for Male Terminals, Housing for Female Terminals

Sealable No, Yes

Connector & Contact Terminates To Wire & Cable

Primary Locking Feature Locking Lance, Integrated in Housing, On the Terminal

Connector Shape Rectangular

Mixed & Hybrid Connector No, Yes

Configuration Features

Number of Positions 12, 3, 8, 10, 40, 2, 30, 31, 35, 26, 60, 4, 32, 44, 6, 25, 16, 14, 34, 20, 126, 102, 33, 7, 41, 24, 28, 89

Number of Rows 1, 6, 5, 3, 4, 2

Blank Cavity Position 3, 13, 37, 32, 40, 29, 42, 16, 38, 7, 5

Housing Features

Centerline (Pitch) (mm) 2.6, 5, 12.5, 2.5, 2, 3.8, 2.8, 3.29, 3.2, 6.4, 6.6, 4, 2.54, 8.6, 2.2, 3, 4.8

Centerline (Pitch) (in) .1, .118, .26, .197, .11, .09, .098, .157, .252, .189, .087, .126, .492, .129, .08, .15, .079, .086, .102, .339, .19, .87, .14

Housing Material PBT, PBT GF, PA GF

Contact Features

Mating Tab Width (mm) 1, .63, .64, 2.8, 2.3

Mating Tab Width (in) .11, .09, .04, .025, .024

Contact Current Rating (Max) (A) 7.5, 4, 5

Contact Type Tab, Receptacle

Contact Size 2.3mm, .64mm, 1mm, 1.5mm, 6.35mm, .63mm, 2.8mm

Body Features

Primary Product Color Purple, White, Red, Black, Green, Blue, Gray, Brown, Natural

Connector & Keying Code D, 7, 4, Neutral, 1, 3, 2, A, 6, B

Cable Exit Angle 90°, 180°

Operation/Application

Circuit Application Signal, Power & Signal

Mechanical Attachment

Connector Mounting Type Cable Mount (Free-Hanging)

Terminal Position Assurance Yes, No

Mating Alignment Type Polarized, Polarizing Slot, Keyed

Strain Relief Without

Mating Alignment With

Usage Conditions

Operating Temperature (Max) (°C) 140, 120, 85, 90, 75, 130, 80, 105, 125, 110, 70, 100

Operating Temperature (Max) (°F) 212, 266, 248, 230, 257, 158, 221, 185, 176, 284, 194, 167

Operating Temperature Range (°C) -30 – 105, -40 – 80, -30 – 80, -40 – 140, -30 – 100, -40 – 85, -40 – 100, -40 – 105, -40 – 120

Operating Temperature Range (°F) -30 – 221, -40 – 284, -40 – 221, -40 – 185, -40 – 212, -40 – 176, -22 – 221, -22 – 176, -22 – 212, -40 – 248

Electrical Characteristics

Nominal Voltage Architecture (V) 12, 13, 14

Operating Voltage (VDC) 14, 13, 12

Other

Connector Position Assurance Capable No

EU RoHS Compliance Compliant

EU ELV Compliance Compliant

Serviceable Yes, No

Dimensions

Product Width (mm) 21.8, 31.8, 33.4, 11.8, 113.6, 14.2, 13, 19, 23, 36.2, 31.7, 13.5, 9.5, 28.8, 51.6, 39.2, 11, 37.4, 8.6, 33, 27.4, 24.7, 46.2, 29, 22, 46.7, 19.8, 27.7, 36, 21, 70.5, 28.6, 14.8, 26.6, 18.6, 15.8, 24, 24.4, 36.5, 24.2, 39.3, 35, 33.9, 14, 12.6, 40.6, 26.8, 25, 15.4, 24.6

Connector Height (mm) 17.67, 41.6, 14.7, 9.2, 11, 20, 21, 19.8, 26.3, 11.81, 17.8, 15.4, 9, 23, 8.8, 10.05, 22.1, 11.35, 13.3, 12, 25, 15.1, 15.3, 24.5, 11.75, 10.5, 19, 27.2, 40.9, 13, 5.45, 3.85, 18.6, 17.9, 15.8, 12.15, 20.9, 10.7, 51.6

Connector Height (in) .7, .787, 1.07, .827, .463, .779, .622, .465, .579, .594, .57, .421, .62, .524, .478, .512, .354, 2.031, .602, .59, .83, .362, .37, .705, 1.61, .984, .6, .35, .826, .748, .965, .152, .396, .823, .433, .696, 1.638, .732, .447, .906, .82, .472, .701, .215, .87, .413, 1.035

Product Length (mm) 19, 26.3, 39.3, 19.8, 18.6, 19.3, 37.4, 46.7, 31.8, 20, 30.6, 18.5, 33.9, 22, 28.6, 37.6, 36, 40.6, 21.8, 29, 14.54, 14, 23, 13, 46.36, 15.4, 24.6, 35.2, 46.2, 26.8, 21, 21.42, 11.8, 33, 61.74, 17.4, 27.2, 113.5

Product Length (in) 1.38, 1.05, .787, 1.59, .827, 1.819, .748, .858, 1.12, 1.33, 1.84, .732, .866, 1.335, .465, 1.071, 2.431, 1.417, 1.48, .87, 4.46, .685, 1.126, .97, 1.386, .606, .83, .779, 1.03, 1.82, .843, 1.47, 1.142, .572, .512, 1.54, .906, .76, 1.2, 1.81, .551, 1.3, .728, 1.252

Row-to-Row Spacing (mm) 5.36, 5.6, 3, 4.2, 11.75, 3.75, 3.2, 5.75, .75, 7.8, 3.3, 4.5, 2.54, 4, 2, 5, 4.24, 6.3, 2.9, 3.65, 8.8, 3.8, 5.5, 5.9, 4.4

Row-to-Row Spacing (in) .167, .173, .463, .232, .149, .177, .11, .216, .248, .346, .079, .19, .129, .03, .07, .12, .226, .114, .148, .211, .125, .22, .157, .144, .165, .1, .307, .118, .126

Industry Standards

UL Flammability Rating No, UL 94HB

Packaging Features

Packaging Method Package, Box & Carton, Box, Bag & Box, Bag, Tray

Packaging Quantity 84, 24, 300, 16, 54, 800, 819, 35, 1000, 63, 700, 200, 100, 1100, 400, 600, 900, 500, 50

Reference Number

TE Internal Number CAT-T319-CH8172
