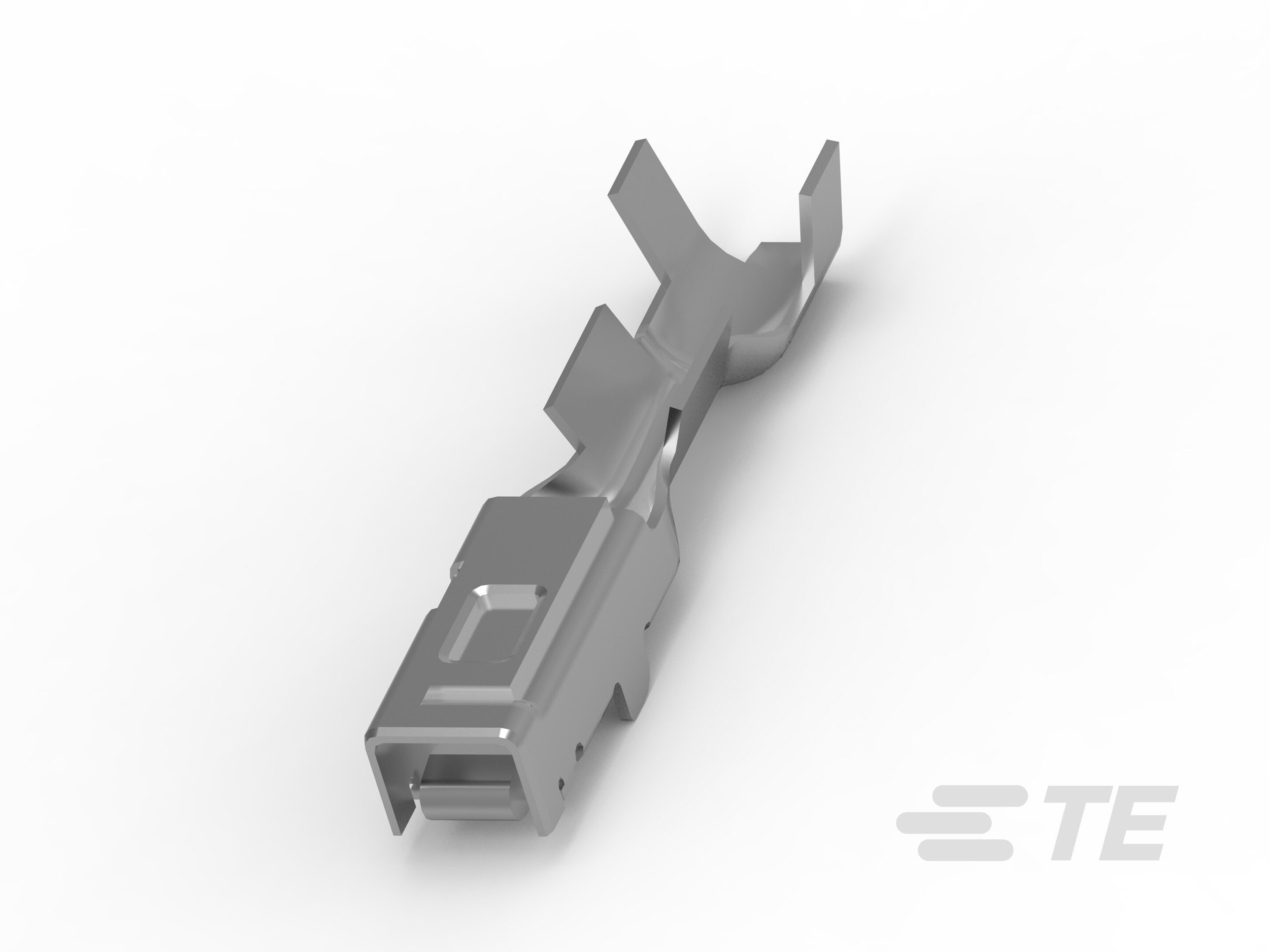

Receptacle Terminal, Tin (Sn), 2.8 mm [.11 in] Tab Width, .8 mm [.031 in] Tab Thickness, 20 AWG, .5 mm² Wire, Sealable, 1.5/2.8 Connector System
1326032-8
Receptacle Terminal, Tin (Sn), 2.8 mm [.11 in] Tab Width, .8 mm [.031 in] Tab Thickness, 20 AWG, .5 mm² Wire, Sealable, 1.5/2.8 Connector System
-
- AMP
- 1.5/2.8 Connector System
- TE Internal #: 1326032-8
- TE Internal Description: 2.8MM RECP,SEAL,20AWG,REV REEL
- All 1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB (37)
-
Terminal Type : Receptacle
-
Interface Plating : Tin (Sn)
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Mating Tab Thickness : .8 mm [ .031 in ]
-
Terminal Transmits : 0 – 24 A (Low Power)
Documents
Product Drawings
- 2.8mm RECEPTACLE, SEALED ENG_CD_1326032_E1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1326032-8_K.pdf 3D
- Customer View Model ENG_CVM_CVM_1326032-8_K.2d_dxf.zip English
- ENG_CVM_CVM_1326032-8_K.3d_igs.zip English
- ENG_CVM_CVM_1326032-8_K.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13013_F.pdf English
