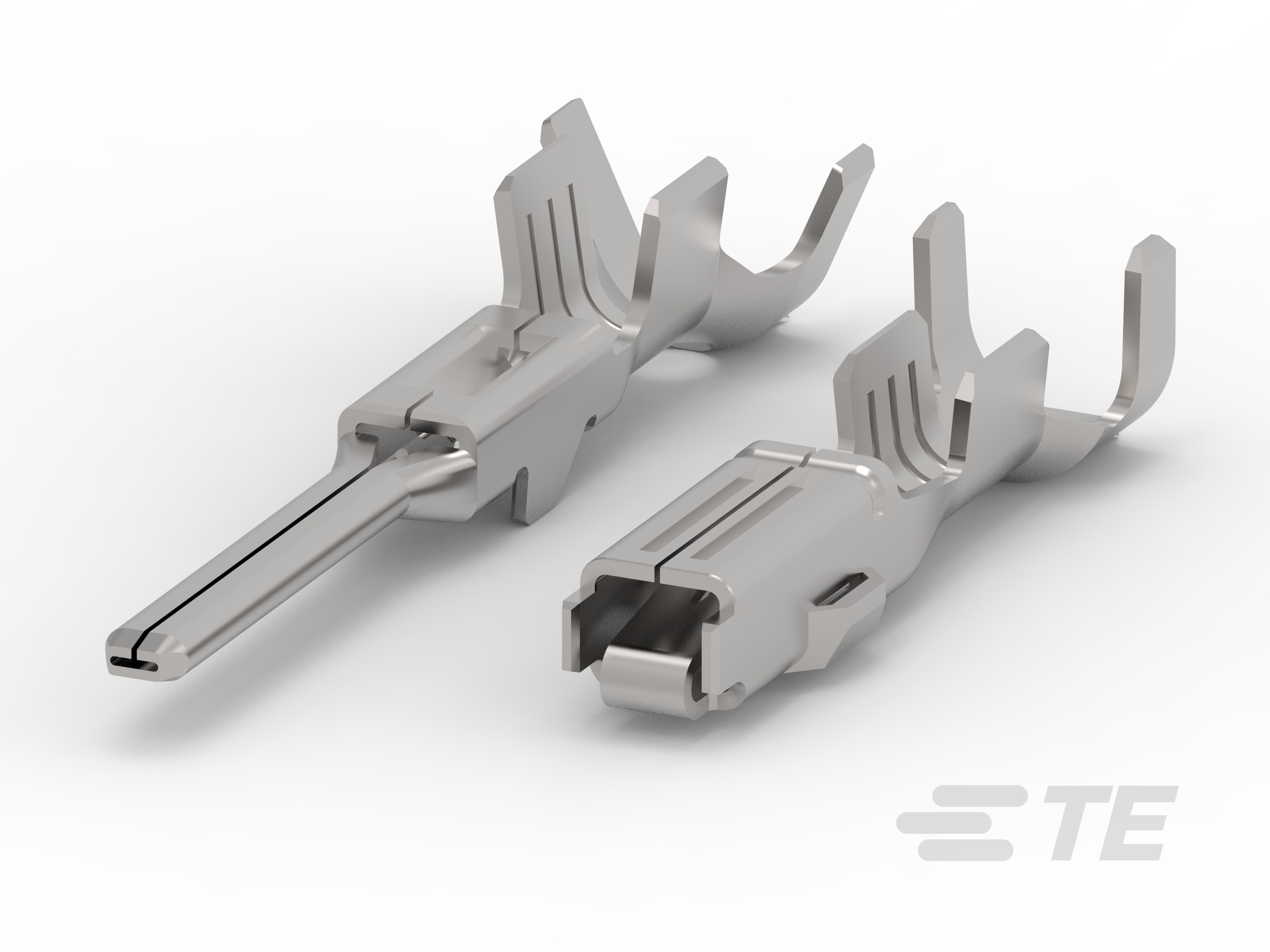

1.5/2.8 CONNECTOR SYSTEM, RECPT AND TAB

Digital Datasheet|

Product Features

Packaging Method : Package, Reel
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Termination Method to Wire & Cable : Crimp
Customer Preferred Contact : No, Yes
Operating Temperature (Max) (°C): 120, 100, 110, 90, 80, 125, 105, 85
Operating Temperature (Max) (°F): 212, 248, 185, 221, 230, 257, 194, 176

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Product Terminates To	Operating Temperature (Max)	Tab Length	Operating Temperature Range
2.8MM RECP,SEAL,20AWG,REV REEL	1326032-8	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 AWG	.5 mm²	Yes	Single Wire Seal (SWS)	.5 mm²	20 AWG	-	Wire	-	-	-
.110 TAB TERMINAL , PLAIN	1599182-1	Product Drawing 3D PDF	Tab	2.8 mm	.5 mm	0 – 24 A (Low Power)	20 – 15 AWG	.5 – 1.5 mm²	No	-	1 mm², 1.5 mm², 1.25 mm²	15 AWG, 16 AWG, 17 AWG	Locking Lance	Wire	-	20.5 mm	-
2.8MM BLD,SEAL,18AWG,REVREEL	1326031-8	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	18 AWG	.82 mm²	Yes	Single Wire Seal (SWS)	.75 mm²	18 AWG	-	Wire	-	-	-
2.8MM RECEPTACLE, UNSEALED, DU	1-1326030-1	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	-	-	No	-	-	-	Clean Body	Wire & Cable	-	19.75 mm	-
2.8MM RECP,SEAL,18AWG	1326032-3	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	18 AWG	.82 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	21.5 mm	-
RECEPT,1.5MM,TIN 14-16AWG RD=1	638652-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.8 mm	-	16 – 14 AWG	1.3 – 2 mm²	No	-	1.5 mm², 2 mm², 1.25 mm²	15 AWG, 14 AWG, 16 AWG	Clean Body	Wire	125 °C, 85 °C, 105 °C, 120 °C, 100 °C, 110 °C, 90 °C, 80 °C	-	-40 – 125 °C
RECEPT,1.5MM,TIN 18-20AWG RD=1	638652-2	Product Drawing 3D PDF	Receptacle	1.5 mm	.8 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .75 mm², .6 mm²	18 AWG, 19 AWG, 20 AWG	Clean Body	Wire	80 °C, 105 °C, 125 °C, 90 °C, 100 °C, 120 °C, 110 °C, 85 °C	-	-40 – 125 °C
2.8MM BLD,SEAL,16AWG	1326031-4	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	-	16 AWG	1.3 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	29 mm	-
2.8MM BLD,SEAL,12AWG	1-1326031-1	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	-	12 AWG	3.3 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	29 mm	-
2.8MM RECP,SEAL,16AWG,REV REEL	1-1326032-0	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	16 AWG	1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm²	16 AWG	-	Wire	-	-	-
2.8MM RECP,SEAL,14AWG,REV REEL	1-1326032-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	-	14 AWG	2 mm²	Yes	Single Wire Seal (SWS)	2 mm²	14 AWG	-	Wire	120 °C, 100 °C, 105 °C, 125 °C, 85 °C, 90 °C, 80 °C, 110 °C	-	-40 – 125 °C
2.8MM BLADE, UNSEALED,22AWG	1326029-1	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	22 AWG	.35 mm²	No	-	.35 mm²	22 AWG	Clean Body	Wire	100 °C, 90 °C, 85 °C, 80 °C, 105 °C, 110 °C, 125 °C, 120 °C	-	-40 – 125 °C
2.8MM BLADE, UNSEAL,18-20AWG	1326029-2	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.6 mm², .5 mm², .75 mm², 1 mm²	19 AWG, 18 AWG, 17 AWG, 20 AWG	Clean Body	Wire	100 °C, 90 °C, 85 °C, 80 °C, 105 °C, 110 °C, 125 °C, 120 °C	-	-40 – 125 °C
2.8MM BLADE, UNSEAL,14-16AWG	1326029-3	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	16 – 14 AWG	1.25 – 2 mm²	No	-	1.25 mm², 2 mm², 1.5 mm²	14 AWG, 16 AWG, 15 AWG	Clean Body	Wire	80 °C, 85 °C, 105 °C, 100 °C, 120 °C, 125 °C, 90 °C, 110 °C	-	-40 – 125 °C
2.8MM BLADE, UNSEAL,10-12AWG	1326029-4	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	25 – 40 A (Power)	12 AWG	3.3 mm²	No	-	3 mm²	12 AWG	Clean Body	Wire	125 °C, 90 °C, 85 °C, 80 °C, 105 °C, 100 °C, 110 °C, 120 °C	-	-40 – 125 °C
2.8MM RECP,UNSEAL,22AWG	1326030-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	22 AWG	.35 mm²	No	-	.35 mm²	22 AWG	-	Wire	110 °C, 85 °C, 80 °C, 90 °C, 105 °C, 100 °C, 125 °C, 120 °C	-	-40 – 125 °C
2.8MM RECP,UNSEAL,18-20AWG	1326030-2	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	18 – 20 AWG	.82 – .51 mm²	No	-	-	-	Clean Body	Wire & Cable	-	19.75 mm	-
2.8MM RECP,UNSEAL,14-16AWG	1326030-3	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	14 – 16 AWG	2.08 – 1.3 mm²	No	-	-	-	Clean Body	Wire & Cable	-	19.75 mm	-
2.8MM RECP,UNSEAL,10-12AWG	1326030-4	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	12 AWG	3 mm²	No	-	-	-	Clean Body	Wire & Cable	-	19.75 mm	-
2.8MM RECP,UNSEAL,22AWG,REVREE	1326030-5	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	-	Wire	80 °C, 110 °C, 85 °C, 105 °C, 100 °C, 125 °C, 120 °C, 90 °C	-	-40 – 125 °C
2.8MM RECP,UNSEAL,18-20,REVREE	1326030-6	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .9 mm²	No	-	.5 mm², .75 mm², .6 mm²	19 AWG, 18 AWG, 20 AWG	-	Wire	110 °C, 90 °C, 100 °C, 105 °C, 120 °C, 125 °C, 80 °C, 85 °C	-	-40 – 125 °C
2.8MM RECP,UNSEAL,14-16AWG,REV	1326030-7	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	16 – 14 AWG	1.25 – 2 mm²	No	-	1.5 mm², 1.25 mm², 2 mm²	15 AWG, 14 AWG, 16 AWG	-	Wire	110 °C, 80 °C, 90 °C, 85 °C, 105 °C, 100 °C, 125 °C, 120 °C	-	-40 – 125 °C
2.8MM RECP,UNSEAL,10-12AWG,REV	1326030-8	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	-	12 AWG	3.3 mm²	No	-	3 mm²	12 AWG	-	Wire	110 °C, 85 °C, 100 °C, 80 °C, 125 °C, 90 °C, 105 °C, 120 °C	-	-40 – 125 °C
2.8MM BLD,SEAL,16AWG,REVREEL	1326031-9	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	16 AWG	1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm²	16 AWG	-	Wire	-	-	-
2.8MM RECP,SEAL,22AWG	1326032-1	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	22 AWG	.35 mm²	Yes	Single Wire Seal (SWS)	.35 mm²	22 AWG	-	Wire	-	-	-
2.8MM RECP,SEAL,20AWG	1326032-2	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	20 AWG	.5 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	21.5 mm	-
2.8MM RECP,SEAL,12AWG	1326032-6	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	12 AWG	3 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	21.5 mm	-
2.8MM BLD,SEAL,14AWG,REV REEL	1-1326031-0	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	14 AWG	2 mm²	Yes	Single Wire Seal (SWS)	2 mm²	14 AWG	-	Wire	100 °C, 125 °C, 110 °C, 85 °C, 105 °C, 90 °C, 80 °C, 120 °C	-	-40 – 125 °C
2.8MM BLD,SEAL,12AWG, REV REEL	1-1326031-2	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	-	12 AWG	3.3 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	29 mm	-
2.8MM BLD,SEAL,22AWG	1326031-1	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	22 AWG	.35 mm²	Yes	Single Wire Seal (SWS)	.35 mm²	22 AWG	-	Wire	-	-	-
2.8MM BLD,SEAL,20AWG	1326031-2	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	-	20 AWG	.5 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	29 mm	-
2.8MM BLD,SEAL,14AWG	1326031-5	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	-	14 AWG	2 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	29 mm	-
2.8MM BLD,SEAL,20AWG,REVREEL	1326031-7	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.75 mm², .6 mm², .5 mm²	18 AWG, 19 AWG, 20 AWG	-	Wire	-	-	-
2.8MM RECP,SEAL,14AWG	1326032-5	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	14 AWG	2 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	21.5 mm	-
2.8MM RECP,SEAL,18AWG,REV REEL	1326032-9	Product Drawing 3D PDF	Receptacle	2.8 mm	.8 mm	0 – 24 A (Low Power)	18 AWG	.82 mm²	Yes	Single Wire Seal (SWS)	.75 mm²	18 AWG	-	Wire	-	-	-
2.8MM BLD,SEAL,18AWG	1326031-3	Product Drawing 3D PDF	Tab	2.8 mm	.8 mm	-	18 AWG	.82 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	29 mm	-
2.8MM RECP,SEAL,16AWG	1326032-4	Product Drawing 3D PDF	Receptacle	2.8 mm	-	-	16 AWG	1.3 mm²	Yes	-	-	-	Clean Body	Wire & Cable	-	21.5 mm	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Clean Body, Locking Lance
Sealable Yes, No
Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin
Typical Current Rating (A) 8, 8.3, 10, 12, 16, 17, 25
Terminal Type Tab, Receptacle
Interface Plating Tin (Sn)
Contact Fabrication Stamped & Formed
Mating Tab Width (mm) 1.5, 2.8
Mating Tab Width (in) .059, .11
Contact Size 2.8mm, 1.5mm
Crimp Type F-Crimp
Mating Tab Thickness (mm) .5, .8
Mating Tab Thickness (in) .019, .03, .031

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire & Cable, Wire

Dimensions

Wire Size (mm²) .3, .35, .5 – .75, .5, .5 – .9, .5 – 1.5, .5 – 1, .82, .82 – .51, 1.25 – 2, 1.25, 1.3 – 2, 1.3, 2, 2.08 – 1.3, 3, 3.3
Compatible Insulation Diameter Range (mm) 1.19 – 1.65, 1.2 – 3.3, 1.2 – 2.7, 1.2 – 4.04, 1.2 – 2.3, 1.4 – 2.13, 1.4 – 1.85, 1.4 – 2.14, 1.6 – 2.06, 1.88 – 2.34, 1.88 – 2.85, 1.9 – 2.4, 2.1 – 2.7, 2.34 – 2.69, 3.1 – 3.3, 3.1 – 4.04
Compatible Insulation Diameter Range (in) .047 – .065, .047 – .106, .047 – .091, .047 – .161, .047 – .13, .05 – .084, .055 – .084, .055 – .073, .063 – .081, .074 – .092, .074 – .112, .075 – .094, .082 – .106, .092 – .106, .122 – .159, .122 – .13
Wire Size (AWG) 12, 14, 14 – 16, 16, 16 – 14, 18 – 20, 18, 20 – 15, 20 – 18, 20, 20 – 17, 22
Wire Size Search (mm²) .3, .35, .5, .6, .75, 1, 1.25, 1.5, 2, 3
Tab Length (mm) 19.75, 20.5, 21.5, 29
Tab Length (in) .78, .807, .85, 1.14
Wire Size Search (AWG) 12, 19, 15, 22, 16, 17, 14, 20, 18

Usage Conditions

Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products SAE/USCAR-2 / USCAR-21, LV214

Packaging Features

Packaging Method Package, Reel
Packaging Quantity 2000, 2250, 2300, 2500, 2600, 3000, 4500, 5000, 7000

Other

Customer Preferred Contact No, Yes
Terminal Transmits 0 – 24 A (Low Power), 25 – 40 A (Power)

Reference Number

TE Internal Number CAT-A11-T273
