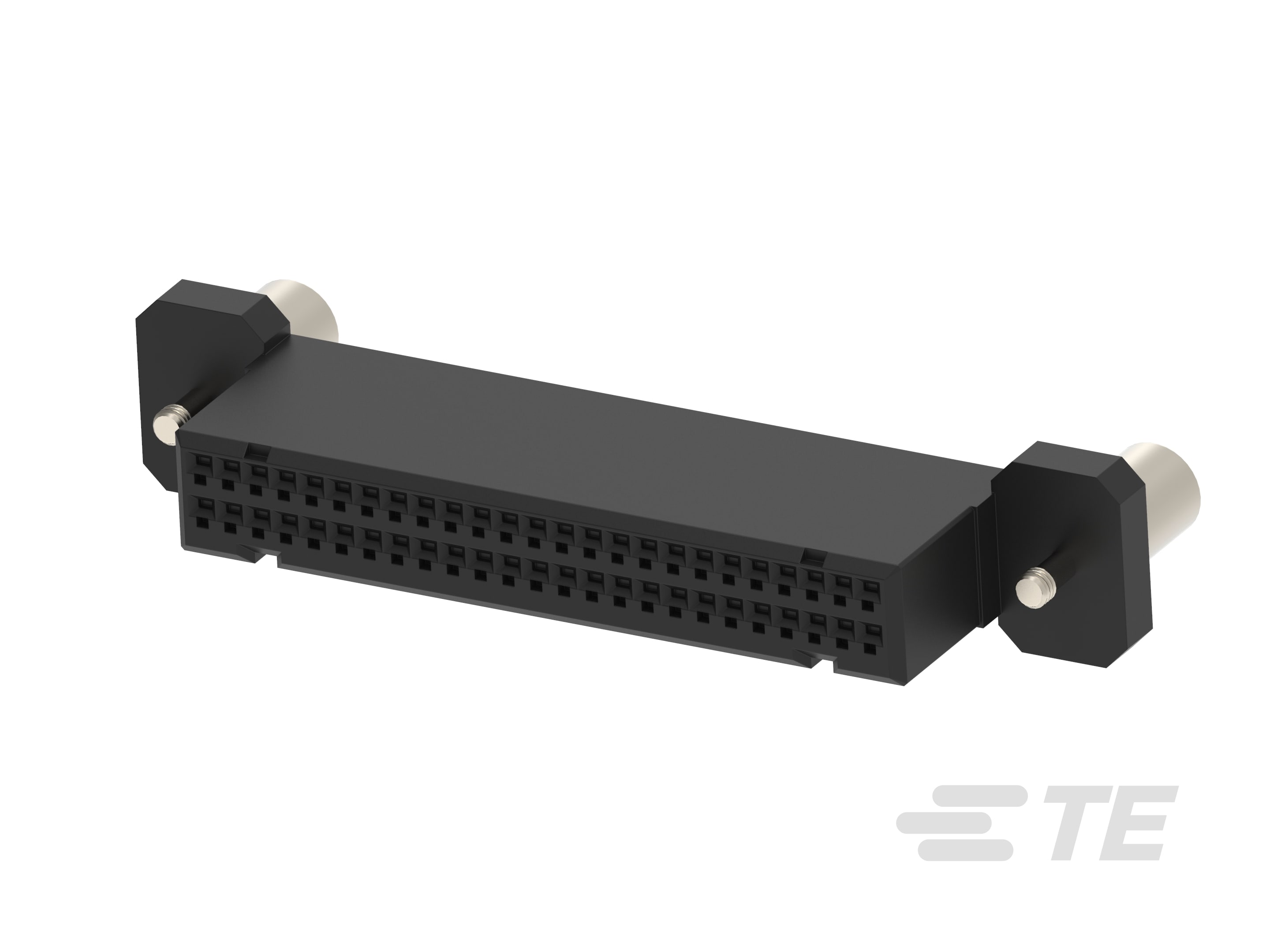

1376072-2
Housing, Receptacle, Crimp, Wire-to-Board, 50 Position, Dynamic 2000 Series, Rectangular Wire & Cable Connectors & Housings
1376072-2
Housing, Receptacle, Crimp, Wire-to-Board, 50 Position, Dynamic 2000 Series, Rectangular Wire & Cable Connectors & Housings
-
- Dynamic Series
- Dynamic 2000 Series
- TE Internal #: 1376072-2
- TE Internal Description: DYNAMIC D-2000 REC ASSY 50P
- All Receptacle and Tab Housing: 2.5 mm Pitch, 250V (54)
-
Connector Product Type : Housing
-
Connector & Housing Type : Receptacle
-
Mating Retention : With
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Board
Documents
Product Drawings
-
REC ASSY 50P
JPN_CD_1376072_A1.pdf Japanese -
REC ASSY 50P
Japanese
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1376072-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1376072-2_A.2d_dxf.zip English
- ENG_CVM_CVM_1376072-2_A.3d_igs.zip English
- ENG_CVM_CVM_1376072-2_A.3d_stp.zip English
Datasheets & Catalog Pages
- 1-1773721-5_DYNAMIC_SERIES_QRG ENG_DS_1-1773721-5_DYNAMIC_SERIES_QRG_0914_1-1773721-5_QRG-DYNAMIC-SERIES.pdf English
Product Specifications
- Application Specification JPN_SS_114-5258_F.tif Japanese
- JPN_SS_114-5258_F.pdf Japanese
- Product Specification ENG_SS_108-5659_D.pdf English
- S_108-5659_D.tif English
