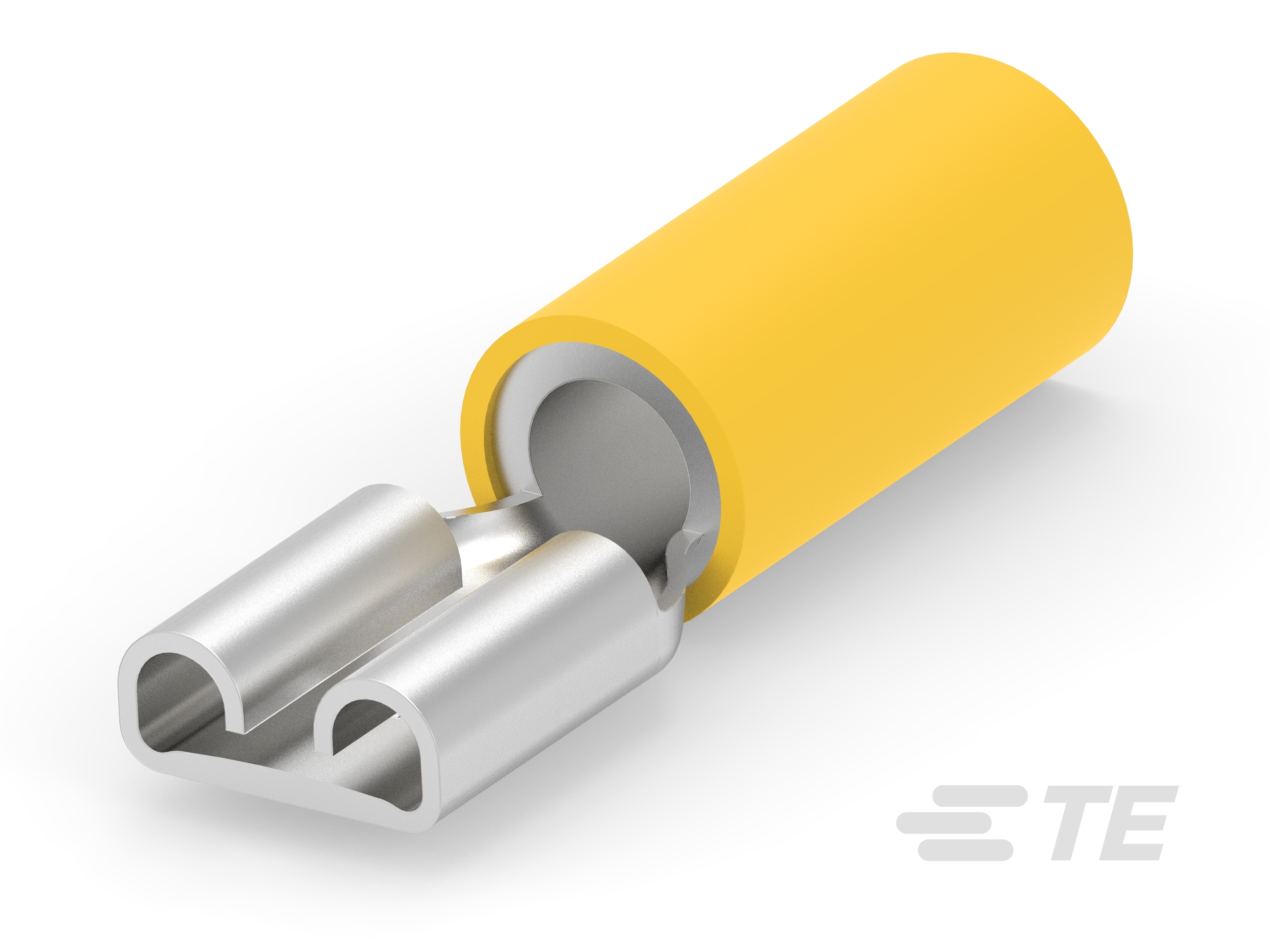

Receptacle, 12 – 10 AWG Wire Size, 4 – 6 mm² Wire Size, Mating Tab Width 6.35 mm [.25 in], Straight, Brass, Tin Plating, Bag, Quick Disconnects
1377175-9
Receptacle, 12 – 10 AWG Wire Size, 4 – 6 mm² Wire Size, Mating Tab Width 6.35 mm [.25 in], Straight, Brass, Tin Plating, Bag, Quick Disconnects
- TE Internal #: 1377175-9
- TE Internal Description: SMP 0-0160314-2
- Alias #: E46934-000 AMPS-0-1377175-9
-
Packaging Method : Bag
-
Operating Temperature Range : 105 °C [ 221 °F ]
-
Wire Size (AWG): 12 – 10
-
Mating Tab Thickness : .81 mm [ .032 in ]
-
Wire Insulation Support : With
Documents
Product Drawings
- SMALL PACK ENG_CD_1377175_F9.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1377175-9_G2.pdf 3D
- Customer View Model ENG_CVM_CVM_1377175-9_G2.3d_stp.zip English
- ENG_CVM_CVM_1377175-9_G2.3d_igs.zip English
- ENG_CVM_CVM_1377175-9_G2.2d_dxf.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
- Product Specification ENG_SS_108-1033_A.pdf English
