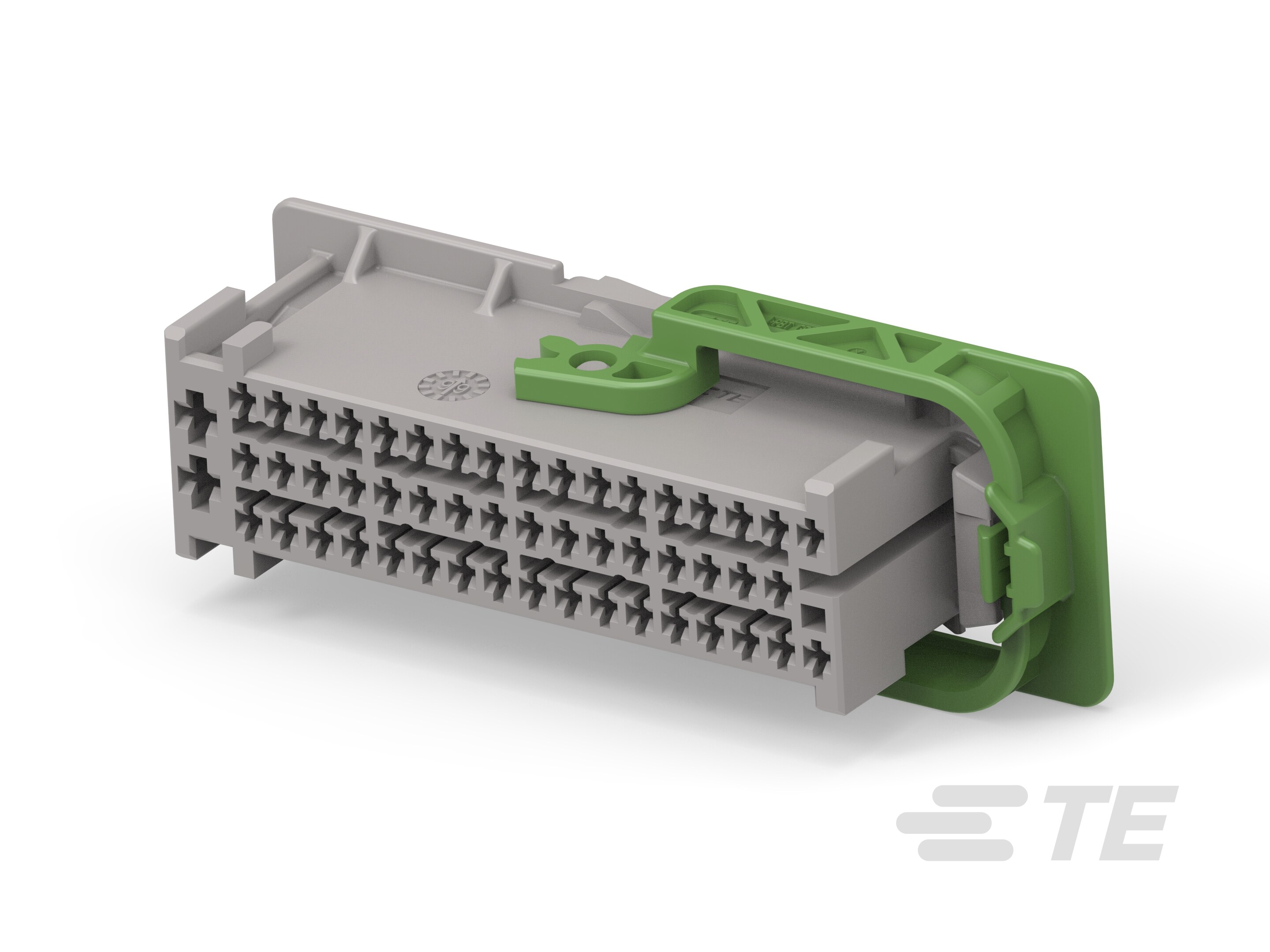

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : Yes

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 2.8mm, 1.5mm

• Mating Tab Width (mm): 1.5, 2.8

• Mating Tab Width (in): .063, .11

• Contact Current Rating (Max) (A): 9.8, 16.5

• Housing Material : PBT GF

• Centerline (Pitch) : 3.5 mm [ .14 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Gray

• Connector & Keying Code : Neutral

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Connector Height : 30.4 mm [ 1.2 in ]

• Product Length : 83 mm [ 3.27 in ]

• Product Width : 23.5 mm [ .925 in ]

• Row-to-Row Spacing (mm): 5.5, 5.9

• Row-to-Row Spacing (in): .232, .217

• Number of Positions : 52

• Number of Rows : 3

• Nominal Voltage Architecture (V): 16

• Operating Temperature (Max) : 70 °C [ 158 °F ]

• Operating Temperature Range : -40 – 70 °C [ -40 – 158 °F ]
