Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

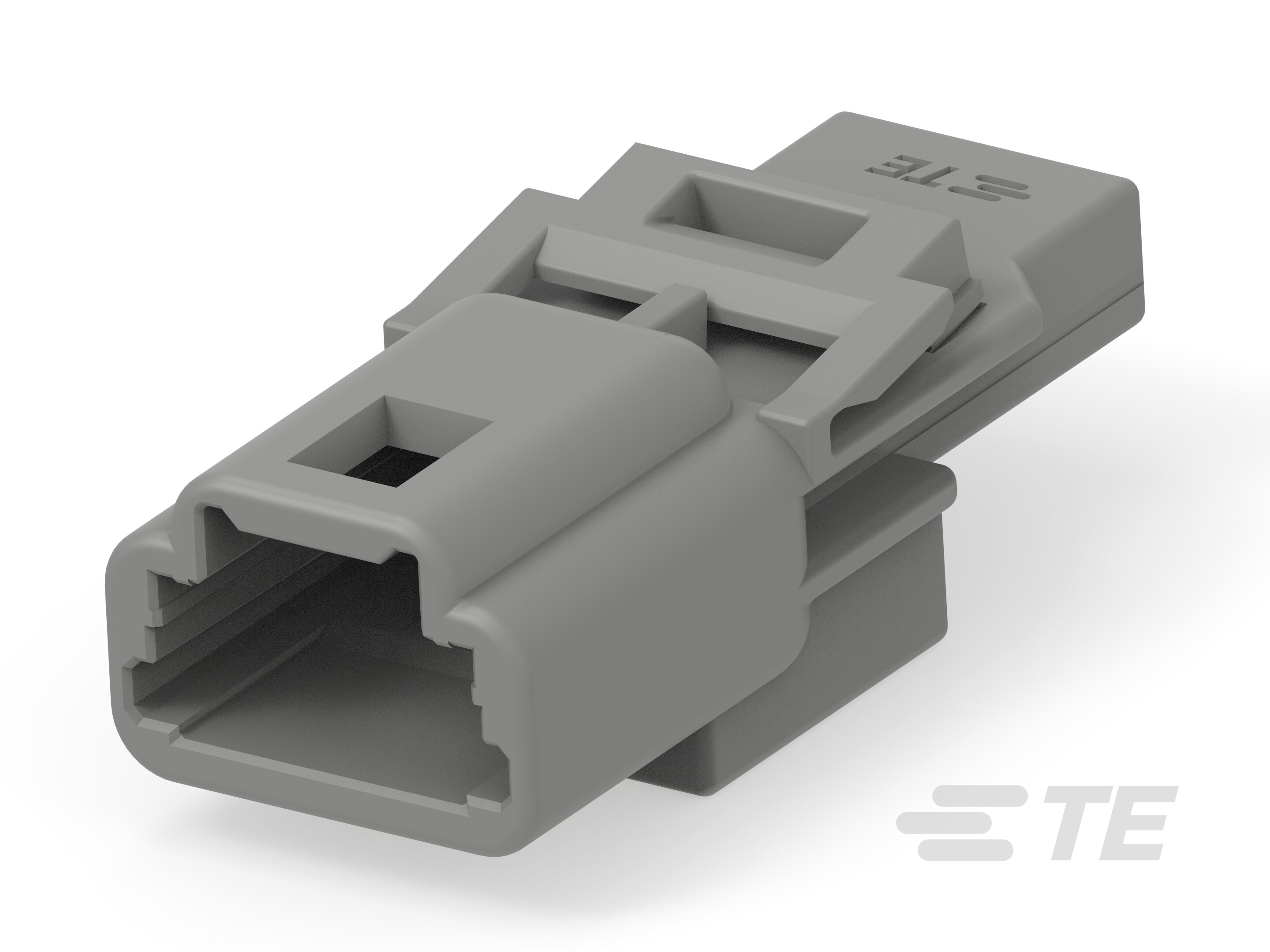

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Connector & Housing Type : Housing for Male Terminals

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : On the Terminal

• Mixed & Hybrid Connector : No

• Number of Positions : 4

• Number of Rows : 1

• Operating Voltage (VDC): 14

• Nominal Voltage Architecture (V): 14

• Cable Exit Angle : 180°

• Primary Product Color : Gray

• Connector & Keying Code : 2

• Contact Type : Tab

• Contact Size : .63mm

• Mating Tab Width : .64 mm [ .025 in ]

• Contact Current Rating (Max) (A): 7.5

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

• Housing Material : PBT

• Centerline (Pitch) : 2.2 mm [ .087 in ]

• Product Length : 14 mm [ .551 in ]

• Product Width : 33.4 mm [ 1.315 in ]

• Connector Height : 11.75 mm [ .463 in ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212

• Operating Temperature Range : -40 – 100 °C [ -40 – 212 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Box

• Packaging Quantity : 100
