Please review product documents or contact us for the latest agency approval information.

• Discrete Wire Type : Stranded

• Sealable : No

• Applied Pressure : Intermediate

• Compatible With Wire & Cable Type : Discrete Wire

• Contact Orientation : Straight

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Underplating Material Thickness : 1.25 µm [ 49.21 µin ]

• Contact Mating Area Plating Material Thickness : .8 µm [ 31.49 µin ]

• Contact Base Material : Phosphor Bronze

• Contact Length : 11.9 mm [ .468 in ]

• Barrel Type : Open

• Wire Contact Termination Area Plating Material : Gold Flash

• Contact Retention Within Housing : With

• Contact Mating Area Plating Material : Gold

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 3

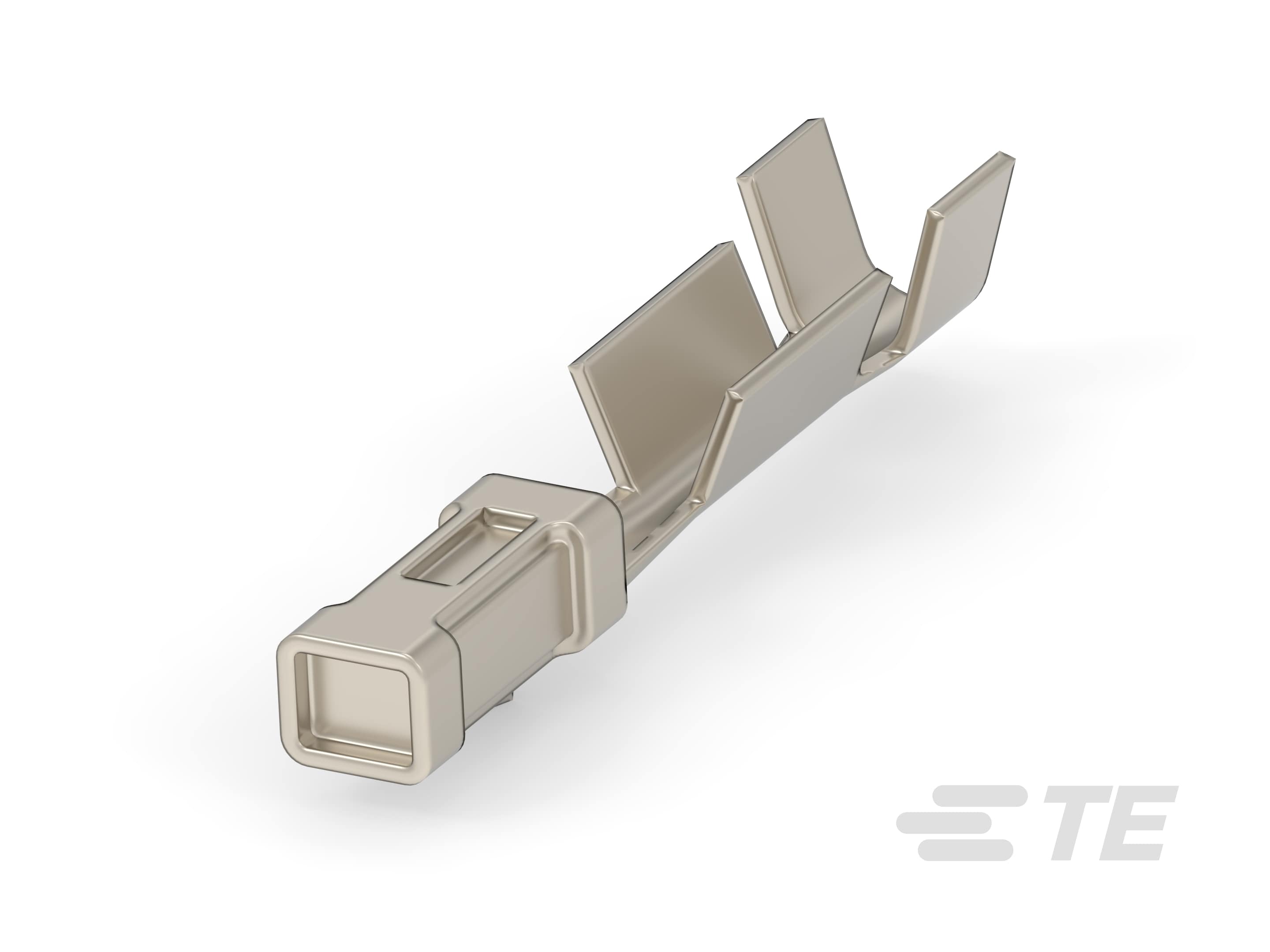

• Contact Type : Receptacle

• Product Terminates To : Wire & Cable

• Termination Method to Wire & Cable : Crimp

• Wire Insulation Support : With

• Contact Retention Type Within Housing : Locking Lance

• Wire Size (AWG): 24 – 20

• Compatible Insulation Diameter Range : 1.4 mm [ .055 in ]

• Wire Size (mm²): .205 – .518

• Wire Size (CMA): 404 – 1022

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Signal
