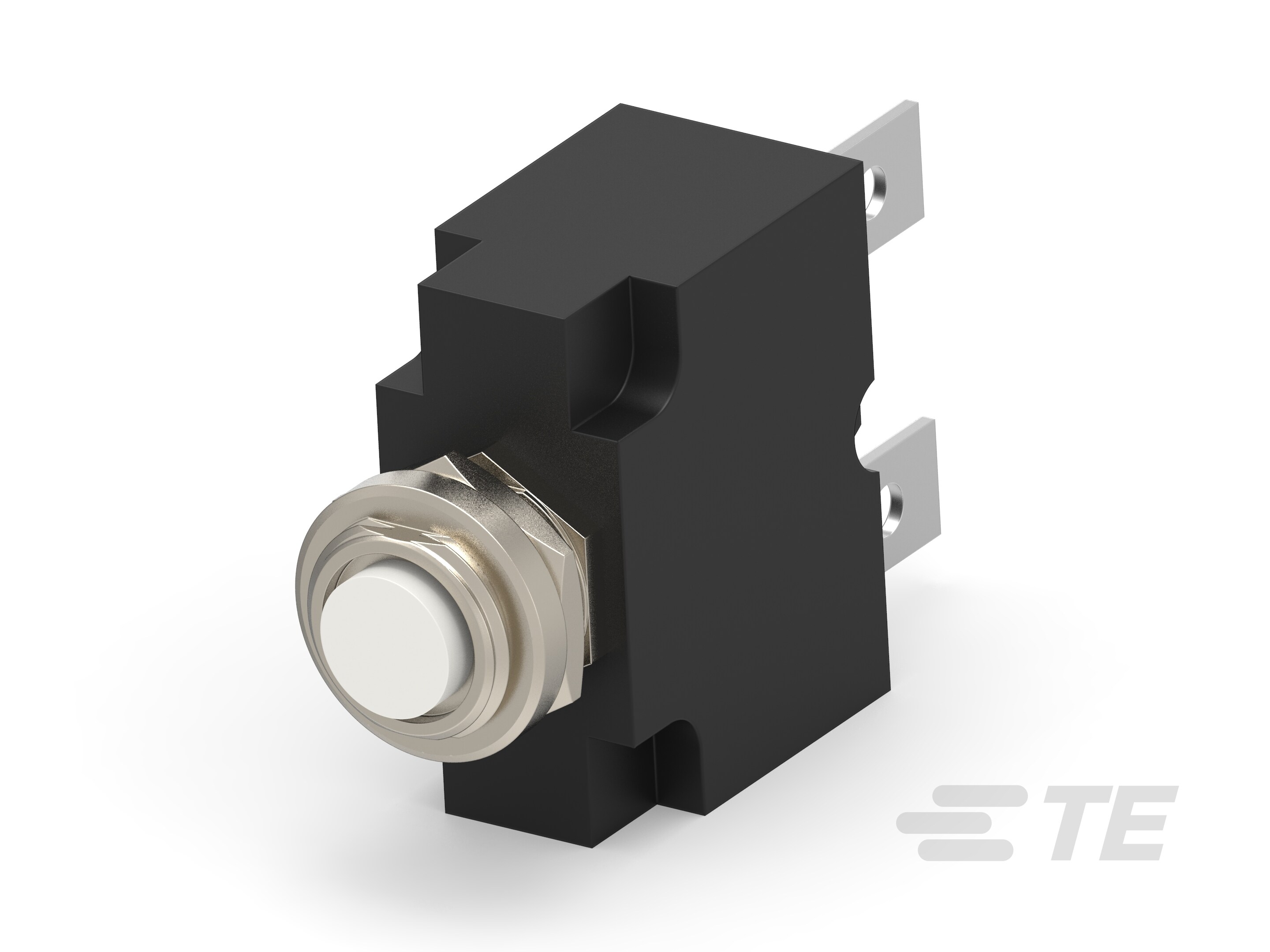

Thermal, Series Trip, White, Operating Voltage 250 VAC, 8A Current Rating, 1 Pole, 4 – 40 seconds Trip Time at 200%, Circuit Breakers
W57-XB7A4A10-8
Thermal, Series Trip, White, Operating Voltage 250 VAC, 8A Current Rating, 1 Pole, 4 – 40 seconds Trip Time at 200%, Circuit Breakers
- TE Internal #: 1423675-6
- TE Internal Description: W57-XB7A4A10-8=CKTBKR,THERM,PB
-
Actuator Type : Push to Reset
-
Circuit Function : Series Trip
-
Terminal Configuration : 6.35 [.25] Quick Connect, Bent 90°
-
Actuator Color : White
-
Illuminated : Without
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1423675-6_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1423675-6_C.2d_dxf.zip English
- ENG_CVM_CVM_1423675-6_C.3d_igs.zip English
- ENG_CVM_CVM_1423675-6_C.3d_stp.zip English
Datasheets & Catalog Pages
- W57 Compact Push To Reset Only Thermal Circuit Breaker ENG_DS_1308242_W57_0121.pdf English
Agency Approvals
- CCC Certificate ENG_AAD_CCC_SDOC_2020960307002489_C1_2.pdf English
