2SKF132AEL01

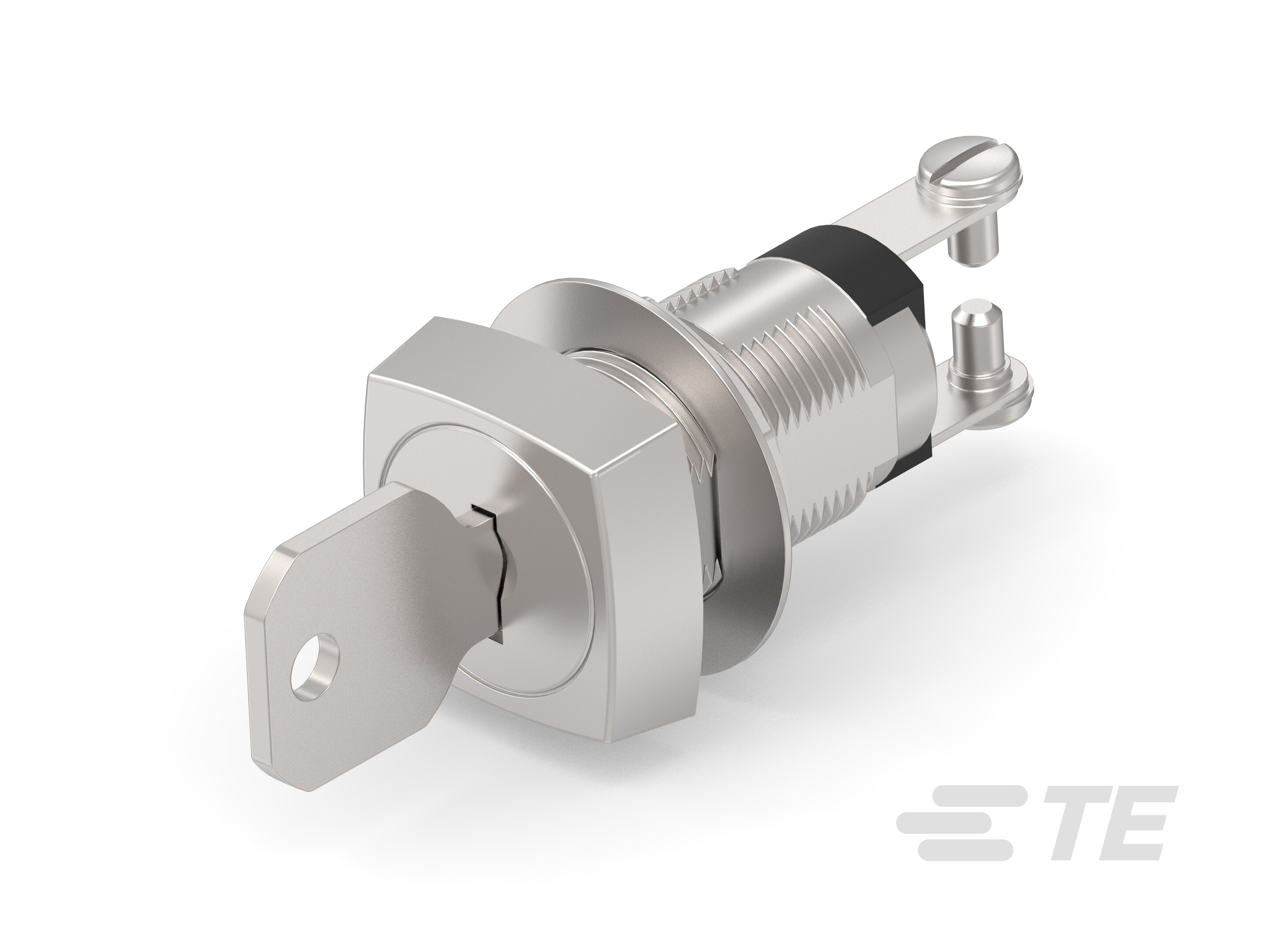

Single Pole - Single Throw Keylock Switch, Zinc Alloy Cylinder, Remove Key Position 1 or 2, Position 1 Off / Position 2 On, 1 A Contact Rating
2SKF132AEL01
Single Pole - Single Throw Keylock Switch, Zinc Alloy Cylinder, Remove Key Position 1 or 2, Position 1 Off / Position 2 On, 1 A Contact Rating
-
- Alcoswitch
- TE Internal #: 1437597-7
- TE Internal Description: 2SKF132AEL01=NON UL KEYLOCK
-
Configuration (Pole-Throw) : Single Pole - Single Throw
-
Cylinder Material : Zinc Alloy
-
Remove Key : Position 1 or 2
-
Soldering Type : Hand
-
Operating Function : Position 2 On, Position 1 Off
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1437597-7_99.pdf 3D
- Customer View Model ENG_CVM_CVM_1437597-7_99.2d_dxf.zip English
- ENG_CVM_CVM_1437597-7_99.3d_igs.zip English
- ENG_CVM_CVM_1437597-7_99.3d_stp.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
