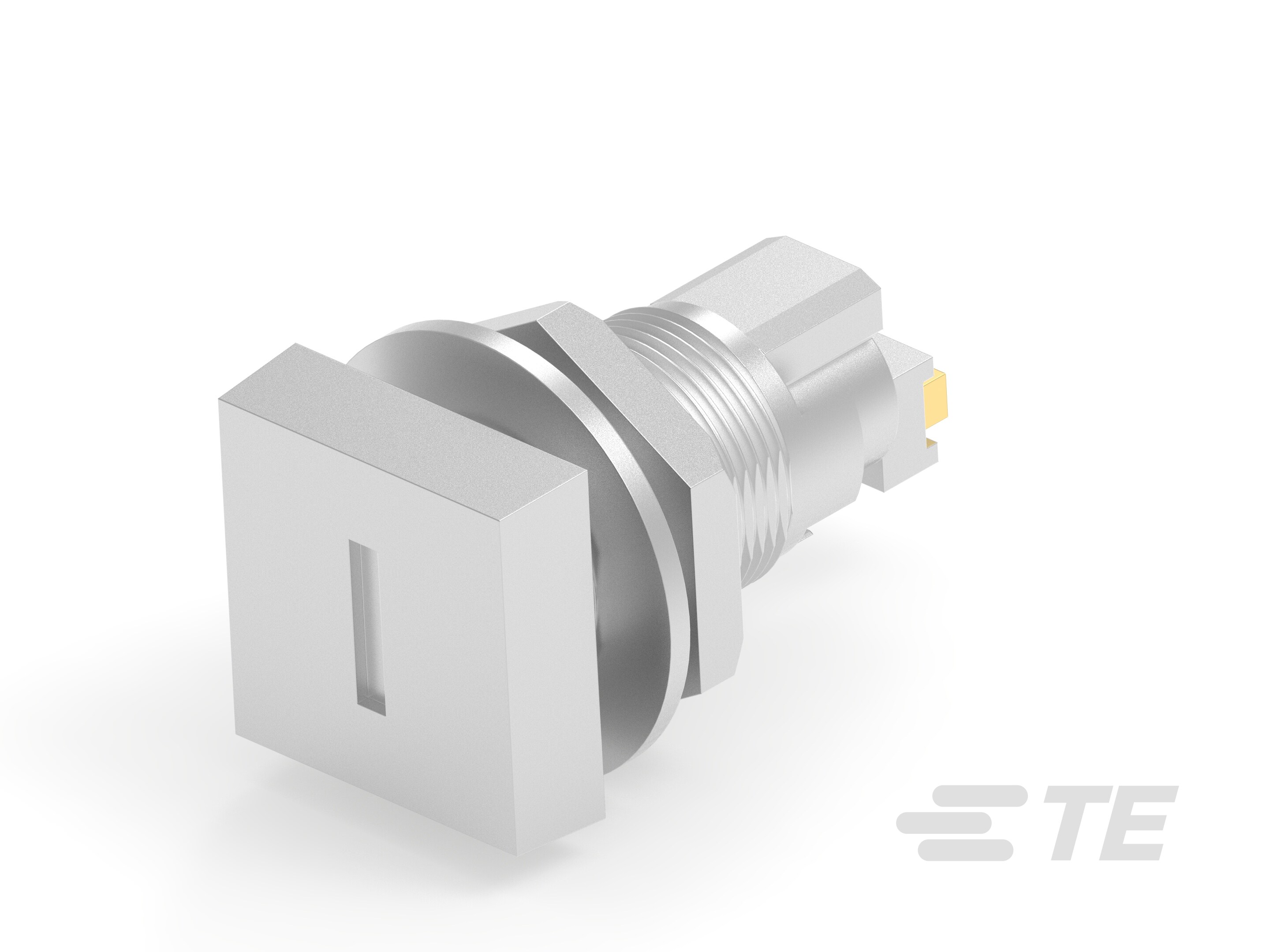

- TE Internal #: 1437598-5
- TE Internal Description: SKT131GAEL01=ALMAC SKT-13-1G
-
Operating Temperature (Max) (°C): 85
-
Panel Cutout Size : 19.3 x 16.3 mm [ .76 x .64 in ]
-
Oil-Tight : No
-
Dielectric Withstanding Voltage (Max) (VAC): 1000
-
Remove Key : Position 1
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1437598-5_A_c-1437598-5-a-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1437598-5_A_c-1437598-5-a.2d_dxf.zip English
- ENG_CVM_CVM_1437598-5_A_c-1437598-5-a.3d_igs.zip English
- ENG_CVM_CVM_1437598-5_A_c-1437598-5-a.3d_stp.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
