PK50B1/8

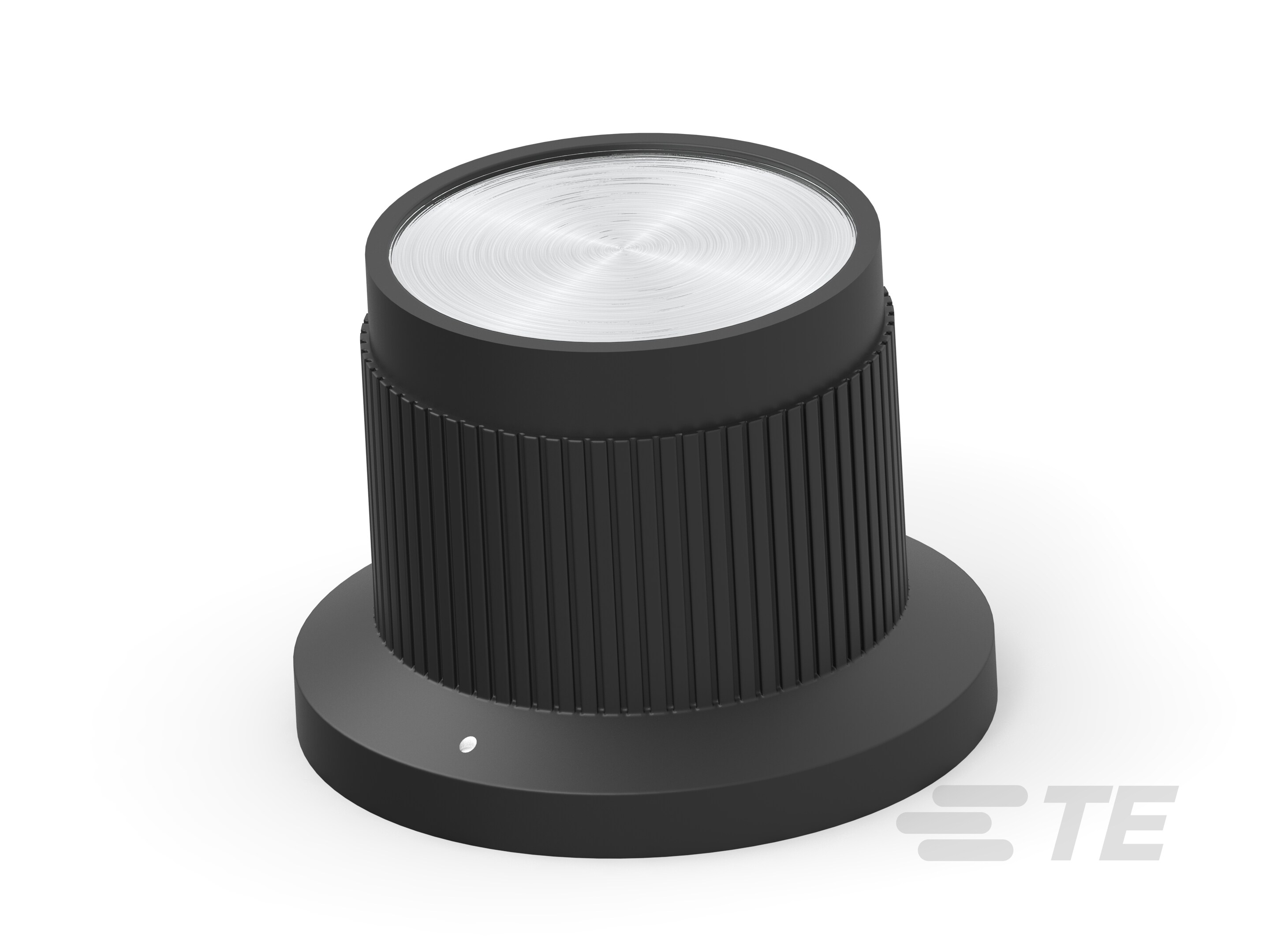

Molded Phenolic Resin, Straight Knurl Knob Design, 3.17 mm [.125 in] Shaft, 19 mm [.748 in] Diameter, Black, Dot Indicator, Switch Knobs
PK50B1/8
Molded Phenolic Resin, Straight Knurl Knob Design, 3.17 mm [.125 in] Shaft, 19 mm [.748 in] Diameter, Black, Dot Indicator, Switch Knobs
-
- Alcoswitch
- TE Internal #: 1437624-7
- TE Internal Description: PK50B1/8=KNOB PLASTIC BLK 1/8
-
Primary Product Material : Molded Phenolic Resin
-
Knob Design : Straight Knurl
-
Shaft Size : 3.17 mm [ .125 in ]
-
Product Diameter : 19 mm [ .748 in ]
-
Primary Product Color : Black
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1437624-7_99_c-1437624-7-99-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1437624-7_99_c-1437624-7-99.2d_dxf.zip English
- ENG_CVM_CVM_1437624-7_99_c-1437624-7-99.3d_igs.zip English
- ENG_CVM_CVM_1437624-7_99_c-1437624-7-99.3d_stp.zip English
Datasheets & Catalog Pages
- Alcoswitch Products ENG_DS_1308390_Alcoswitch_1004.pdf English
