Please review product documents or contact us for the latest agency approval information.

• Performance Type : Standard

• Current Type : DC

• Coil Magnetic System : Bistable, 1 Coil

• Contact Number of Poles : 1

• Relay Options : RF Rated

• Contact Special Features : Gull Wing

• Contact Arrangement : 1 Form C SPDT-CO

• Insulation Initial Resistance (MΩ): 1000000

• Coil Resistance (Ω): 128

• Voltage Standing Wave Ration (HF Parameter) : 1.07 @ 100MHz, 1.45 @ 900MHz

• Contact Switching Voltage (Max) (VAC): 250

• Contact Switching Voltage (Max) (VDC): 220

• Insulation Initial Dielectric Between Open Contacts (Vrms): 600

• Contact Limiting Breaking Current (A): 2

• Contact Limiting Continuous Current (A): 2

• Contact Limiting Making Current (A): 2

• Contact Limiting Short-Time Current (A): 2

• Contact Current Rating (A): 2

• Coil Voltage Rating (VAC): 3

• Contact Voltage Rating (VAC): 250

• Contact Voltage Rating (VDC): 220

• Coil Power Rating DC (W): .07

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 1000

• Product Weight (oz): 2.5

• Enclosure Type : Flux Resistant Automatic Soldering & Washable

• Environmental Category of Protection : RTIII

• Environmental Ambient Temperature (Max) : 85 °C [ 85 °F ]

• Environmental Ambient Temperature Class (°C): 70 – 85

• Contact Current Class (A): 0 – 2

• Coil Power Rating Class (W): .05 – .3

• Height Class (Mechanical) (mm): 9 – 10

• Length Class (Mechanical) (mm): 14 – 16

• Width Class (Mechanical) (mm): 6 – 8

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Packaging Method : Box & Carton, Reel

• Insertion Loss (HF Parameter) : -.12dB @ 900MHz, -.35dB @ 3GHz, -.03dB @ 100MHz

• Isolation (HF Parameter) : -45dB @ 3GHz, -72dB @ 900MHz, -80dB @ 100MHz

• Product Height : 9.1 mm [ .358 in ]

• Product Length : 14.6 mm [ .574 in ]

• Product Width : 7.2 mm [ .283 in ]

• Contact Material : Nickel

• Contact Plating Material : Gold

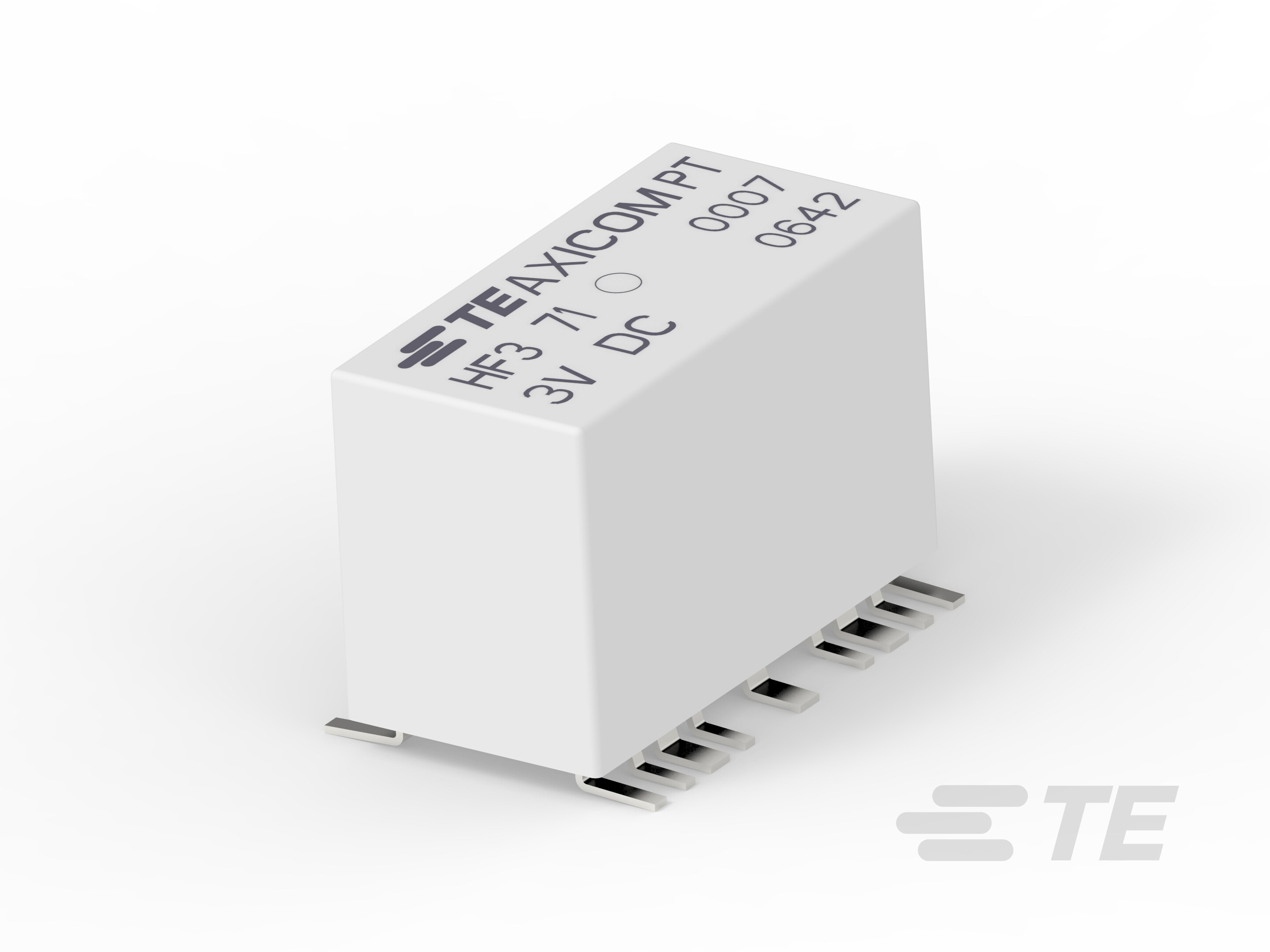

• Relay & Contactor Type : RF Relay

• Main Termination & Connection Type : PCB SMT

• Coil Termination & Connection Type : PCB SMT
