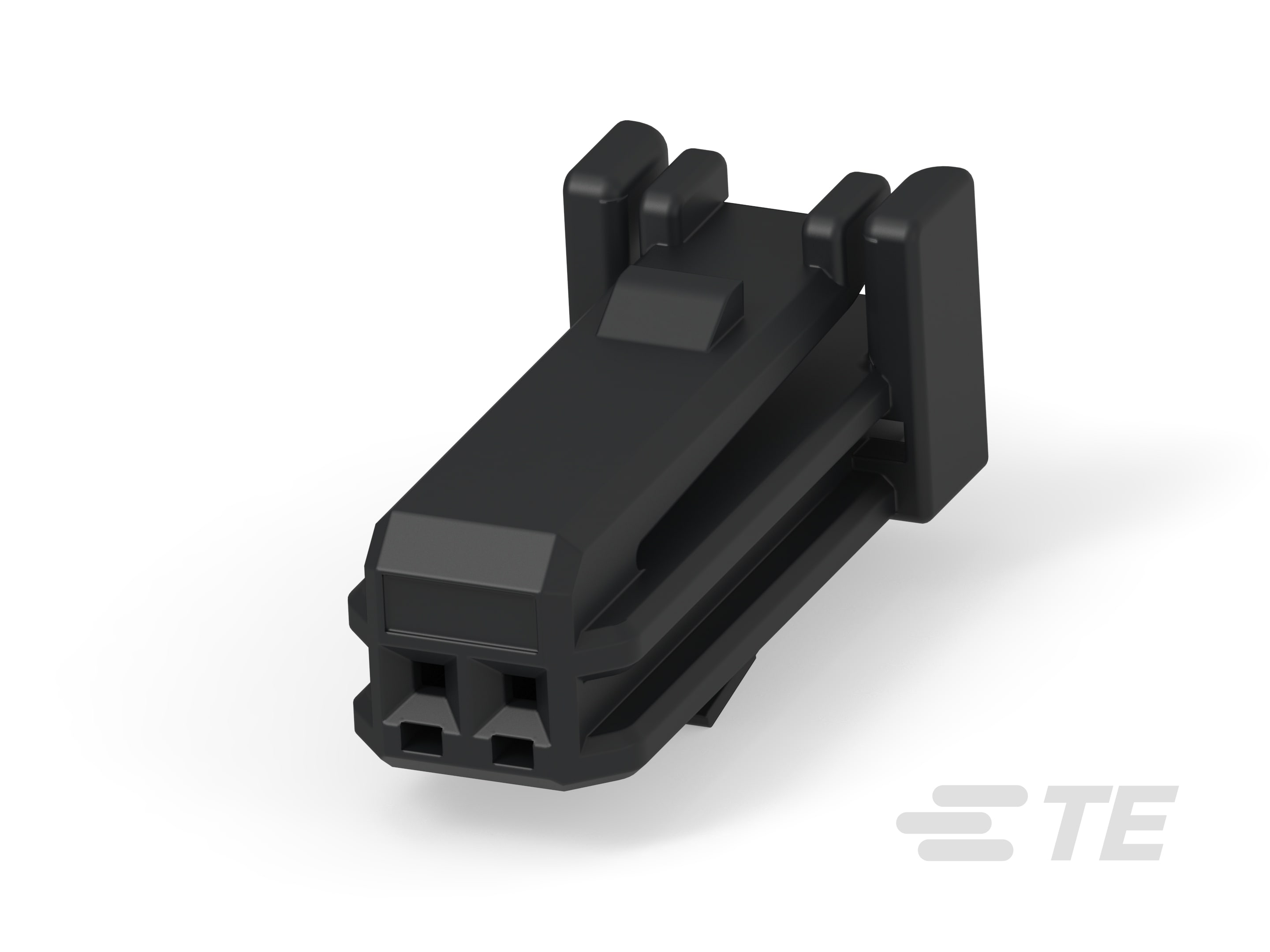

Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 2 Position, 2.2 mm [.087 in] Centerline, Black, Signal, 0.64/025 Connector System
1473143-1
Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 2 Position, 2.2 mm [.087 in] Centerline, Black, Signal, 0.64/025 Connector System
-
- AMP
- 0.64/025 Connector System
- TE Internal #: 1473143-1
- TE Internal Description: 025 PLUG HSG 2P
- All TH/.025 CONNECTOR SYSTEM, HOUSING (177)
-
Connector System : Wire-to-Board, Wire-to-Device
-
Number of Positions : 2
-
Connector & Housing Type : Housing for Female Terminals
-
Centerline (Pitch) : 2.2 mm [ .087 in ]
-
Sealable : No
