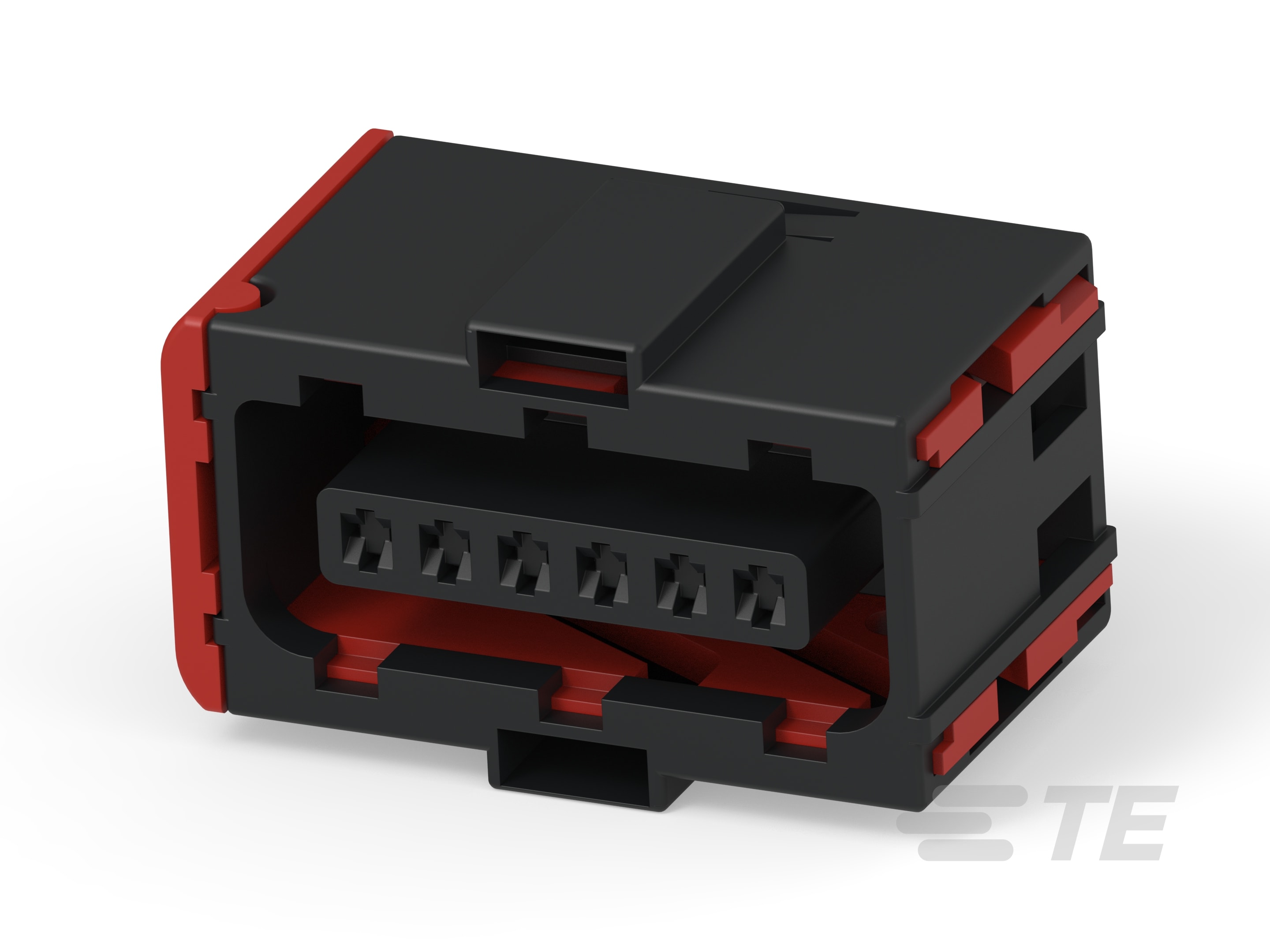

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board, Wire-to-Device

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 1.6mm

• Mating Tab Width : 1.6 mm [ .063 in ]

• Contact Current Rating (Max) (A): 10

• Housing Material : PA GF

• Centerline (Pitch) : 4.2 mm [ .165 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Operating Voltage (VDC): 14

• Nominal Voltage Architecture (V): 12

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Packaging Quantity : 132

• Connector Height : 25.4 mm [ 1 in ]

• Product Length : 28.5 mm [ 1.122 in ]

• Product Width : 40.5 mm [ 1.594 in ]

• UL Flammability Rating : UL 94HB

• Number of Positions : 6

• Number of Rows : 1

• Operating Temperature (Max) : 85 °C [ 185 °F ]

• Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
