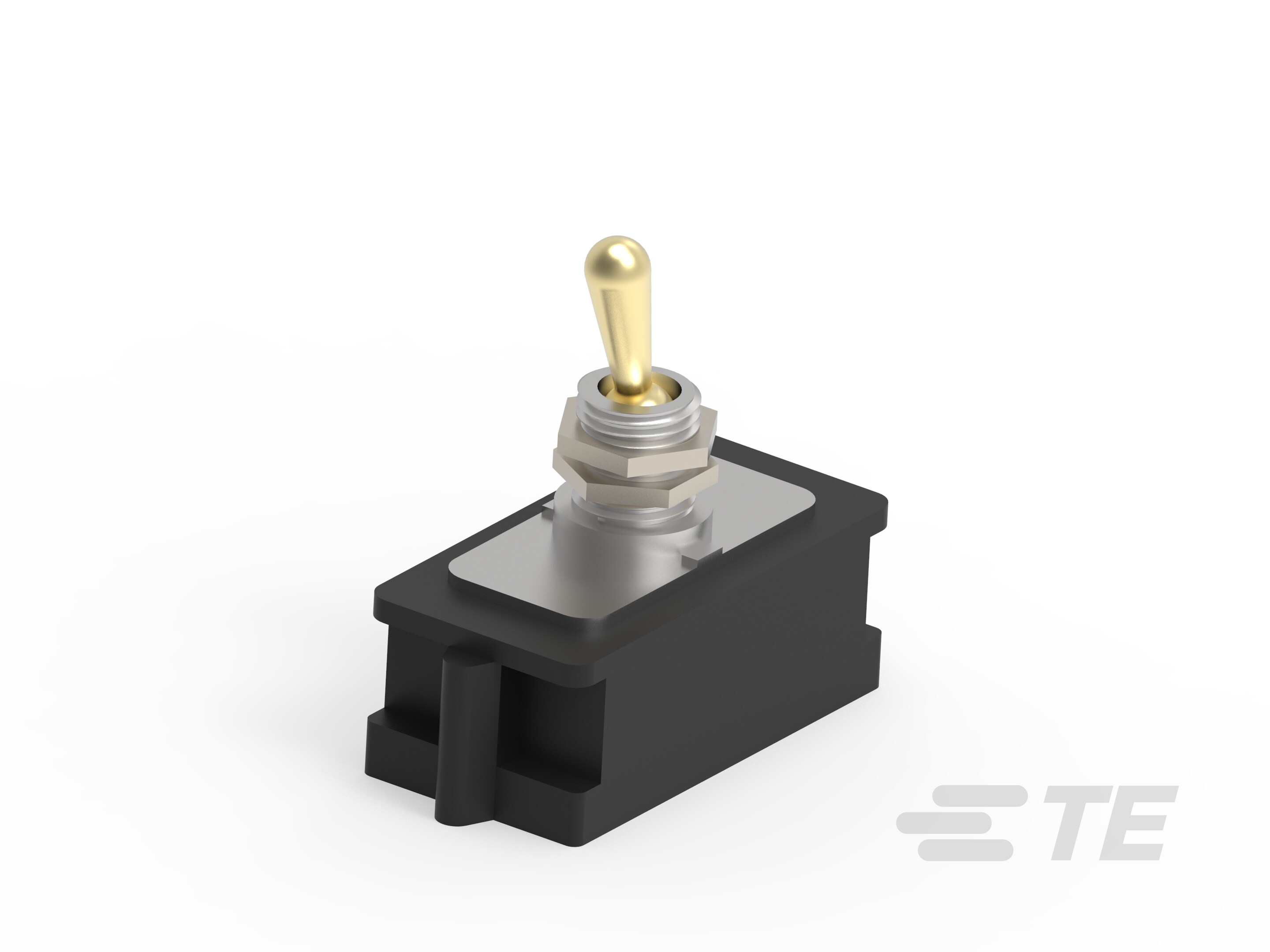

Double Pole - Single Throw Configuration (Pole-Throw), 15/32-32, Baton, On Off, 10A Contact Current Rating, Operating Voltage 250 VAC, Toggle Switches
1520228-4
Double Pole - Single Throw Configuration (Pole-Throw), 15/32-32, Baton, On Off, 10A Contact Current Rating, Operating Voltage 250 VAC, Toggle Switches
-
- Alcoswitch
- TE Internal #: 1520228-4
- TE Internal Description: 7360K8=BULKPACK 10 TOGGLE SW
- Alias #: 7360K8
-
Bushing Thread Size : 15/32-32
-
Bushing Style : Threaded
-
Bushing Length : 11.5 mm [ .453 in ]
-
Toggle Length : 17.04 mm [ .671 in ]
-
Contact Current Rating (A): 10
Documents
Product Drawings
- 20 AMP 125V AC/DC, 10 AMP 250V AC/DC, 1 1/2 HP 125V/250V AC/DC, ONE HOLE MOUNTING TOOL HANDLE TOGGLE SWITCH ENG_CD_1520228_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_1520228-4_B.pdf English
- 3D_CVM_CVM_1520228-4_B1.pdf 3D
- Customer View Model ENG_CVM_CVM_1520228-4_B1.3d_igs.zip English
- ENG_CVM_CVM_1520228-4_B1.3d_stp.zip English
- ENG_CVM_CVM_1520228-4_B1.2d_dxf.zip English
- ENG_CVM_1520228-4_B.3d_igs.zip English
- ENG_CVM_1520228-4_B.3d_stp.zip English
- ENG_CVM_1520228-4_B.2d_dxf.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
