Please review product documents or contact us for the latest agency approval information.

• Packaging Quantity : 500

• Packaging Method : Loose Piece

• Stripe Color : White

• Insulation Sleeve Color : White

• Product Weight (g): 1.078

• Government Qualified Terminal : No

• Voltage Rating (V): 300

• Wire Insulation Support : With

• Number of Holes : 1

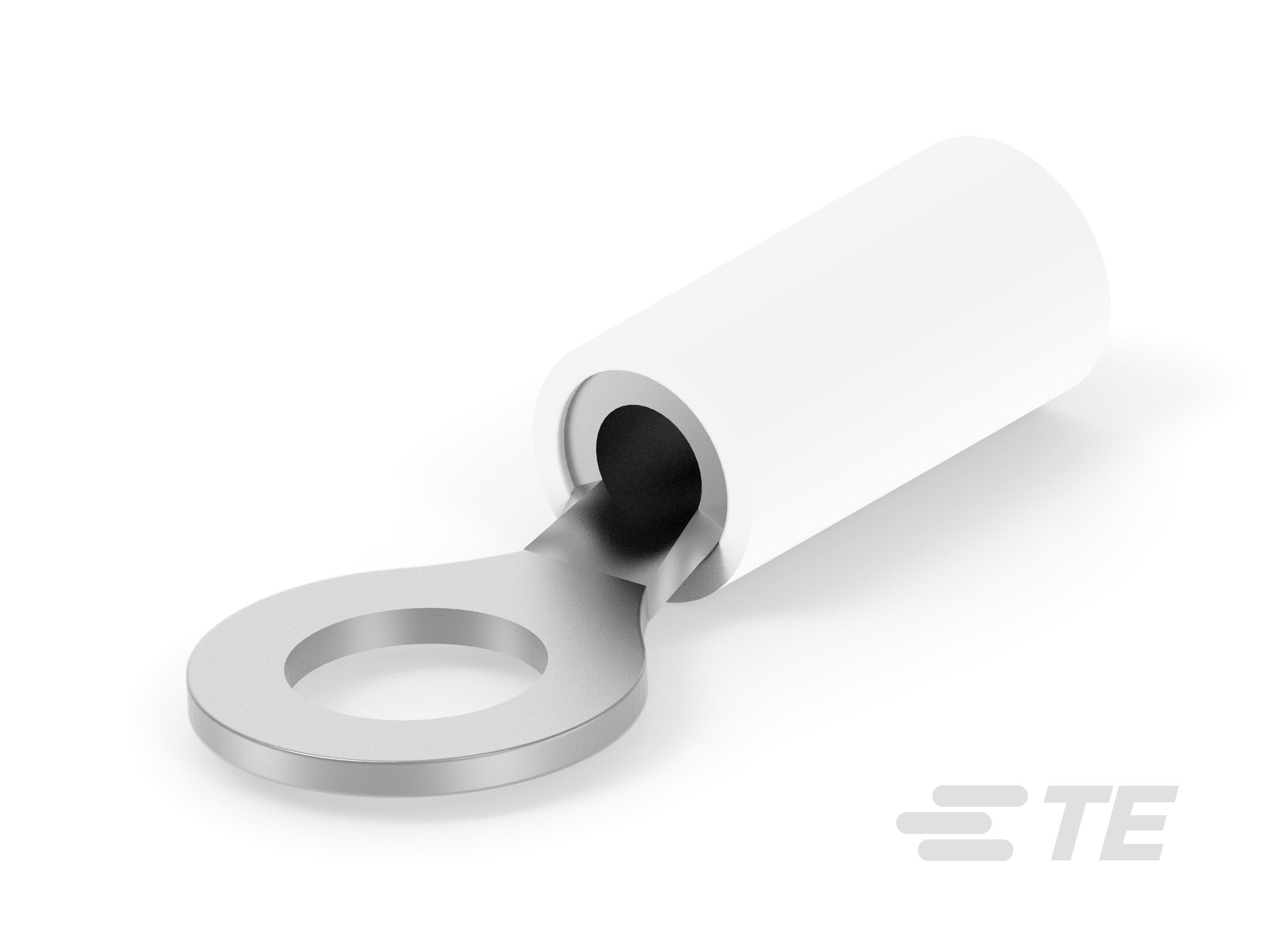

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : M5

• Sealable : No

• Wire Insulation Support Retention Type : Non-Insulation Support

• Barrel Type : Closed

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Wire Size (AWG): 14 – 12

• Wire Size (mm²): 1.65 – 3.45

• Wire Size (CMA): 3260 – 6800

• Stud Diameter : 5 mm [ .197 in ]

• Tongue Thickness : .79 mm [ .031 in ]

• Product Length : 22.02 mm [ .865 in ]

• Compatible Insulation Diameter (Max) : 3.18 mm [ .125 in ]

• Compatible Insulation Diameter Range : 2.03 – 3.18 mm [ .08 – .125 in ]

• Insulation Option : Partially Insulated

• Compatible With Wire Base Material : Copper

• Compatible With Wire Plating Material : Tin
