Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

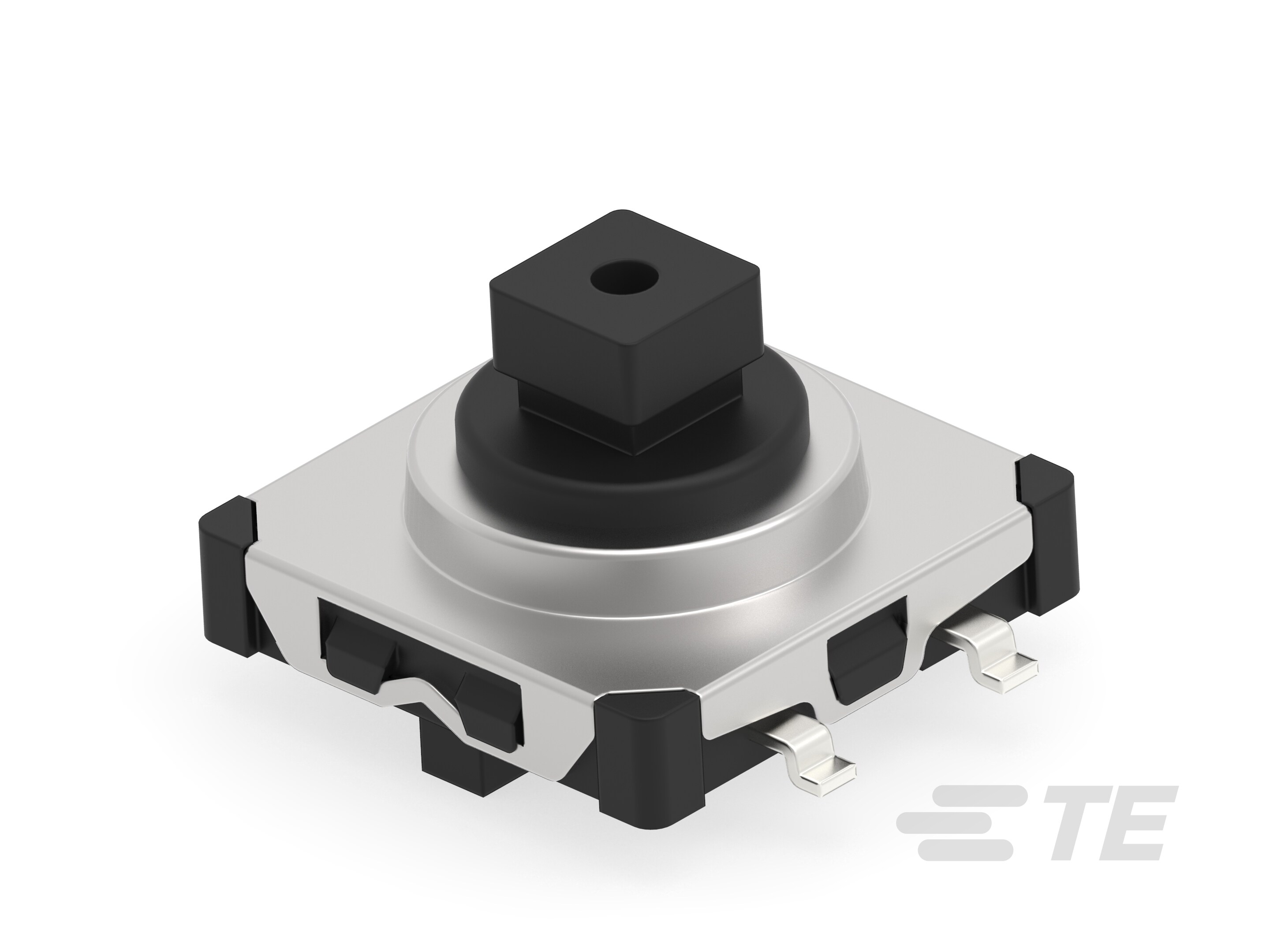

• Illuminated : With

• Switch Connection Type : Printed Circuit Board

• Leg Style : SMD Pads

• Actuator Style : Square

• Ganged : With

• ESD Grounding Terminal : Without

• Switch Feedback Type : Tactile

• Operating Function : Yes

• Support Bracket : Without

• Configuration (Pole-Throw) : Single Pole - Single Throw

• Number of Actuators : Single

• Actuator Force : 160 g [ 5.64 oz ]

• Cover Material : Stainless Steel

• Actuator Material : Thermoplastic

• Case Color : Black

• Actuator Profile : Extended

• Case Material : Thermoplastic (LCP)

• Product Orientation : Vertical

• Actuator Color : Black

• Actuator Length : 2.7 mm [ .106 in ]

• Product Height (in): .287

• Button Width : 3.78 mm [ .149 in ]

• Packaging Method : Tape & Reel

• Contact Current Rating (mA): 50

• Contact Base Material : Stainless Steel

• Switch Contact Plating Material : Silver

• IP Rating : IP67

• Low Profile : With

• Process Sealed : Yes

• Operating Voltage (VDC): 24

• Termination Method to PCB : Surface Mount

• Operating Temperature Range (°C): -35 – 85
