STM065C6N
65 Position D-Shaped Connector, Plug, Wire-to-Board, Board Mount, 1.27 mm [.05 in] Centerline, Printed Circuit Board, Power
STM065C6N
65 Position D-Shaped Connector, Plug, Wire-to-Board, Board Mount, 1.27 mm [.05 in] Centerline, Printed Circuit Board, Power
-
- Nanonics
- TE Internal #: 1589481-8
- TE Internal Description: STM065C6N = THRU-HOLE
- All DUALOBE Plug Connectors: Metal Shell, 65 Pin/2 row (6)
-
Number of Positions : 65
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Board
-
Connector Mounting Type : Board Mount
-
Centerline (Pitch) : 1.27 mm [ .05 in ]
Documents
Product Drawings

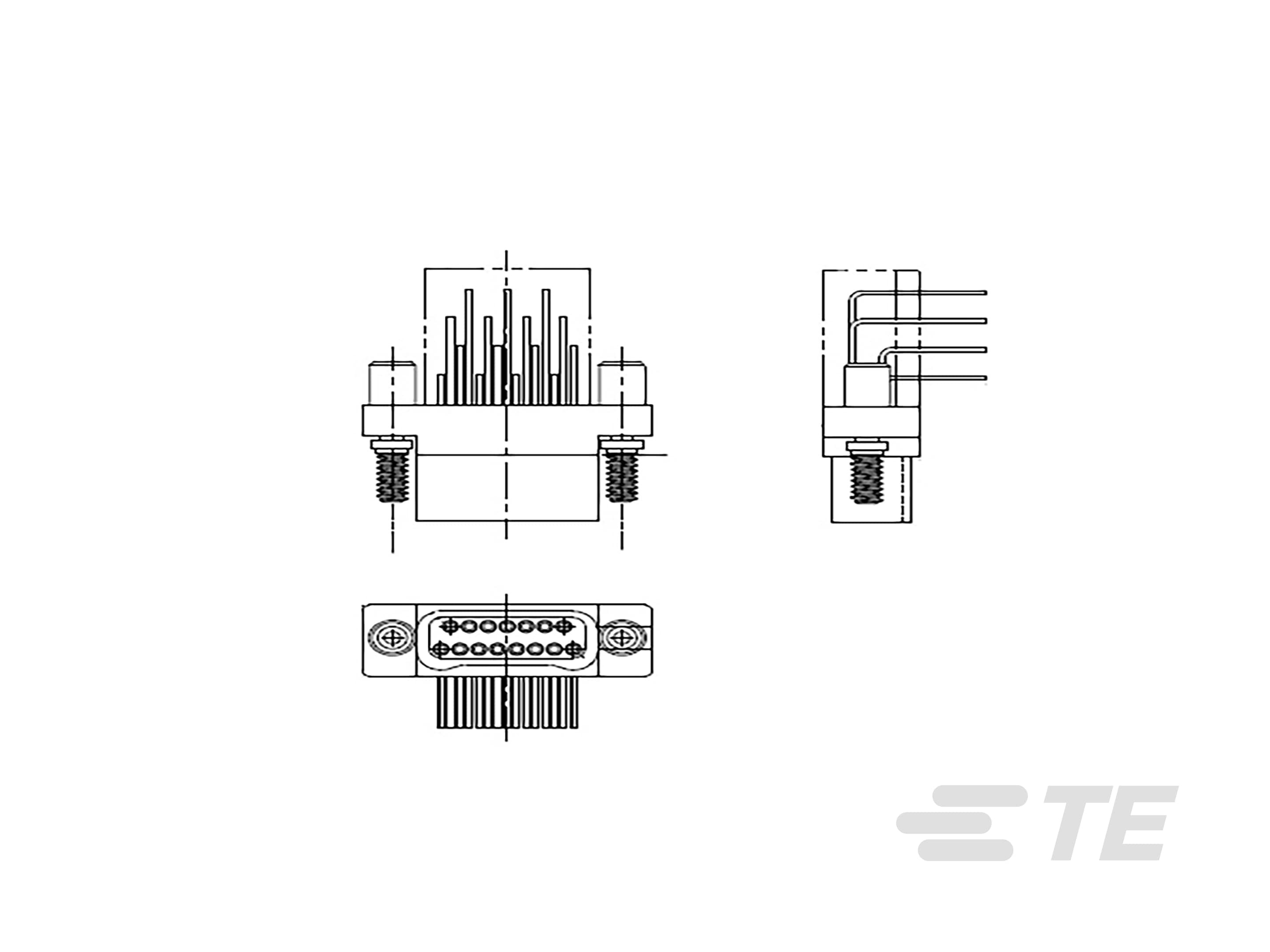

- PLUG ASSEMBLY, HORIZONTAL MOUNT, THROUGH HOLE, 2 TO 4 ROW, .050 SPACING, PLASTIC OR METAL English
- PLUG ASSEMBLY, HORIZONTAL MOUNT, THROUGH HOLE, 2 TO 4 ROW, .050 SPACING, PLASTIC OR METAL ENG_CD_1589481_U.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1589481-8_U.pdf 3D
- Customer View Model ENG_CVM_CVM_1589481-8_U.2d_dxf.zip English
- ENG_CVM_CVM_1589481-8_U.3d_igs.zip English
- ENG_CVM_CVM_1589481-8_U.3d_stp.zip English
Datasheets & Catalog Pages
- 1589481 Nanonics Cross Reference ENG_DS_1589481_1.pdf English
