160534-9

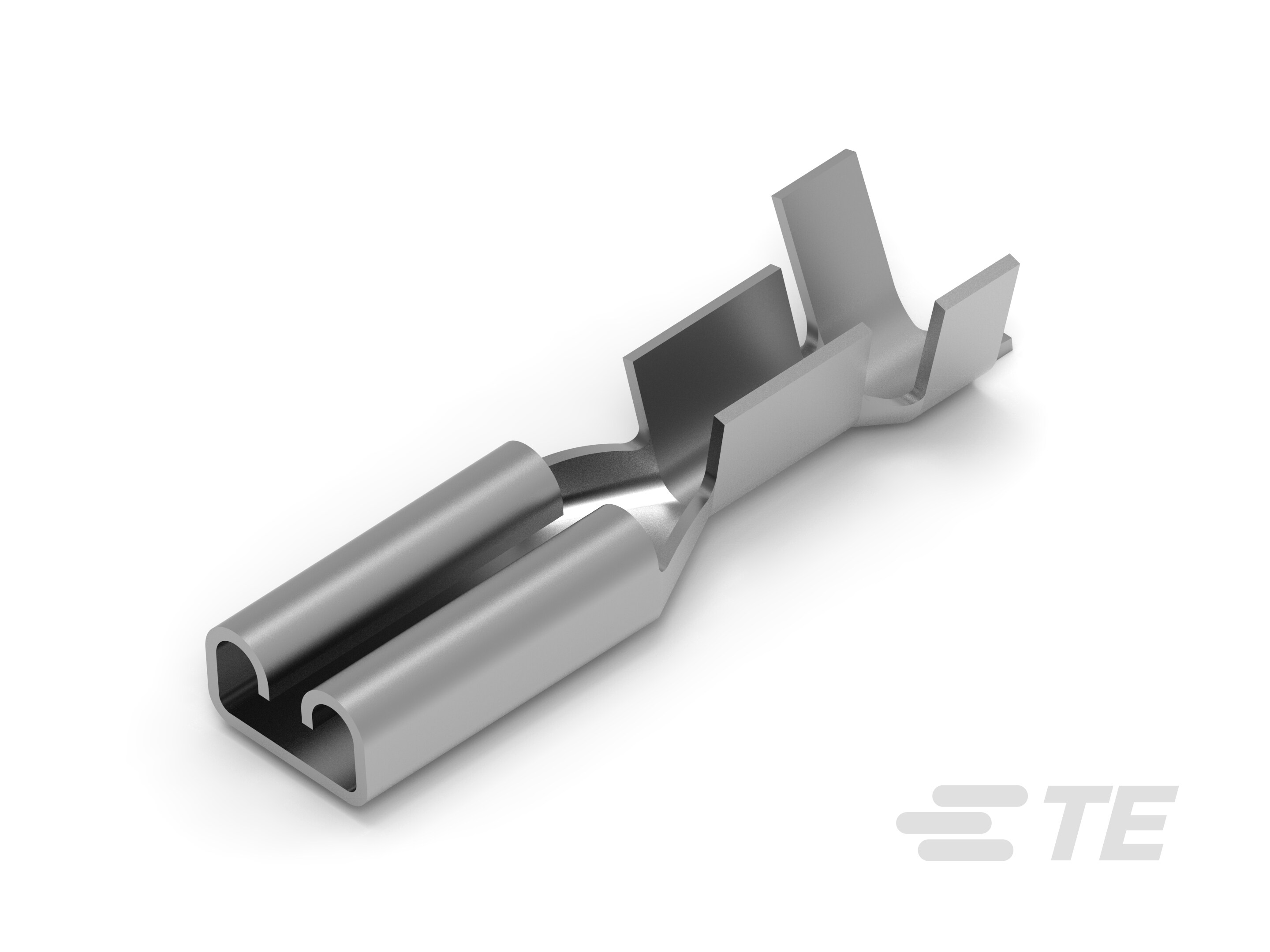

Quick Disconnect Receptacle, 20 – 17 AWG, .5 – 1 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Phosphor Bronze, Pre-Tin Plating, FASTON 110
160534-9
Quick Disconnect Receptacle, 20 – 17 AWG, .5 – 1 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Phosphor Bronze, Pre-Tin Plating, FASTON 110
-
- FASTON
- FASTON 110
- TE Internal #: 160534-9
- TE Internal Description: 110 FASTON,REC.,17-20 AWG,PTPHBZ
-
Quick Disconnect Terminal Type : Receptacle
-
Wire Size (AWG): 20 – 17
-
Wire Size (mm²): .5 – 1
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Mating Tab Thickness : .81 mm [ .032 in ]
Documents
Product Drawings
- .110 SRS FASTON RECEPTACLE. ENG_CD_160534_F4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_160534-9_T.pdf 3D
- Customer View Model ENG_CVM_CVM_160534-9_T.2d_dxf.zip English
- ENG_CVM_CVM_160534-9_T.3d_igs.zip English
- ENG_CVM_CVM_160534-9_T.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2036_F1.pdf English
- Product Specification S_108-5178_C1.tif English
- ENG_SS_108-5178_C1.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E66717_19840509_E.pdf English
