164533-4

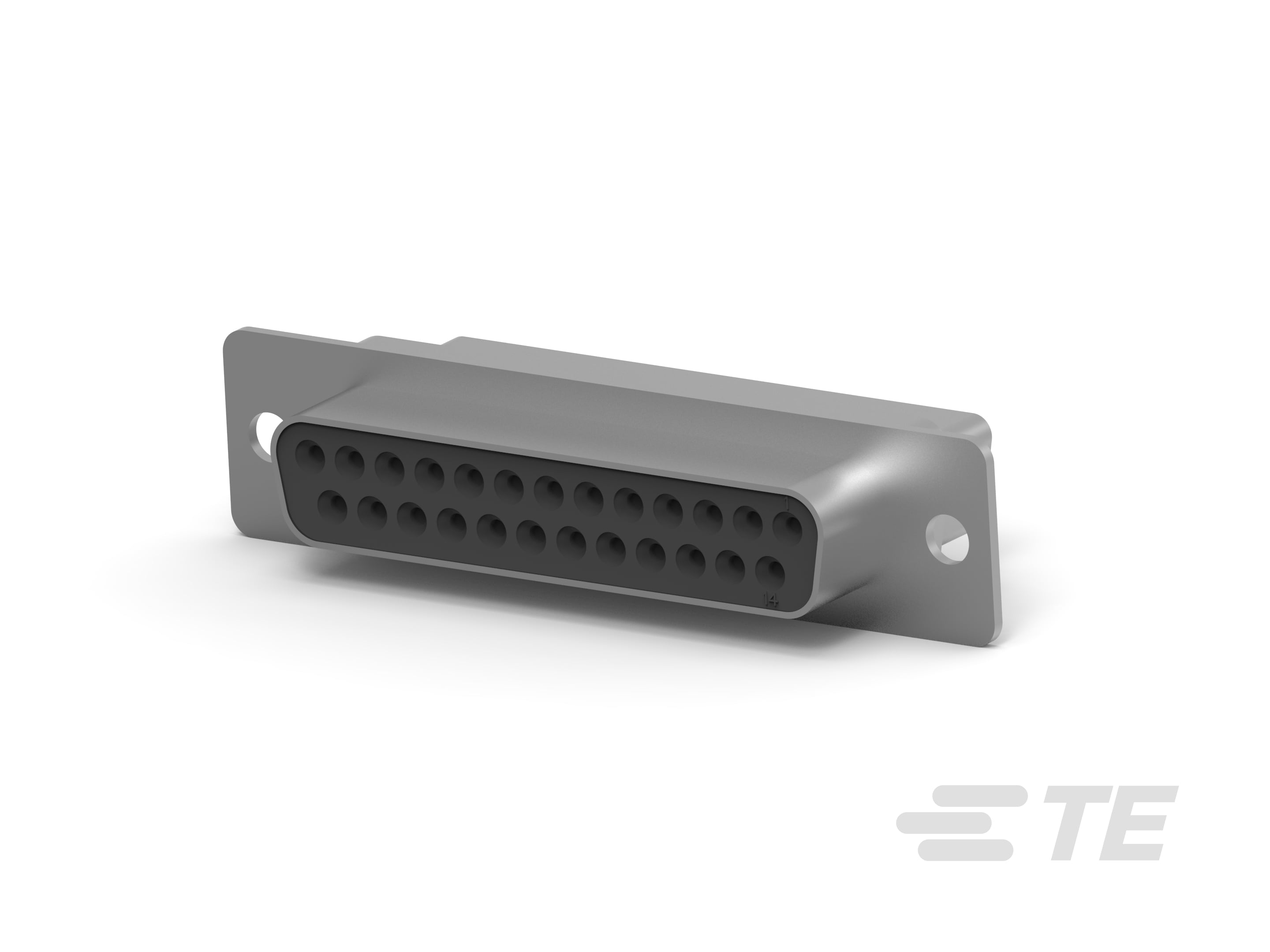

Receptacle, Cable-to-Cable, 25 Position, Size 20 Contact Size, 3 Connector Shell Size, Mating Retention, Shielded, Crimp D-Sub Connectors
164533-4
Receptacle, Cable-to-Cable, 25 Position, Size 20 Contact Size, 3 Connector Shell Size, Mating Retention, Shielded, Crimp D-Sub Connectors
-
- AMPLIMITE
- TE Internal #: 164533-4
- TE Internal Description: 25P.HDP20 REC.ASSY.
- All D-Sub Crimp Recpt Signal 25 Posn, Socket Size 20, Shell Size 3 (9)
-
Packaging Method : Box
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Primary Product Color : Black
-
Connector & Contact Terminates To : Wire & Cable
-
Connector Shell Size : 3
Documents
Product Drawings
- 25 POS HDP-20 RECEPTACLE CONNECTOR SIZE 3 ENG_CD_164533_P.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_164533-4_N.pdf 3D
- 3D_CVM_CVM_164533-4_P.pdf 3D
- Customer View Model ENG_CVM_164533-4_N.3d_igs.zip English
- ENG_CVM_164533-4_N.3d_stp.zip English
- ENG_CVM_164533-4_N.2d_dxf.zip English
- ENG_CVM_CVM_164533-4_P.2d_dxf.zip English
- ENG_CVM_CVM_164533-4_P.3d_igs.zip English
- ENG_CVM_CVM_164533-4_P.3d_stp.zip English
Datasheets & Catalog Pages
- AMPLIMITE Subminiature D Connectors - Subminiature D Connectors for Cable Mounting ENG_CS_82068_AMPLIMITE_Subminiature_D_Conns_0412.pdf English
Product Specifications
- Workmanship Specification POL_SS_101-85040_A.tif Polish
- POL_SS_101-85040_A.pdf Polish
