165303

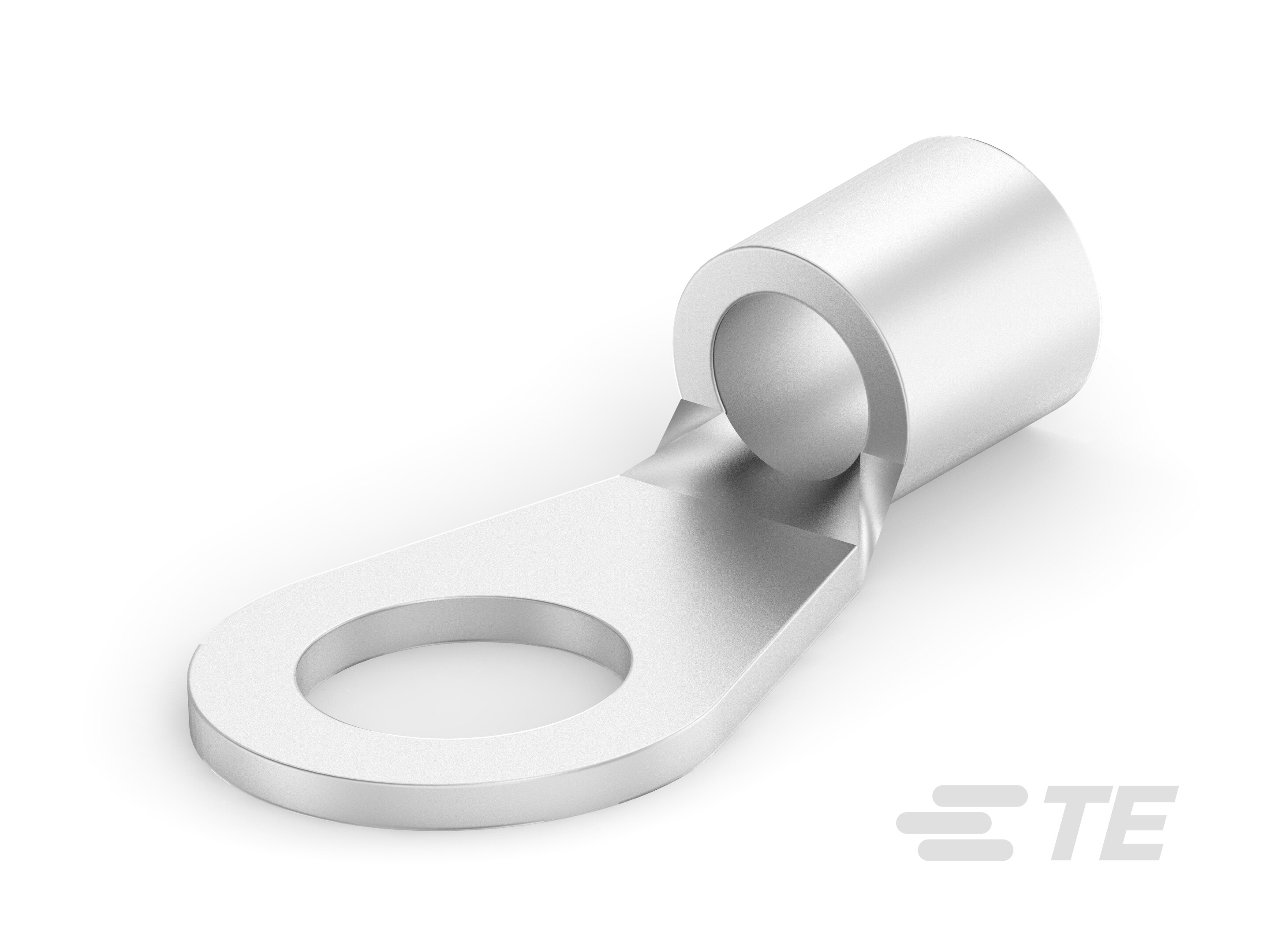

Closed Ring Tongue Terminal, 12 – 10 AWG, M6 Stud, 6.5 mm [.256 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
165303
Closed Ring Tongue Terminal, 12 – 10 AWG, M6 Stud, 6.5 mm [.256 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
-
- SOLISTRAND
- TE Internal #: 165303
- TE Internal Description: SOLIS DIN 4.0-6.0 R 1/4
- Alias #: E85923-000 AMPS-0-0165303-0
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Wire Size (AWG): 12 – 10
-
Wire Size (mm²): 4 – 6
-
Wire Size (CMA): 10383.311 – 16511.77
-
Stud Size : M6
Documents
Product Drawings
- ringtongue stud m6 ENG_CD_165303_C.pdf English
- ringtongue stud m6 English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_165303_C.pdf English
- 3D_CVM_CVM_165303_G.pdf 3D
- Customer View Model ENG_CVM_CVM_165303_G.2d_dxf.zip English
- ENG_CVM_CVM_165303_G.3d_igs.zip English
- ENG_CVM_CVM_165303_G.3d_stp.zip English
- ENG_CVM_165303_C.3d_igs.zip English
- ENG_CVM_165303_C.3d_stp.zip English
- ENG_CVM_165303_C.2d_dxf.zip English
