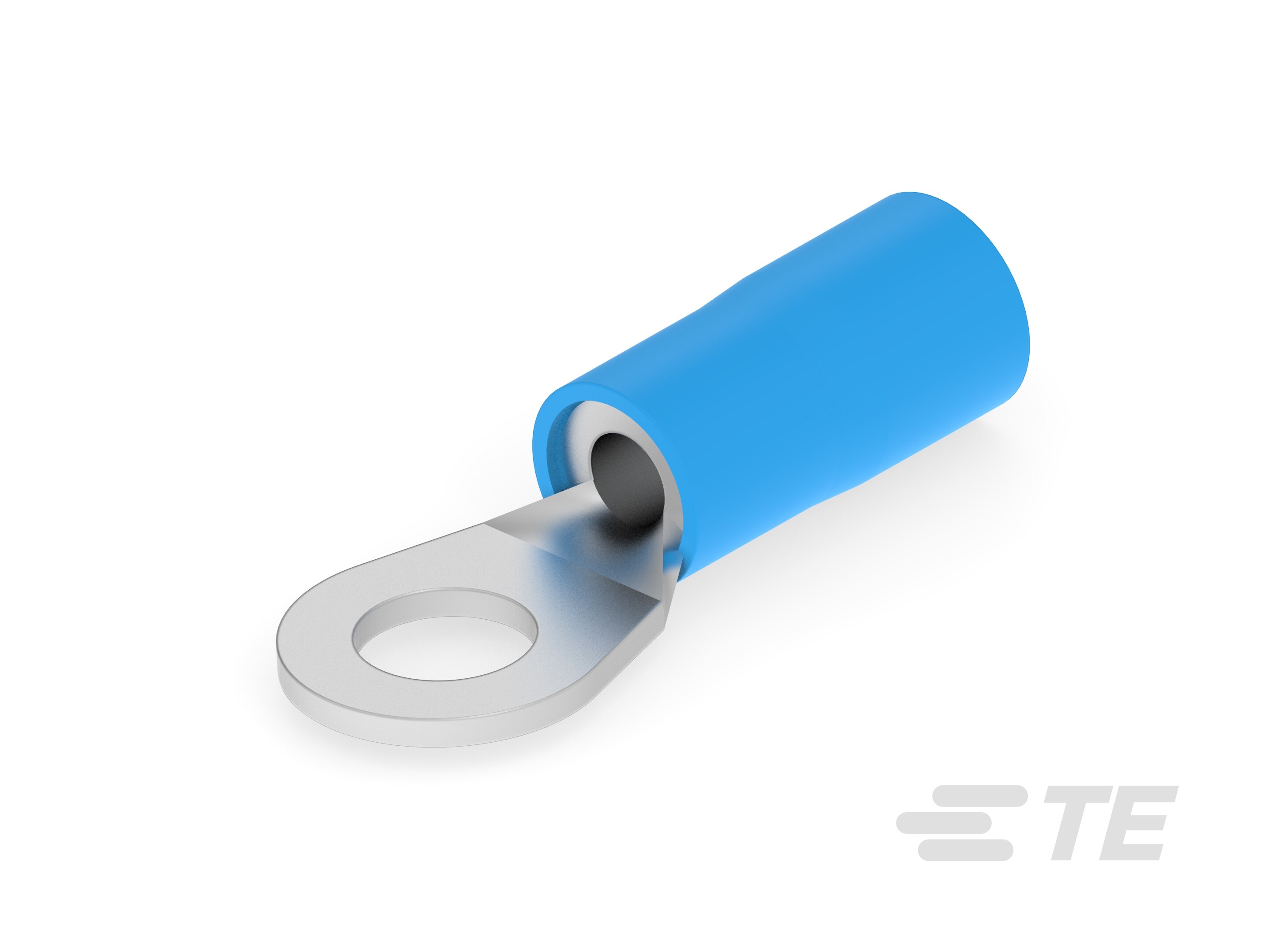

Closed Ring Tongue Terminal, 15.5 – 13.5 AWG, #4 / M4 Stud Size, 4.3 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin, PLASTI-GRIP
165408
Closed Ring Tongue Terminal, 15.5 – 13.5 AWG, #4 / M4 Stud Size, 4.3 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin, PLASTI-GRIP
-
- PLASTI-GRIP
- TE Internal #: 165408
- TE Internal Description: PG, RING, 1.5 - 2.5, M4, DIN
-
Packaging Method : Box
-
Operating Temperature Range : 105 °C [ 221 °F ]
-
Wire Size (AWG): 15.5 – 13.5
-
Ring Terminal Product Type : Closed Ring Tongue Terminal
-
Tongue Thickness : .79 mm [ .031 in ]
Documents
Product Drawings
- INSULATED RINGTONGUE FOR STUD M4 English
- INSULATED RINGTONGUE FOR STUD M4 C_165408_F1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_165408_F.pdf 3D
- Customer View Model ENG_CVM_CVM_165408_F.2d_dxf.zip English
- ENG_CVM_CVM_165408_F.3d_igs.zip English
- ENG_CVM_CVM_165408_F.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-2161_G.pdf English
