1658543-3

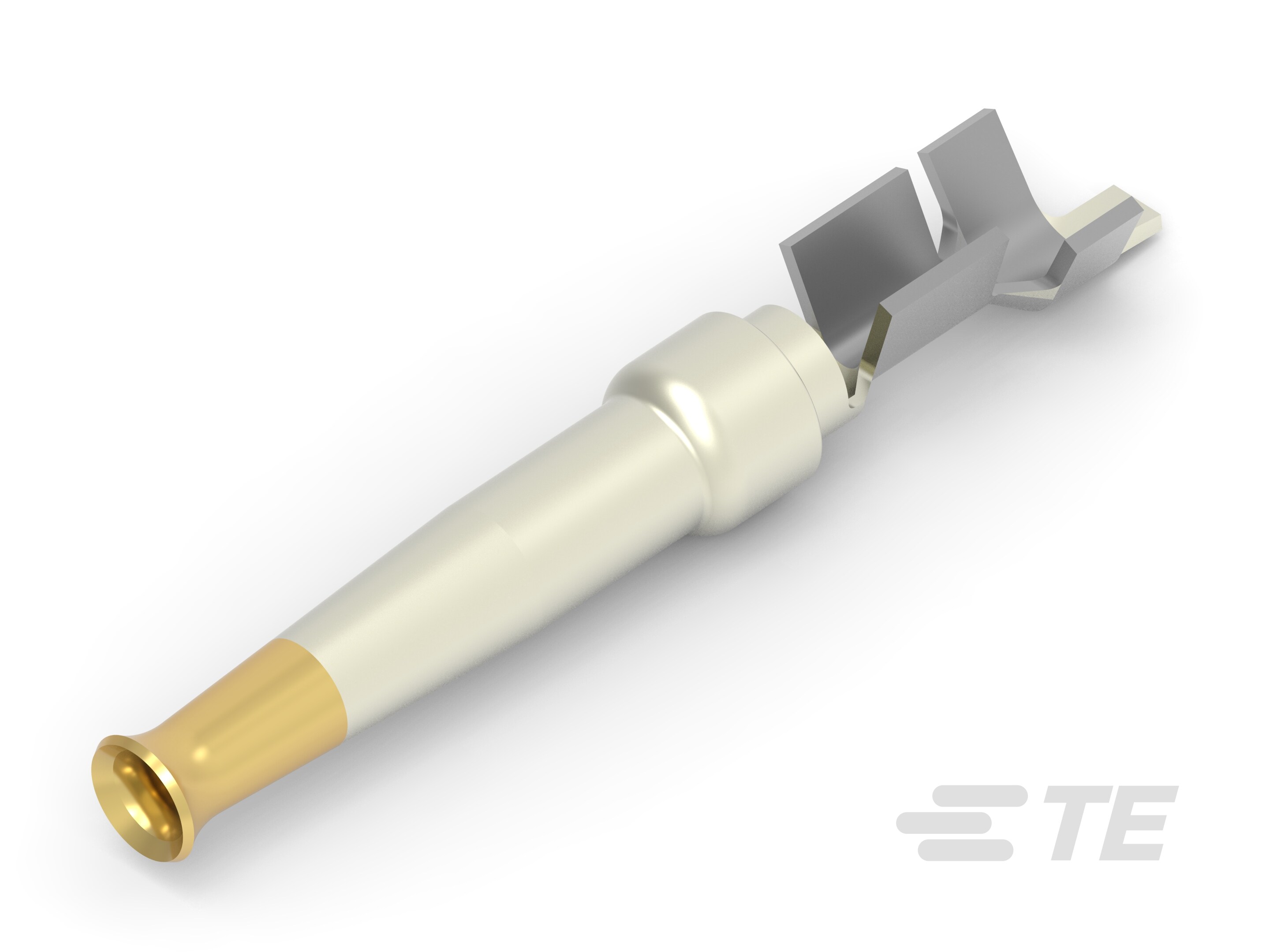

Socket Contact, Gold Flash, Snap-In Contact Retention, Size 20 Contact Size, 26 – 22 AWG Wire Size, .15 – .4 mm² Wire Size, Crimp, Phosphor Bronze
1658543-3
Socket Contact, Gold Flash, Snap-In Contact Retention, Size 20 Contact Size, 26 – 22 AWG Wire Size, .15 – .4 mm² Wire Size, Crimp, Phosphor Bronze
-
- AMPLIMITE
- TE Internal #: 1658543-3
- TE Internal Description: CONT,SOCKET,PLATED,20DF,STRIP,#22-26
- All D-Sub Conn Contacts: Socket, Phosphor Bronze, Signal, Size 20 (51)
-
Packaging Method : Strip
-
Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]
-
Wire Size (AWG): 26 – 22
-
Contact Color Bands : Yellow
-
Wire Insulation Support : With
Documents
Product Drawings
- SOCKET CONTACT, 20 DF, 22-26 AWG, AMPLIMITE English
- SOCKET CONTACT, 20 DF, 22-26 AWG, AMPLIMITE ENG_CD_1658543_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1658543-3_D.pdf 3D
- Customer View Model ENG_CVM_CVM_1658543-3_D.2d_dxf.zip English
- ENG_CVM_CVM_1658543-3_D.3d_igs.zip English
- ENG_CVM_CVM_1658543-3_D.3d_stp.zip English
Datasheets & Catalog Pages
- AMP Circular Connectors for Commercial Signal & Power Applications ENG_CS_82021_CPC_sections1-5_0807.pdf English
- ENG_CS_65910_Signal_Contacts_0707.pdf English
- ENG_CS_82068_AMPLIMITE_Cable_Connectors_0412.pdf English
- AMPLIMITE Cable Connectors and Shielding Hardware Kits QRG ENG_DS_1-1773963-5_AMPLIMITE_Cable_Conn_QRG_1018.pdf English
Product Specifications
- Application Specification ENG_SS_114-10000_V.pdf English
- ENG_SS_114-40030_D.pdf English
- Product Specification ENG_SS_108-40005_G.pdf English
- Qualification Test Report ENG_SS_501-99_C.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-7514_E.pdf English
