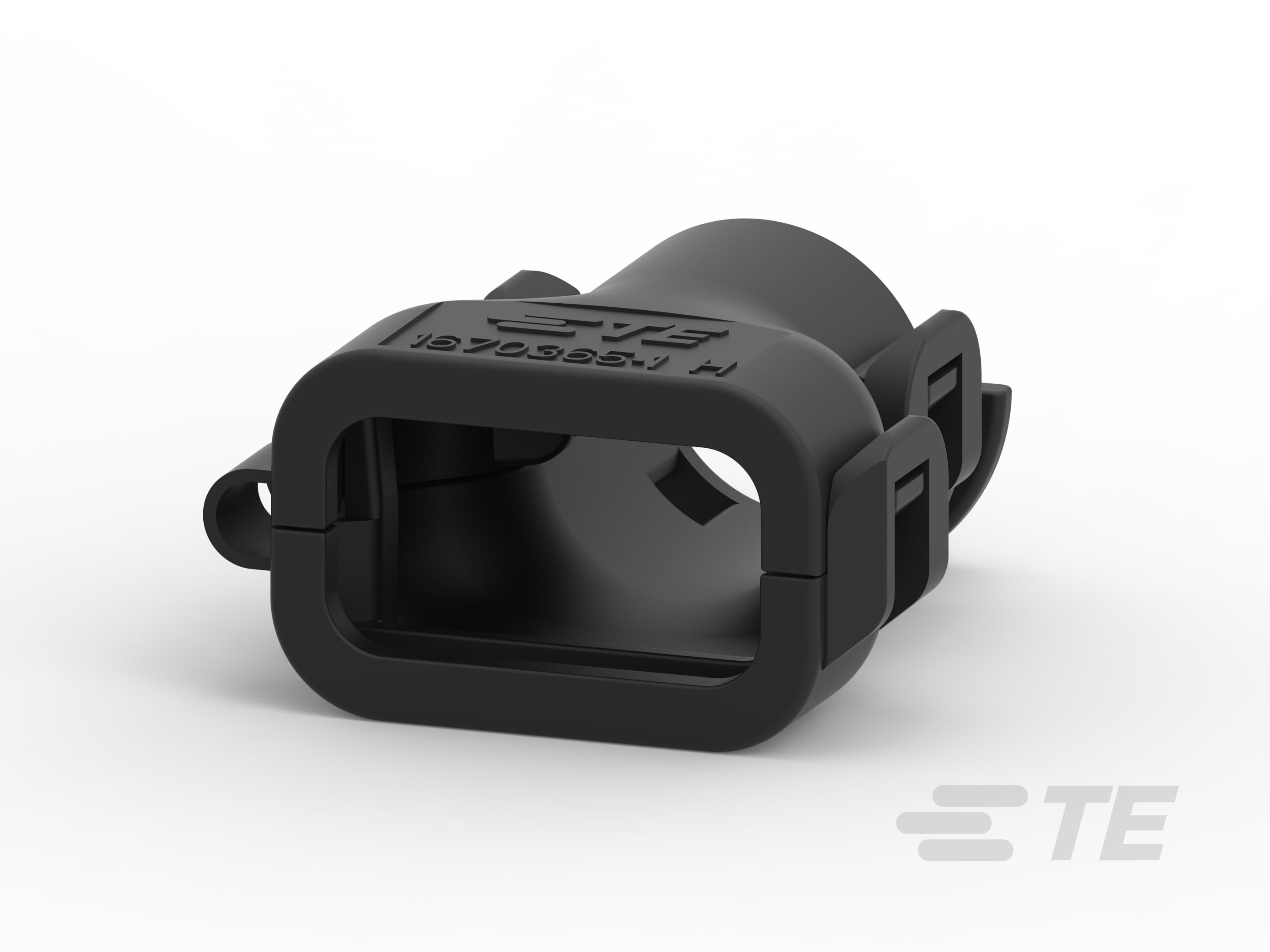

1670365-1
2 / 3 Position, Black, Cover - Cable Exit, PA, 180° Cable Exit, -40 – 120 °C [-40 – 248 °F], Heavy Duty Sealed Connector Series
1670365-1
2 / 3 Position, Black, Cover - Cable Exit, PA, 180° Cable Exit, -40 – 120 °C [-40 – 248 °F], Heavy Duty Sealed Connector Series
-
- AMP
- Heavy Duty Sealed Connector Series
- TE Internal #: 1670365-1
- TE Internal Description: COVER MIXED,180,2-3POS,BK
- All Heavy Duty Sealed Connector Series Backshells (8)
-
Number of Positions : 2, 3
-
Primary Product Color : Black
-
Protection & Strain Relief Accessory Type : Cover - Cable Exit
-
Primary Product Material : PA
-
Cable Exit Angle : 180°
Documents
Product Drawings
- COVER 180 Kappe 180 Grad HDSCS - GROUP A ENG_CD_1670365_H3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1670365-1_H.pdf 3D
- Customer View Model ENG_CVM_CVM_1670365-1_H.2d_dxf.zip English
- ENG_CVM_CVM_1670365-1_H.3d_igs.zip English
- ENG_CVM_CVM_1670365-1_H.3d_stp.zip English
Datasheets & Catalog Pages
- Heavy Duty Sealed Connector Series ENG_CS_ict-hdscs-cat-a4-1-1773971-7-en_A.pdf English
- HDSCS CAN Bus Y-Connector and 120 Resistor Brochure ENG_DS_1-1773958-6_A1.pdf English
- HDSCS Catalog ENG_DS_1-1773971-7_A.pdf English
- ICT Terminals and Connectors Catalogue ENG_DS_1-1773950-7_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-18756_F1.pdf English
- Product Specification ENG_SS_108-94020_E2.pdf English
