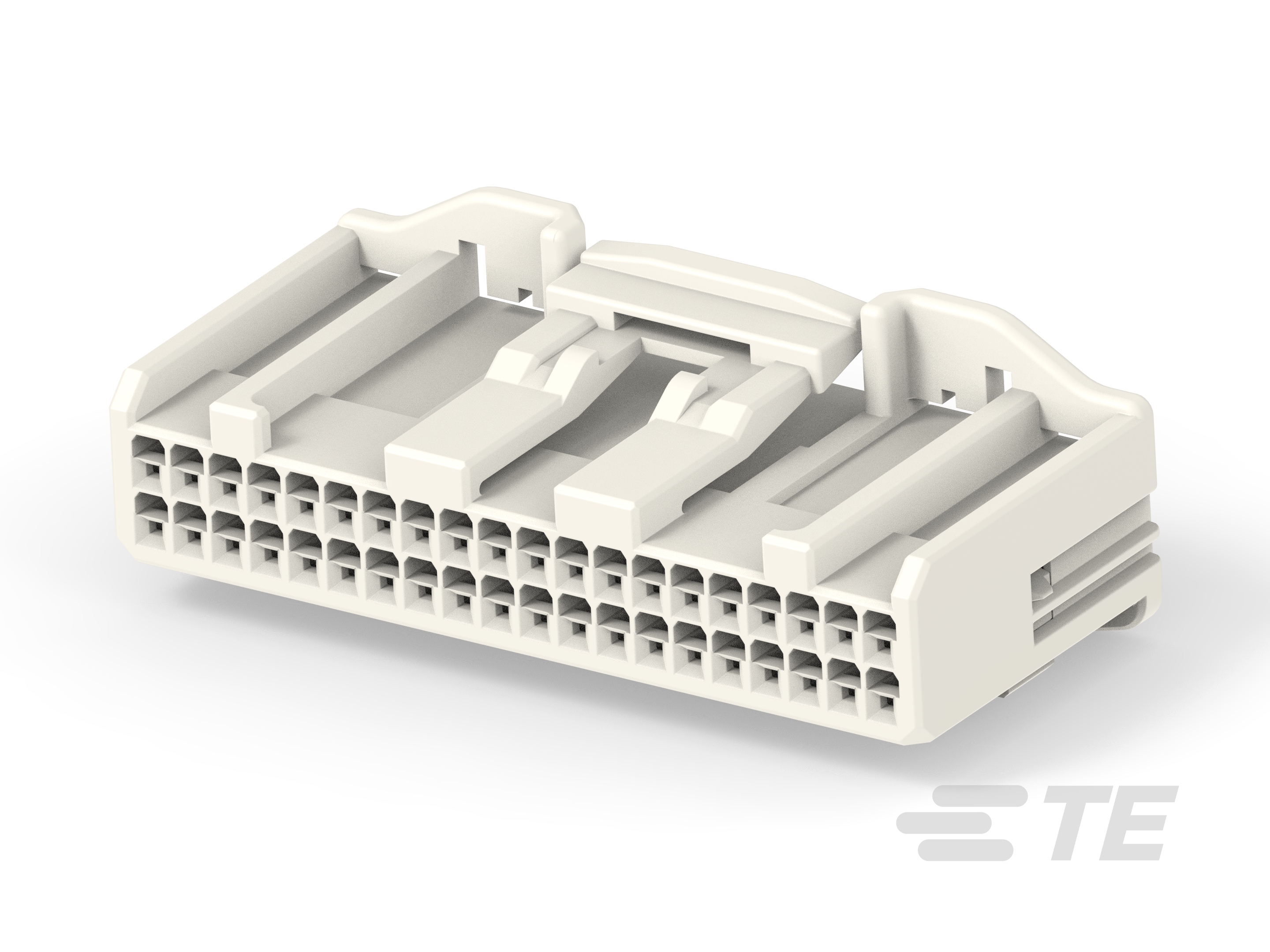

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 40

• Number of Rows : 2

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Cable Exit Angle : 180°

• Primary Product Color : Natural

• Contact Type : Receptacle

• Contact Size : .64mm

• Mating Tab Width : .64 mm [ .025 in ]

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PBT

• Centerline (Pitch) : 2.2 mm [ .09 in ]

• Connector Height : 15.8 mm [ .62 in ]

• Product Length : 46.2 mm [ 1.82 in ]

• Product Width : 21 mm [ .83 in ]

• Row-to-Row Spacing : 3 mm [ .12 in ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Bag

• Packaging Quantity : 100
