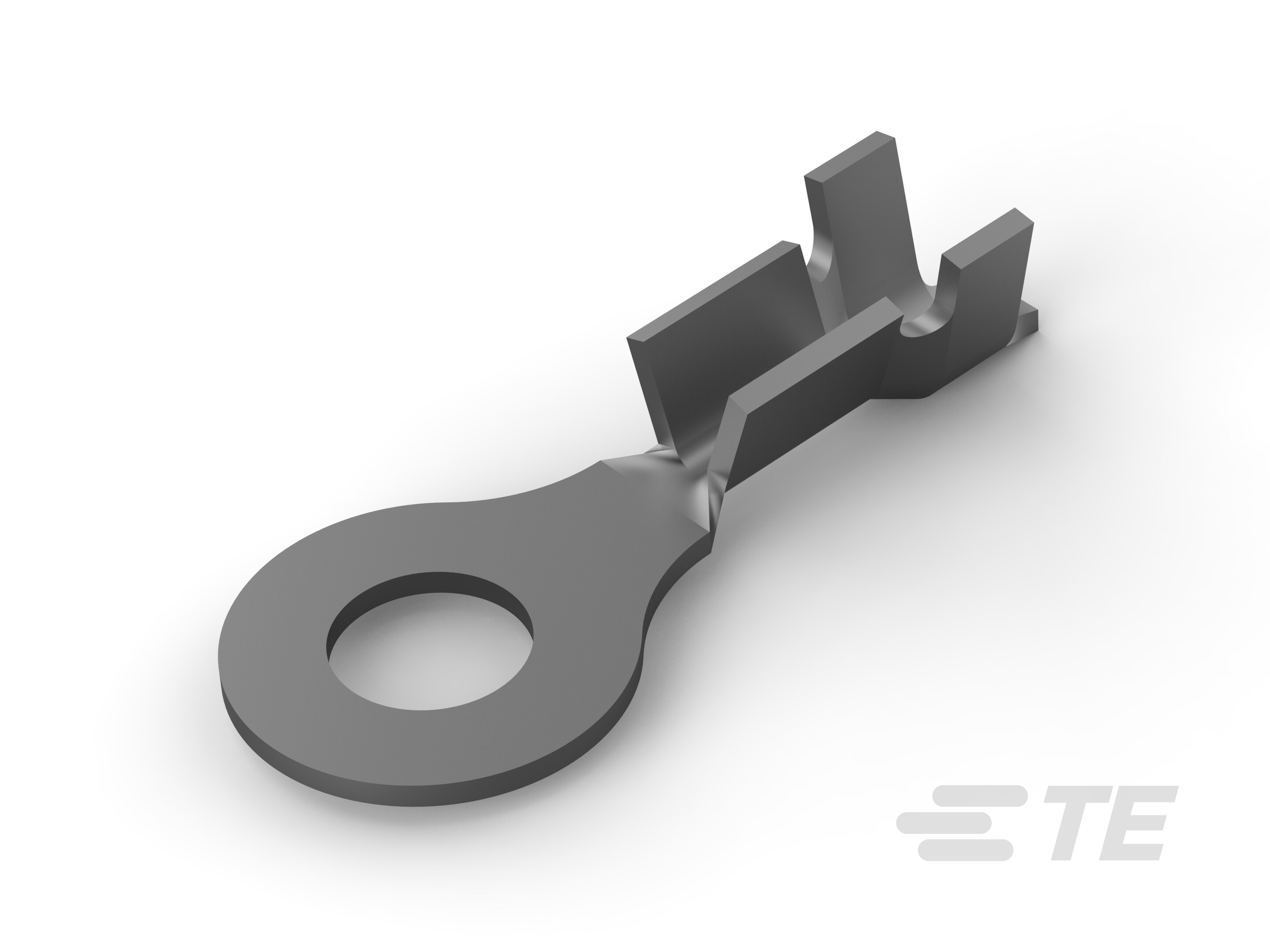

• Shape Description : Circular/Oval

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 6, M3.5

• Sealable : No

• Compatible With Discrete Wire Type : Stranded

• Wire Insulation Support Retention Type : Insulation Support

• Number of Holes : 1

• Contact Base Material : Brass

• Barrel Type : Open

• Terminal Orientation : Straight

• Terminal Plating Material : Tin

• Contact Underplating Material : None

• Wire Insulation Support : With

• Compatible Insulation Diameter (Min) (in): .059

• Wire Size (AWG): 22 – 18

• Wire Size (mm²): .3 – .9

• Wire Size (CMA): 509 – 3260

• Stud Diameter : 3.7 mm [ .146 in ]

• Tongue Thickness : .51 mm [ .02 in ]

• Product Length : 17.78 mm [ .7 in ]

• Barrel Inside Diameter (mm): .89, 2.16

• Barrel Inside Diameter (in): .035, .085

• Compatible Insulation Diameter (Max) : .3 mm [ .118 in ]

• Compatible Insulation Diameter Range : 1.5 – 3 mm [ .059 – .118 in ]

• Insulation Option : Uninsulated

• Operating Temperature Range : -40 – 110 °C [ -40 – 230 °F ]

• Compatible With Wire Base Material : Copper

• Government Qualified Terminal : No
