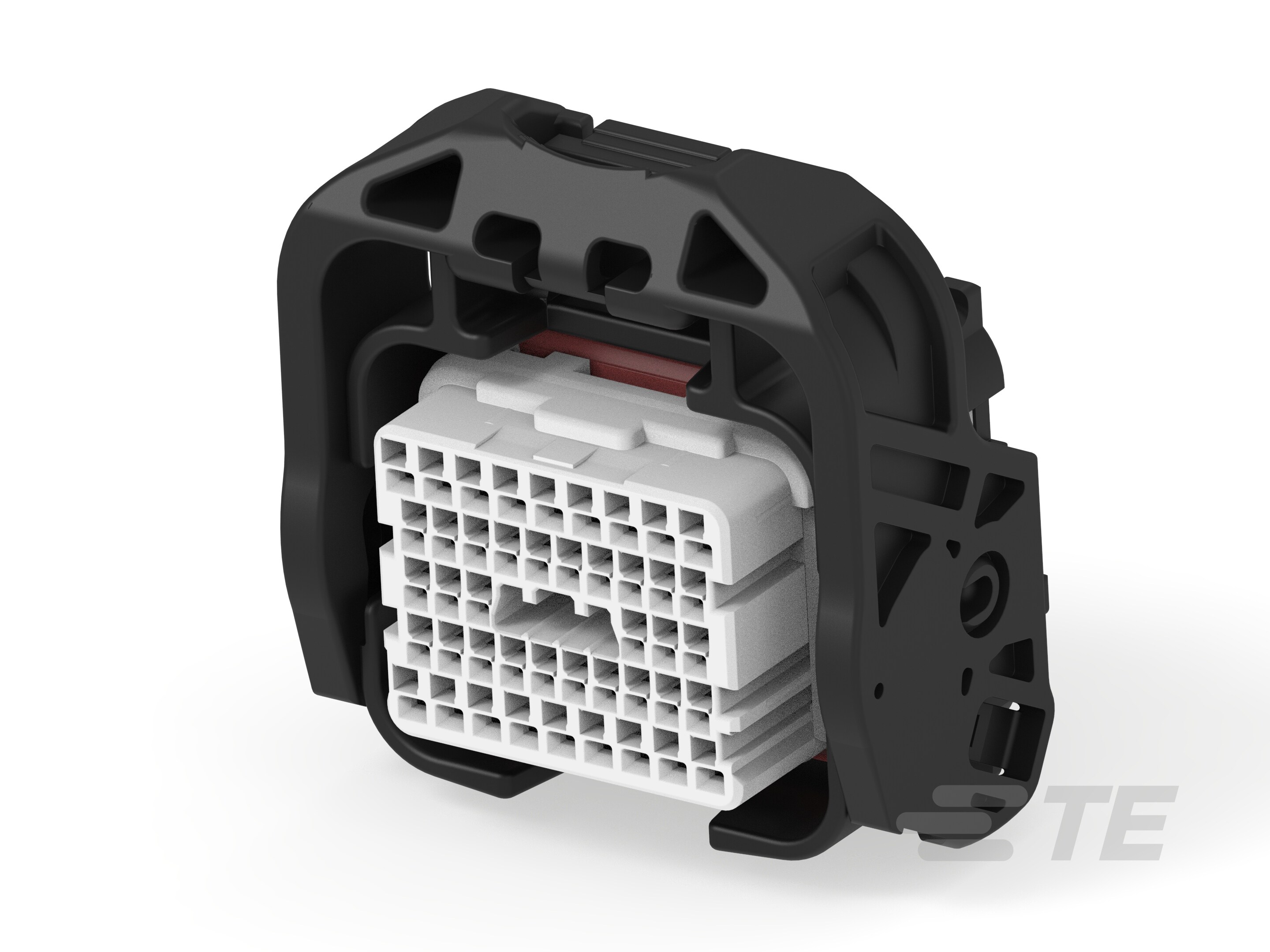

Housing for Female Terminals, Wire-to-Board, 44 Position, 2.5 mm / 3 mm [.098 in / .118 in] Centerline, Sealable, White, 0.64/025 Connector System
1717138-6
Housing for Female Terminals, Wire-to-Board, 44 Position, 2.5 mm / 3 mm [.098 in / .118 in] Centerline, Sealable, White, 0.64/025 Connector System
-
- AMP
- 0.64/025 Connector System
- TE Internal #: 1717138-6
- TE Internal Description: 025/040 SEALED 44POS PLUG ASSY
- All TH/.025 CONNECTOR SYSTEM, HOUSING (177)
-
Connector System : Wire-to-Board
-
Number of Positions : 44
-
Connector & Housing Type : Housing for Female Terminals
-
Centerline (Pitch) (mm): 2.5, 3
-
Centerline (Pitch) (in): .098, .118
-
Sealable : Yes
