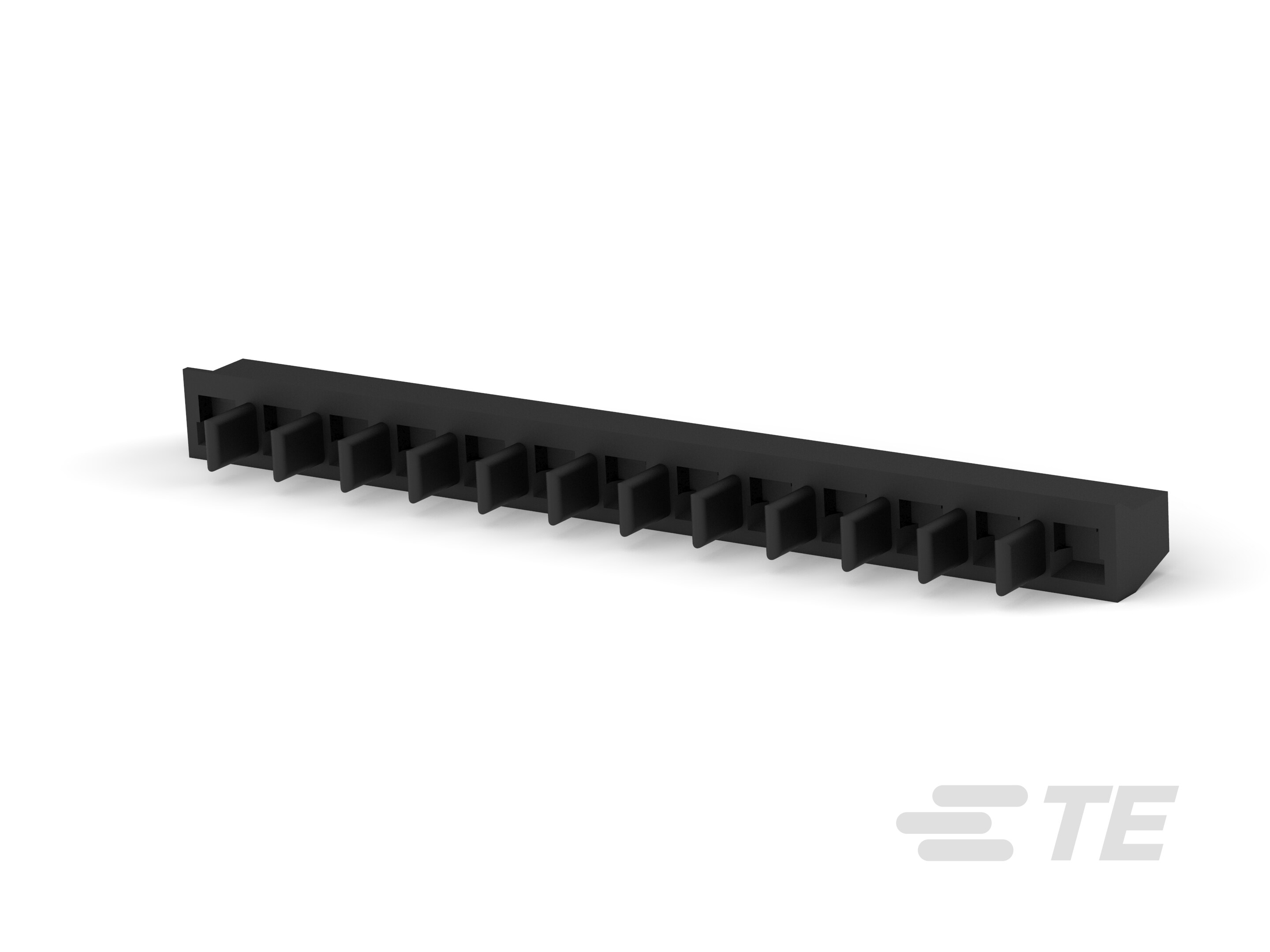

Board-In PCB Mount One-Piece Crimp Connector, Vertical, Wire-to-Board, 13 Position, 4 mm [.157 in] Centerline, Through Hole - Solder, Black, Signal
172020-1
Board-In PCB Mount One-Piece Crimp Connector, Vertical, Wire-to-Board, 13 Position, 4 mm [.157 in] Centerline, Through Hole - Solder, Black, Signal
-
- AMP-IN
- TE Internal #: 172020-1
- TE Internal Description: 13P MINI AMPIN HEADER HSG
-
PCB Connector Type : PCB Mount One-Piece Crimp Connector
-
PCB Mount Orientation : Vertical
-
Connector System : Wire-to-Board
-
Number of Positions : 13
-
Centerline (Pitch) : 4 mm [ .157 in ]
