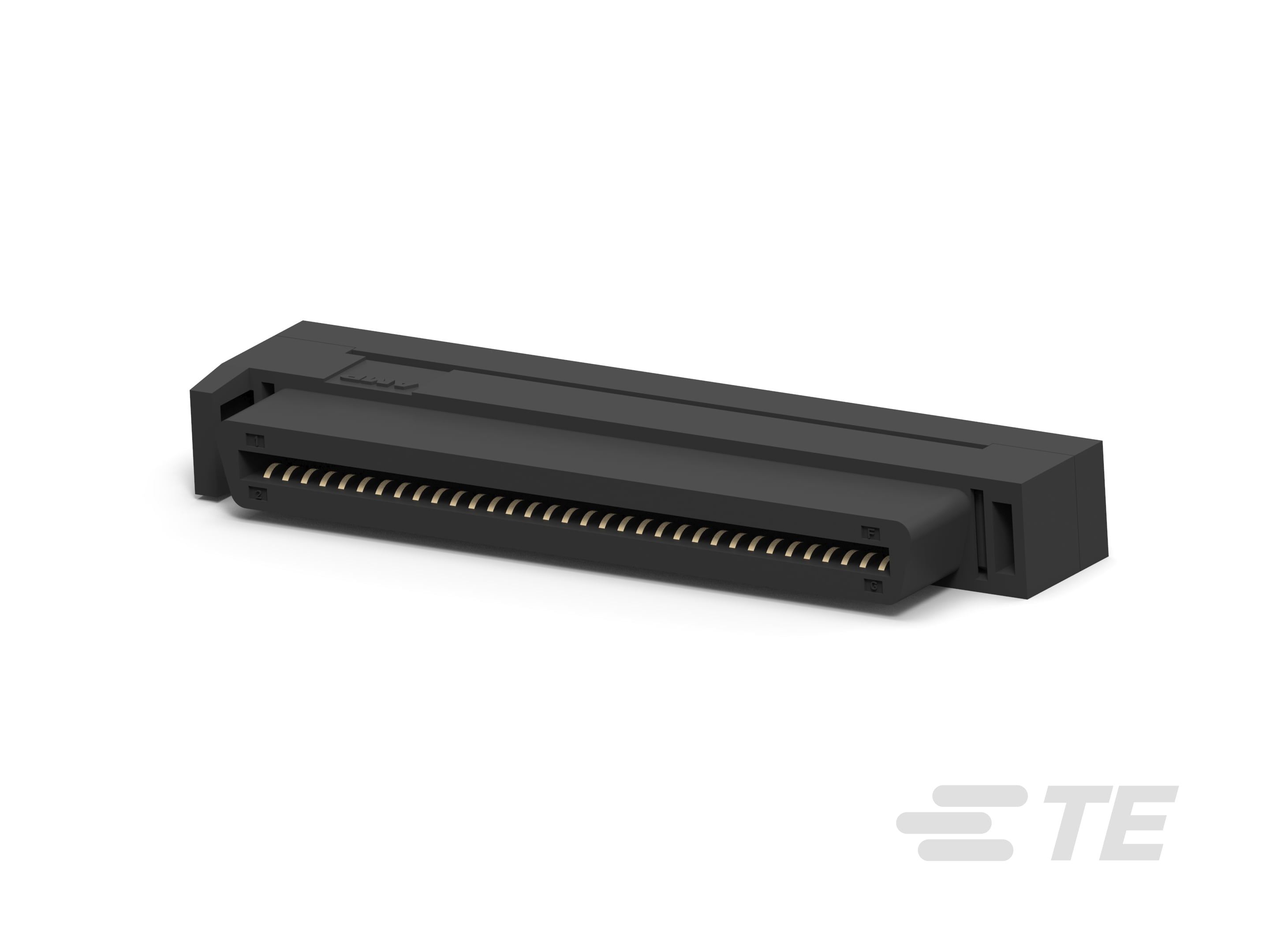

1734098-7
68 Position D-Shaped Connector, Receptacle, Wire-to-Board, Cable Mount (Free-Hanging), 1.27 mm [.05 in] Centerline, Wire & Cable, CHAMP .050 Series I
1734098-7
68 Position D-Shaped Connector, Receptacle, Wire-to-Board, Cable Mount (Free-Hanging), 1.27 mm [.05 in] Centerline, Wire & Cable, CHAMP .050 Series I
-
- CHAMP
- CHAMP .050 Series I
- TE Internal #: 1734098-7
- TE Internal Description: Champ050 68p A/P RCPT 25CL PB
-
Number of Positions : 68
-
Connector & Housing Type : Receptacle
-
Connector System : Wire-to-Board
-
Connector Mounting Type : Cable Mount (Free-Hanging)
-
Centerline (Pitch) : 1.27 mm [ .05 in ]
Documents
Product Drawings
- RECEPTACLE ASSEMBLY, RIBBON CABLE, .025 CHAMP .050, SERIES I ENG_CD_1734098_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1734098-7_B.pdf 3D
- Customer View Model ENG_CVM_CVM_1734098-7_B.2d_dxf.zip English
- ENG_CVM_CVM_1734098-7_B.3d_igs.zip English
- ENG_CVM_CVM_1734098-7_B.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-6064_B.pdf English
- Product Specification ENG_SS_108-1545_B.pdf English
- ENG_SS_108-57896_A.pdf English
- Qualification Test Report ENG_SS_501-118018_A.pdf English
