Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

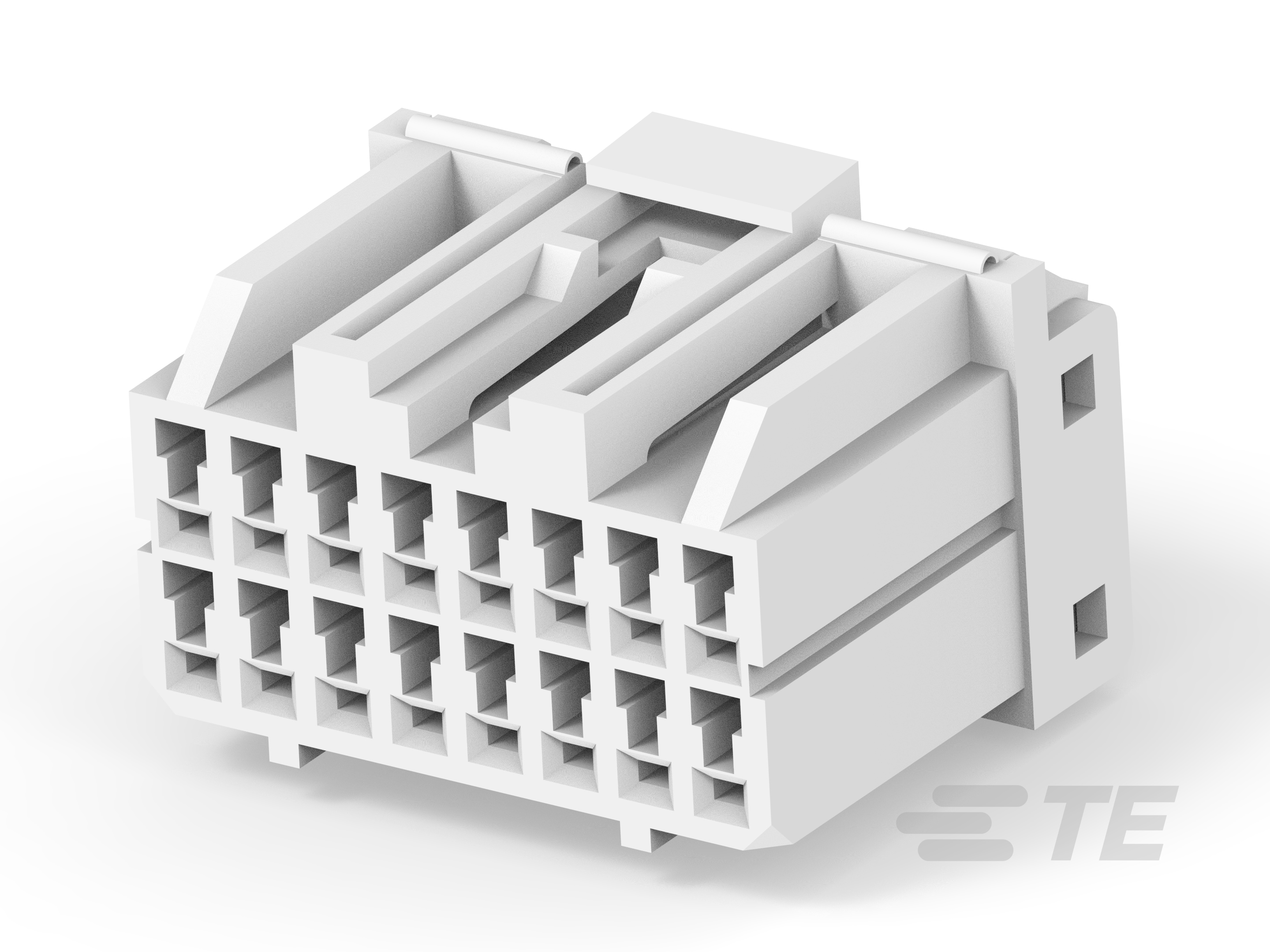

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : No

• Connector System : Wire-to-Device, Wire-to-Board

• Mixed & Hybrid Connector : No

• Number of Positions : 16

• Number of Rows : 2

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Natural

• Cable Exit Angle : 180°

• Mating Tab Width (mm): 1, 1.8

• Mating Tab Width (in): .039, .071

• Contact Size : 1mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Polarized

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PBT

• Centerline (Pitch) : 3 mm [ .118 in ]

• Product Width : 25.6 mm [ 1.008 in ]

• Connector Height : 30.4 mm [ 1.197 in ]

• Product Length : 21 mm [ .827 in ]

• Row-to-Row Spacing (mm): 3, 3.2

• Row-to-Row Spacing (in): .118, .126

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Bag

• Packaging Quantity : 100
