1761028-2

Active

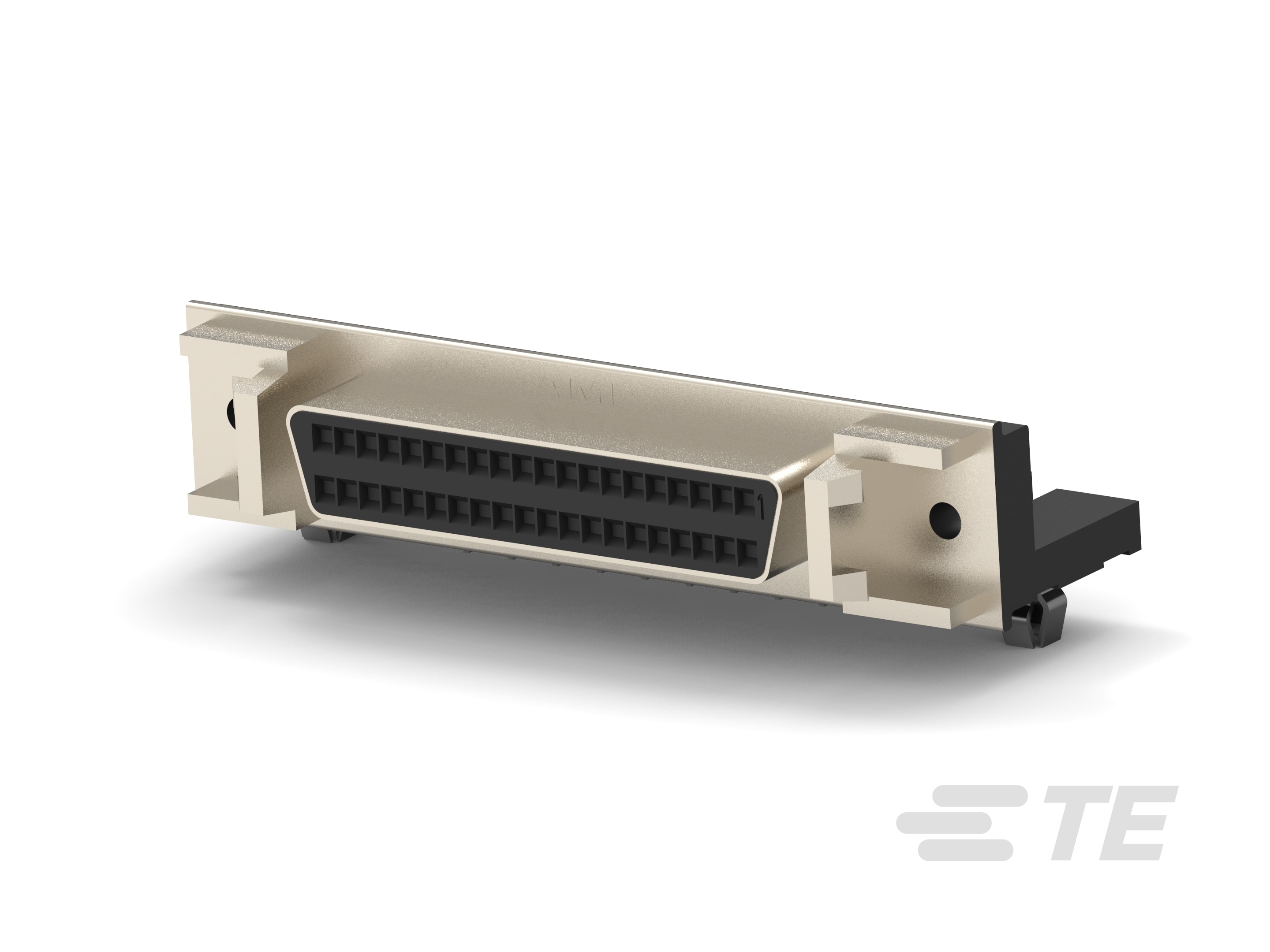

Receptacle, Cable-to-Board, 40 Position, 1.27 mm [.05 in] Centerline, 2 Row, Standard Profile, AMPLIMITE 0.50 Series, PCB D-Sub Connectors

1761028-2

Active

Receptacle, Cable-to-Board, 40 Position, 1.27 mm [.05 in] Centerline, 2 Row, Standard Profile, AMPLIMITE 0.50 Series, PCB D-Sub Connectors

- AMPLIMITE
- AMPLIMITE 0.50 Series

TE Internal #: 1761028-2
TE Internal Description: 40 50SR R/A RCPT ASSY,LEAD FREE
All D-Sub Receptacle Assembly: Right Angle, 1.27mm (74)

Connector & Housing Type : Receptacle
Connector System : Cable-to-Board
Number of Positions : 40
Centerline (Pitch) : 1.27 mm [ .05 in ]
Number of Rows : 2

See All Features

More Less

Get Free Samples
Compatible Parts & Tooling

Documents

Product Drawings

RECEPTACLE ASSEMBLY, SHIELDED, RIGHT ANGLE, RAILED, .050 SERIES, AMPLIMITE ENG_CD_1761028_D.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_1761028-2_C.pdf 3D
Customer View Model ENG_CVM_CVM_1761028-2_C.2d_dxf.zip English
ENG_CVM_CVM_1761028-2_C.3d_igs.zip English
ENG_CVM_CVM_1761028-2_C.3d_stp.zip English

Datasheets & Catalog Pages

AMPLIMITE Subminiature D Connectors - .050 Series Connector ENG_CS_82068_AMPLIMITE_.050_Series_Connector_0412.pdf English
AMPLIMITE .050 Series D-sub Connectors QRG ENG_DS_1-1773938-5_AMPLIMITE_.050_Series_QRG_0918.pdf English

Product Specifications

Application Specification ENG_SS_114-40029_J.pdf English
Product Specification ENG_SS_108-1228_F.pdf English
Qualification Test Report ENG_SS_501-155_C.pdf English

Agency Approvals

UL ENG_AAD_UL_E28476_19890420_A1.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Contact Features

Contact Mating Area Plating Material Thickness (µin): 30
Contact Current Rating (Max) (A): 1
PCB Contact Termination Area Plating Material : Tin over Nickel
Contact Base Material : Phosphor Bronze
Contact Mating Area Plating Material : Gold Flash, Gold
Contact Options : Installed
Contact Underplating Material : Palladium Nickel

Product Type Features

Connector & Housing Type : Receptacle
Connector System : Cable-to-Board
Connector & Contact Terminates To : Printed Circuit Board
Shell Material Configuration : Full Metal Shell

Configuration Features

Number of Positions : 40
Number of Rows : 2
PCB Mount Orientation : Right Angle

Housing Features

Centerline (Pitch) : 1.27 mm [ .05 in ]
Shell Material : Steel
Housing Material : Thermoplastic

Dimensions

Row-to-Row Spacing : 2.54 mm [ .1 in ]
PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

Body Features

Connector Profile : Standard
Primary Product Color : Black
Shell Plating Material : Tin
Shell Plating Finish : Bright
Assembly Process Feature Material : Copper Alloy

Mechanical Attachment

PCB Mount Retention : With
PCB Mount Retention Type : Boardlock
Mating Retention : With
Mating Retention Type : Latch
Connector Mounting Type : Board Mount
Assembly Process Feature Plating Material : Tin over Nickel
PCB Mount Alignment : Without
Mating Alignment : With
Mating Alignment Type : Rails
Mounting Hole Diameter (mm): 2.77
Mounting Feature Material : Zinc
Mounting Feature Plating Material : Nickel over Copper

Operation/Application

Circuit Application : Signal
Shielded : Yes

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Other

EU RoHS Compliance : Compliant
EU ELV Compliance : Compliant

Termination Features

Termination Post & Tail Length : 2.54 mm [ .1 in ]
Termination Method to PCB : Through Hole - Solder
Rectangular Termination Post & Tail Thickness : .3 mm [ .011 in ]
Rectangular Termination Post & Tail Width : .41 mm [ .016 in ]

Industry Standards

UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Method : Tube
Packaging Quantity : 11
