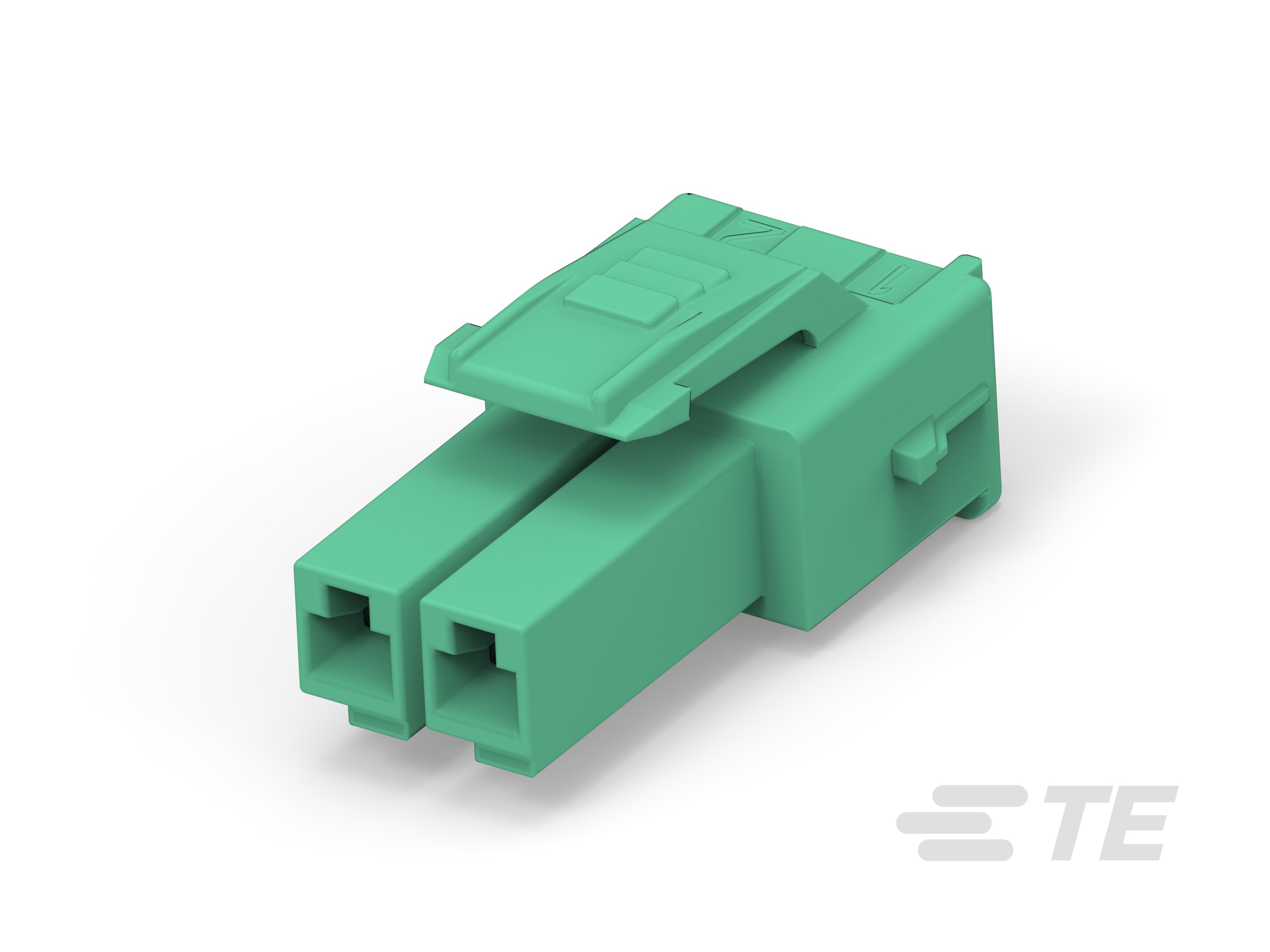

Housing, Plug, Wire-to-Wire, 2 Position, 3.96 mm [.156 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
177898-5
Housing, Plug, Wire-to-Wire, 2 Position, 3.96 mm [.156 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
-
- Power Double Lock
- TE Internal #: 177898-5
- TE Internal Description: POWER DBL LOCK CONN PLUG 2P
- All STD Temp Power Double Lock Plug (66)
-
Rectangular Power Connector Type : Housing
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Wire
-
Number of Positions : 2
-
Centerline (Pitch) : 3.96 mm [ .156 in ]
