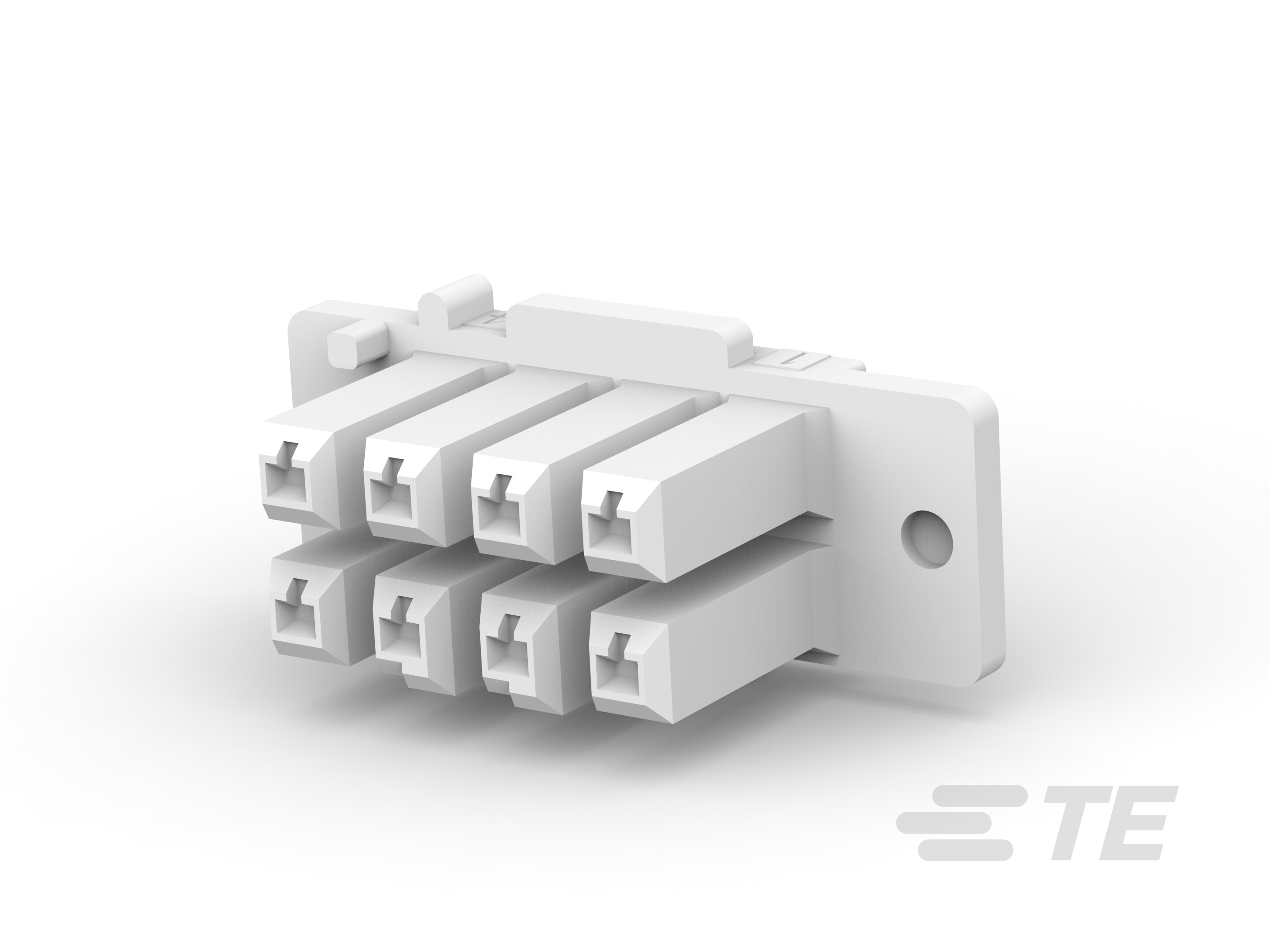

Housing, Plug, Wire-to-Wire, 8 Position, 6.9 mm [.271 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
179803-1
Housing, Plug, Wire-to-Wire, 8 Position, 6.9 mm [.271 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
-
- Power Double Lock
- TE Internal #: 179803-1
- TE Internal Description: POWER FLOATING PLUG HSG 8P
- All STD Temp Power Double Lock Plug (66)
-
Rectangular Power Connector Type : Housing
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Wire
-
Number of Positions : 8
-
Centerline (Pitch) : 6.9 mm [ .271 in ]
