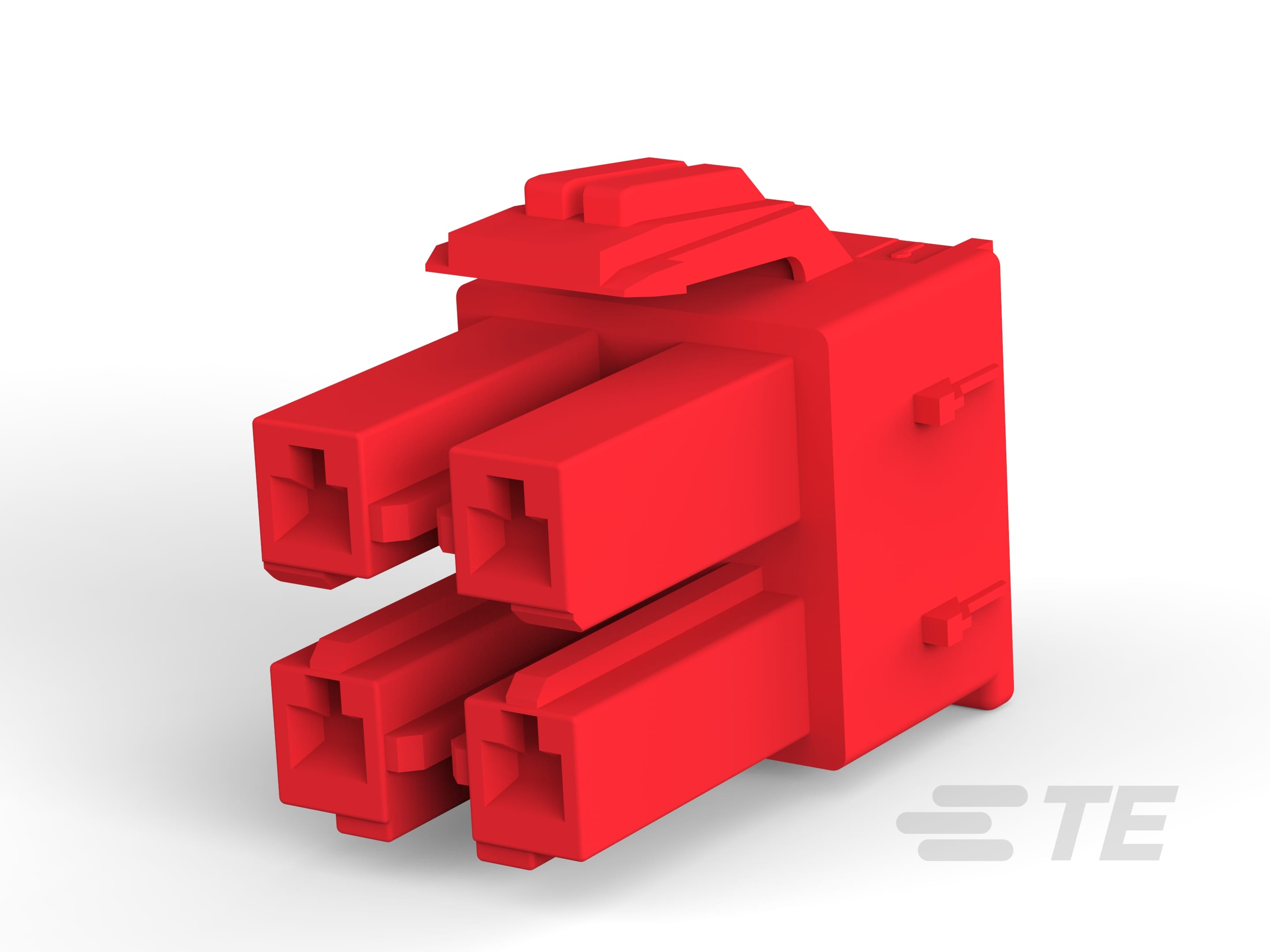

179861-2
Housing, Plug, Wire-to-Board, 4 Position, 6.5 mm [.255 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
179861-2
Housing, Plug, Wire-to-Board, 4 Position, 6.5 mm [.255 in] Centerline, Wire & Cable, UL 94V-0, Power Double Lock, Rectangular Power Connectors
-
- Power Double Lock
- TE Internal #: 179861-2
- TE Internal Description: AMP POWER D/LOCK PLUG HSG 4P
- All STD Temp Power Double Lock Plug (66)
-
Rectangular Power Connector Type : Housing
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Board
-
Number of Positions : 4
-
Centerline (Pitch) : 6.5 mm [ .255 in ]
Documents
Product Drawings
- AMP POWER DBL LOCK CONN, 6.5mm PITCH PLUG HOUSING 4 Pos (DBL DBL) ENG_CD_179861_C4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_179861-2_P.pdf 3D
- Customer View Model ENG_CVM_CVM_179861-2_P.2d_dxf.zip English
- ENG_CVM_CVM_179861-2_P.3d_igs.zip English
- ENG_CVM_CVM_179861-2_P.3d_stp.zip English
Datasheets & Catalog Pages
- SOFT_SHELL_PIN_AND_SOCKET_CONNECTORS_CATALOG ENG_CS_82181_SOFTSHELL_HIGH_DENSITY_0508.pdf English
Product Specifications
- Application Specification ENG_SS_114-5175_P3.pdf English
- Product Specification ENG_SS_108-5410_K3.pdf English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6233_2482868_A.pdf English
