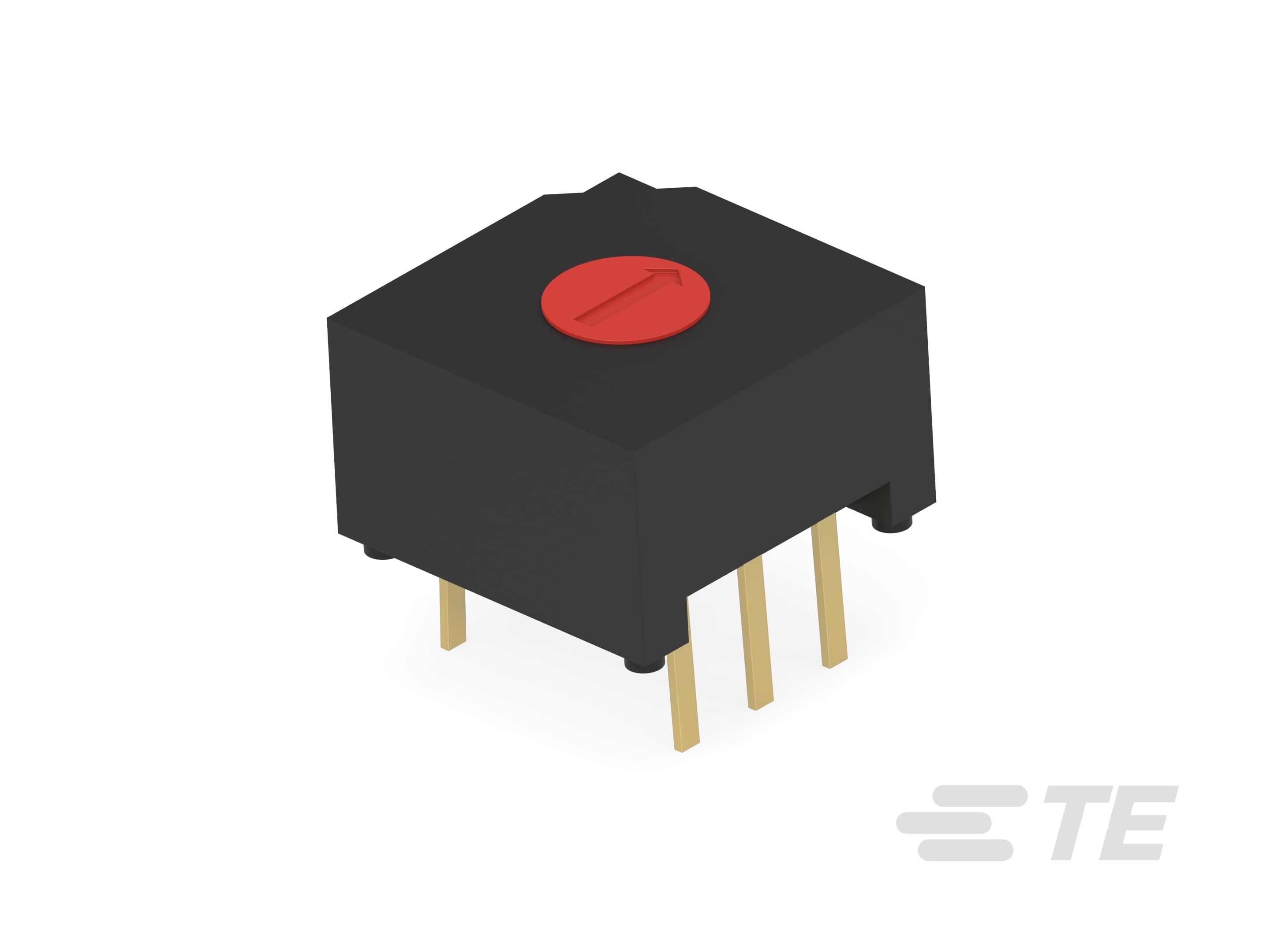

1825007-6
10 Position, Flush Actuator, Rotary DIP, 10 Switch, Thermoplastic, Sealed, .4 A Contact Rating, Decimal Code, 20 VDC, Alcoswitch DIP, Rotary Switches
1825007-6
10 Position, Flush Actuator, Rotary DIP, 10 Switch, Thermoplastic, Sealed, .4 A Contact Rating, Decimal Code, 20 VDC, Alcoswitch DIP, Rotary Switches
-
- Alcoswitch
- Alcoswitch DIP ,
- Alcoswitch Rotary DIP DRD
- TE Internal #: 1825007-6
- TE Internal Description: DRD10E04=ROT DIP,10P
- Alias #: DRD10E04
-
Number of Positions : 10
-
Actuator Style : Flush Actuator
-
Rotary Switch Type : Rotary DIP
-
Number of Switches : 10
-
Case Material : Thermoplastic
Documents
Product Drawings
- ROTARY DIP DRD E SERIES ENG_CD_1825007_A5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1825007-6_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_1825007-6_A1.3d_igs.zip English
- ENG_CVM_CVM_1825007-6_A1.3d_stp.zip English
- ENG_CVM_CVM_1825007-6_A1.2d_dxf.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
