1825256-1

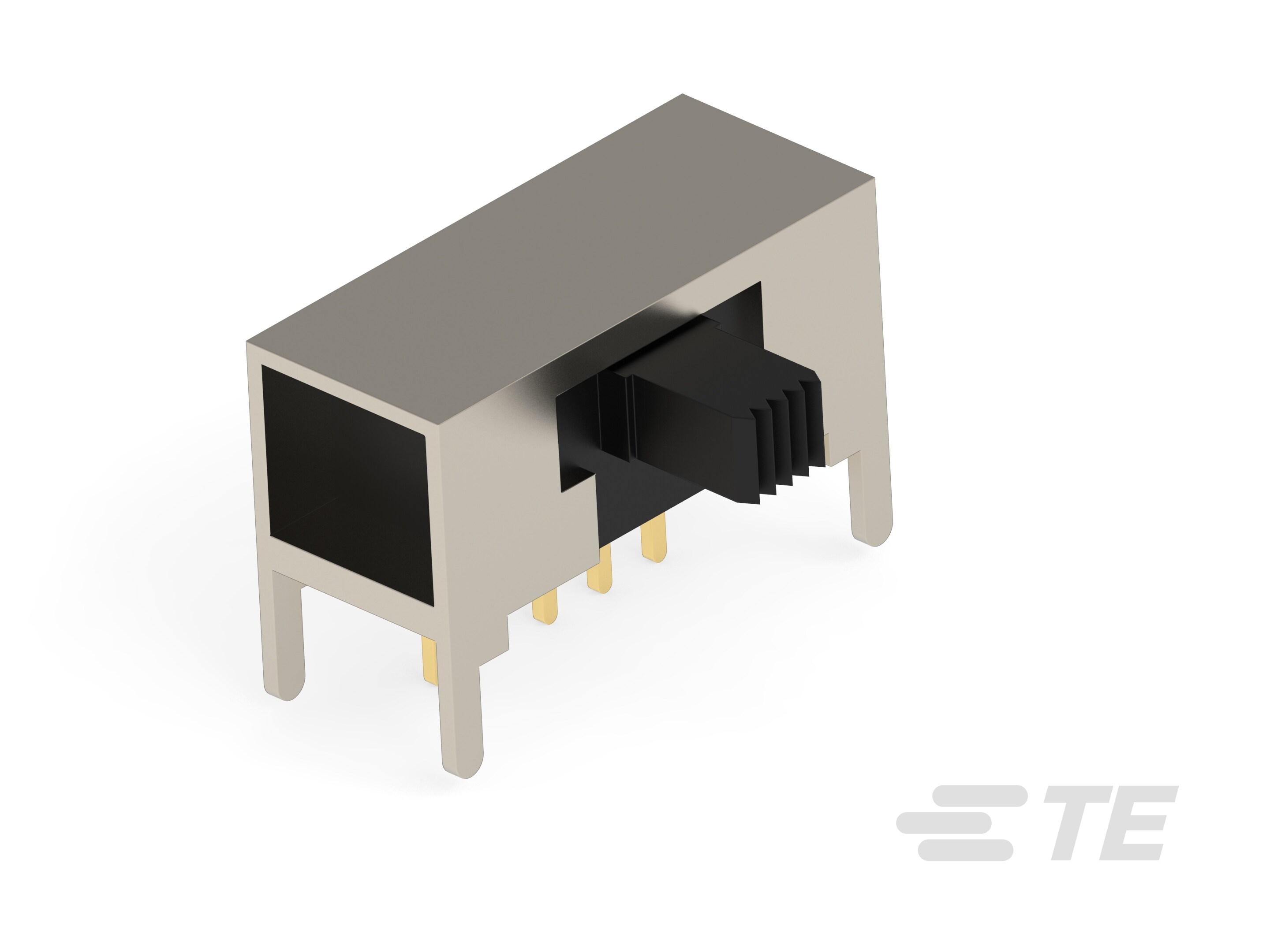

.3 A Slide Switch, Single Pole - Double Throw, Right Angle, Copper Alloy, Single Actuator, 2 Position, On None On, 125 VAC, Alcoswitch MHS
1825256-1
.3 A Slide Switch, Single Pole - Double Throw, Right Angle, Copper Alloy, Single Actuator, 2 Position, On None On, 125 VAC, Alcoswitch MHS
-
- Alcoswitch
- Alcoswitch MHS
- TE Internal #: 1825256-1
- TE Internal Description: MHS122RA04=SPDT SL SW R/A AG
- Alias #: MHS122R04
-
Contact Current Rating (A): .3
-
Configuration (Pole-Throw) : Single Pole - Double Throw
-
Product Orientation : Right Angle
-
Contact Base Material : Copper Alloy
-
Number of Actuators : Single
Documents
Product Drawings
- SLIDE SWITCH, MHS SERIES, SINGLE POLE, RIGHT ANGLE ENG_CD_1825256_A5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1825256-1_B1.pdf 3D
- Customer View Model ENG_CVM_CVM_1825256-1_B1.3d_igs.zip English
- ENG_CVM_CVM_1825256-1_B1.3d_stp.zip English
- ENG_CVM_CVM_1825256-1_B1.2d_dxf.zip English
Datasheets & Catalog Pages
- SWITCHES_CORE_PROGRAM_CATALOG ENG_CS_1308111-1_SWITCHES_CORE_PROGRAM_CATALOG_0308.pdf English
