- TE Internal #: 1879229-6

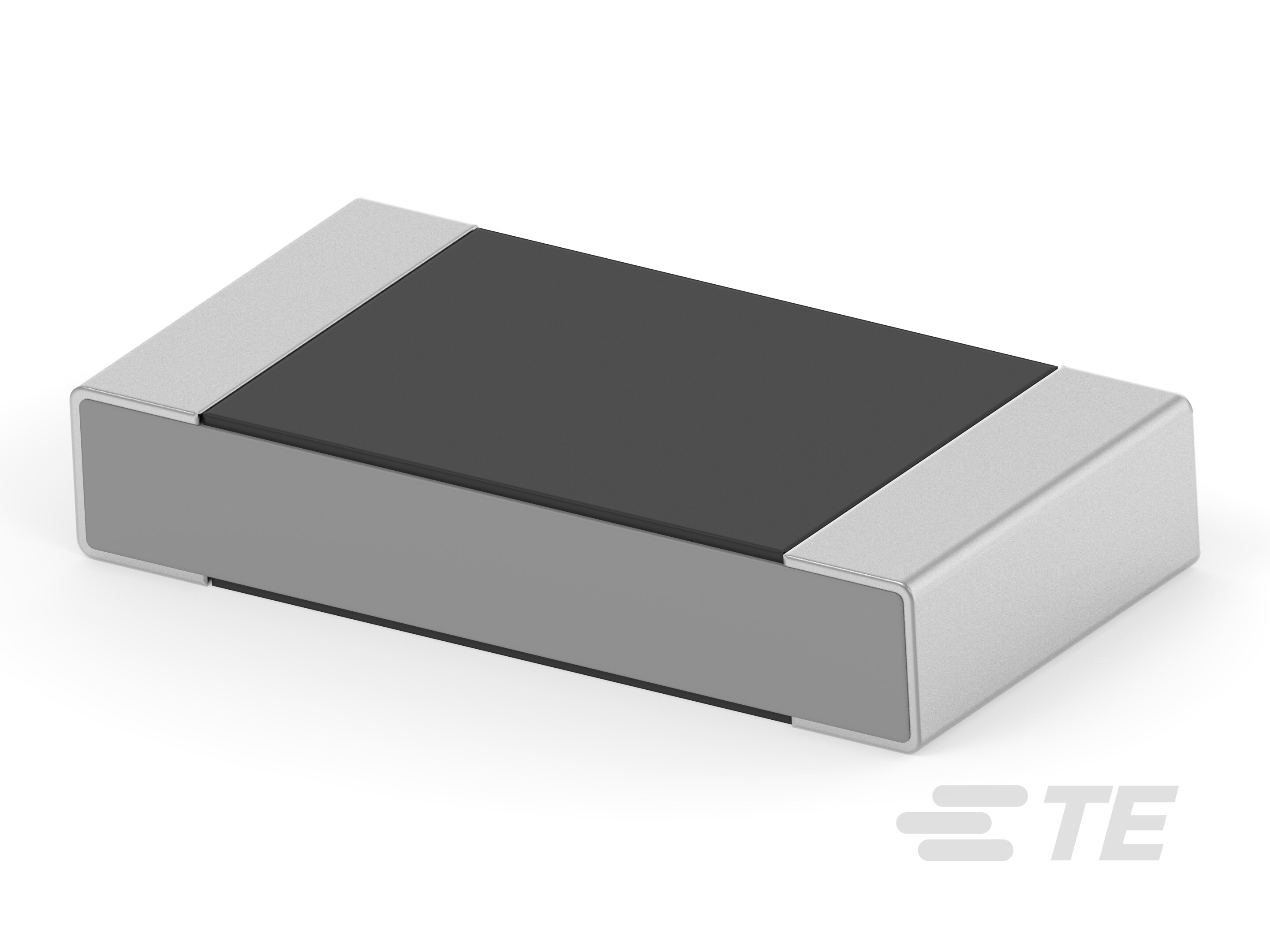

- TE Internal Description: FCR1206 5% 47R
-
Resistance Value (Ω): 47
-
Resistor Type : Fusible Resistor
-
Element Type : Thick Film
-
Package Size Code : 1206
-
Power Rating (W): .125
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1879229-6_BA.pdf 3D
- PCB Design Download symbol & footprint (SnapEDA)
- Customer View Model ENG_CVM_CVM_1879229-6_BA.2d_dxf.zip English
- ENG_CVM_CVM_1879229-6_BA.3d_igs.zip English
- ENG_CVM_CVM_1879229-6_BA.3d_stp.zip English
Datasheets & Catalog Pages
- 1309350_PASSIVE_COMPONENT ENG_CS_1309350_PASSIVE_COMPONENT_0807.pdf English
- Fusible Chip Resistors - Type FCR Series - Tyco Electronics Passives ENG_DS_1773216_D.pdf English
