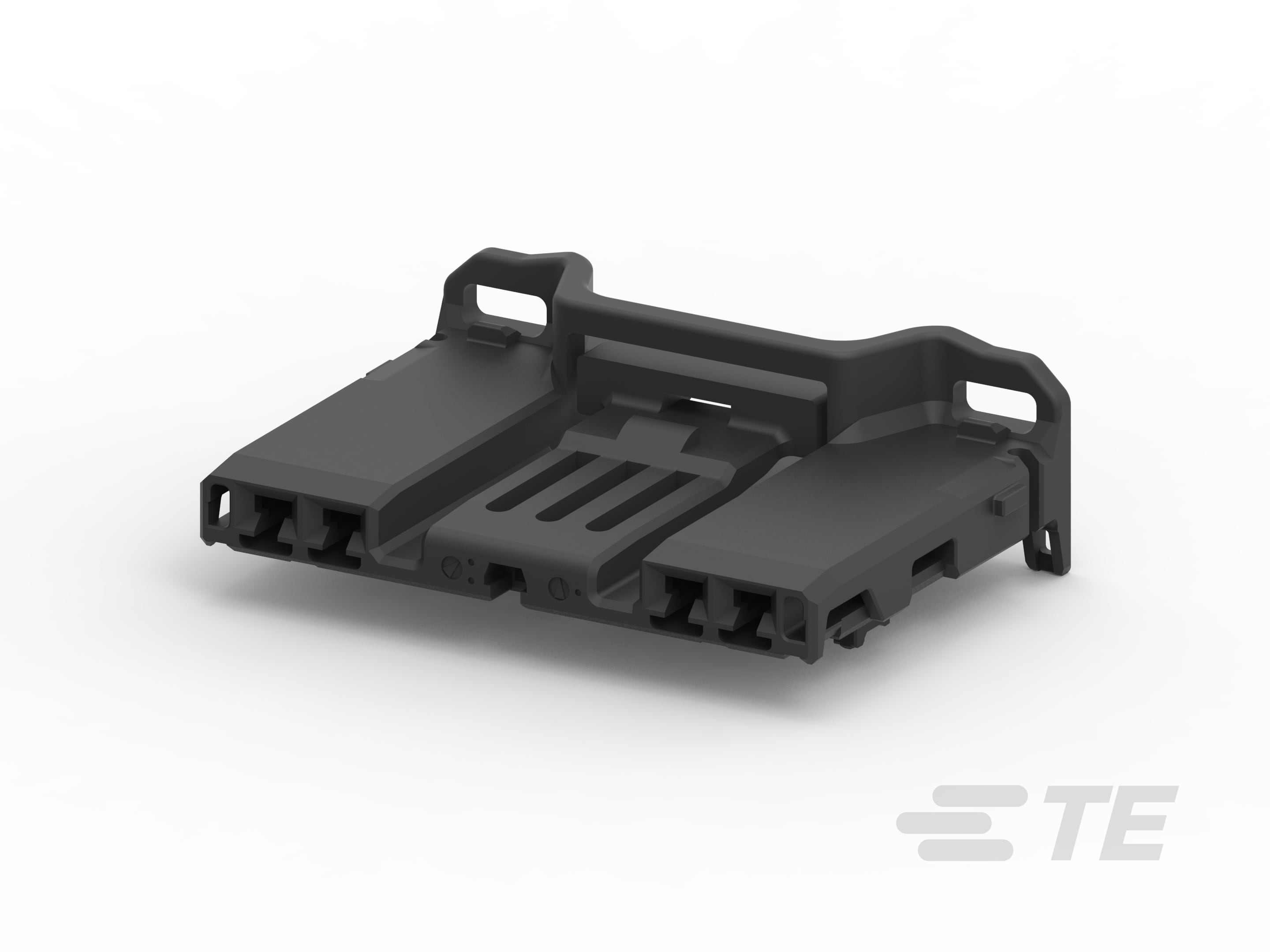

4 Position Housing, Housing for Female Terminals, Wire-to-Board, Black, Signal, Cable Mount (Free-Hanging), 0.50 Connector System
1903607-4
4 Position Housing, Housing for Female Terminals, Wire-to-Board, Black, Signal, Cable Mount (Free-Hanging), 0.50 Connector System
-
- AMP
- 0.50 Connector System
- TE Internal #: 1903607-4
- TE Internal Description: 1.5 SERIES CONNECTOR 4POS LOCK HOUSING
- All 0.50 CONNECTOR SYSTEM, CONNECTOR HOUSING (21)
-
Number of Positions : 4
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.5 mm [ .059 in ]
-
Connector System : Wire-to-Board
-
Sealable : No
