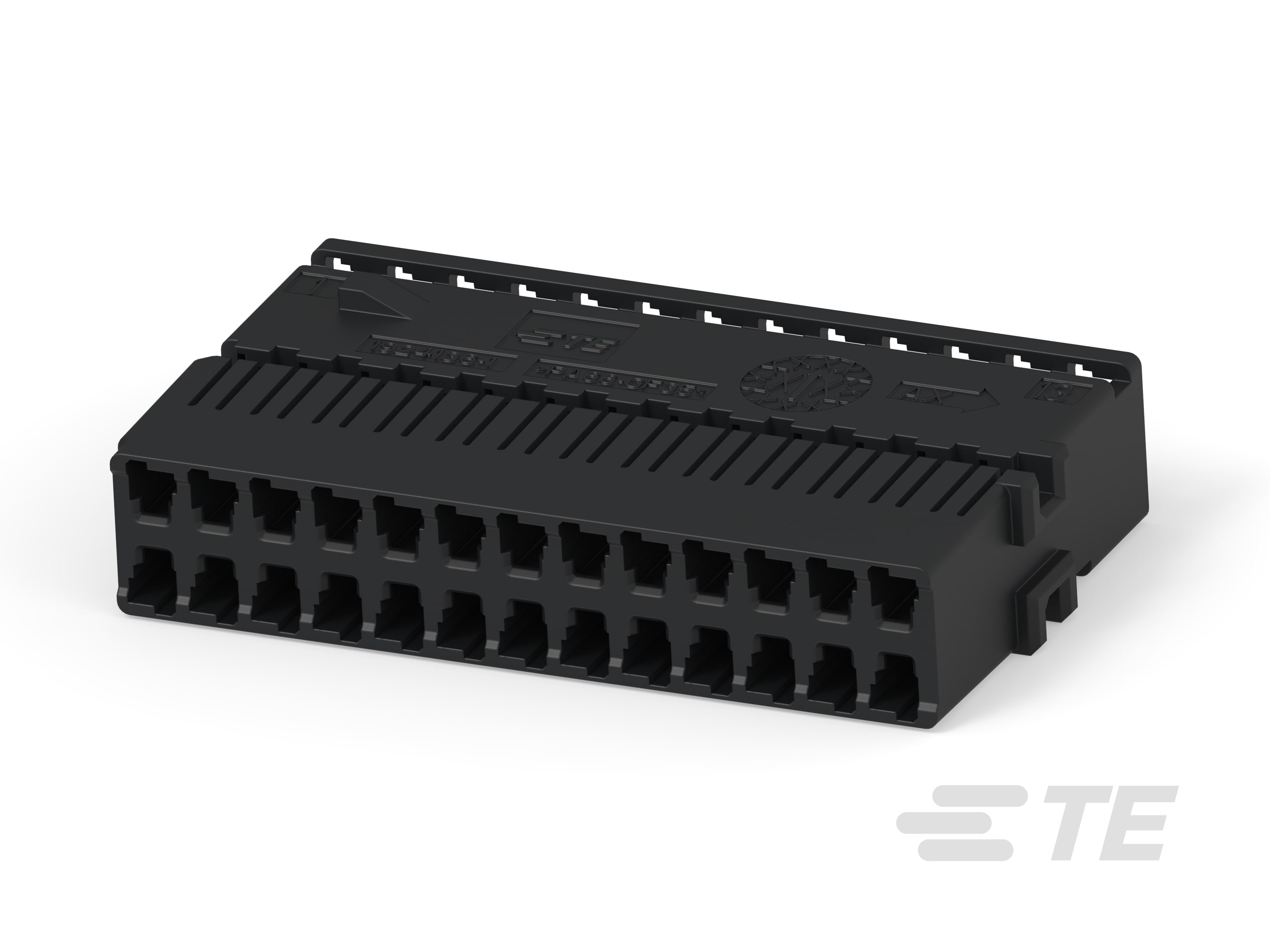

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Board

• Sealable : No

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 26

• Number of Rows : 2

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Contact Type : Receptacle

• Contact Size : .64mm

• Mating Tab Width : .64 mm [ .02 in ]

• Mating Alignment : With

• Mating Alignment Type : Polarization

• Terminal Position Assurance : Yes

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : Nylon 6/6 GF35

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Height : 7.8 mm [ .307 in ]

• Product Length : 19.8 mm [ .78 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Product Width : 34.8 mm [ 1.37 in ]

• Circuit Application : Signal

• Packaging Quantity : 50

• Packaging Method : Package
