Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

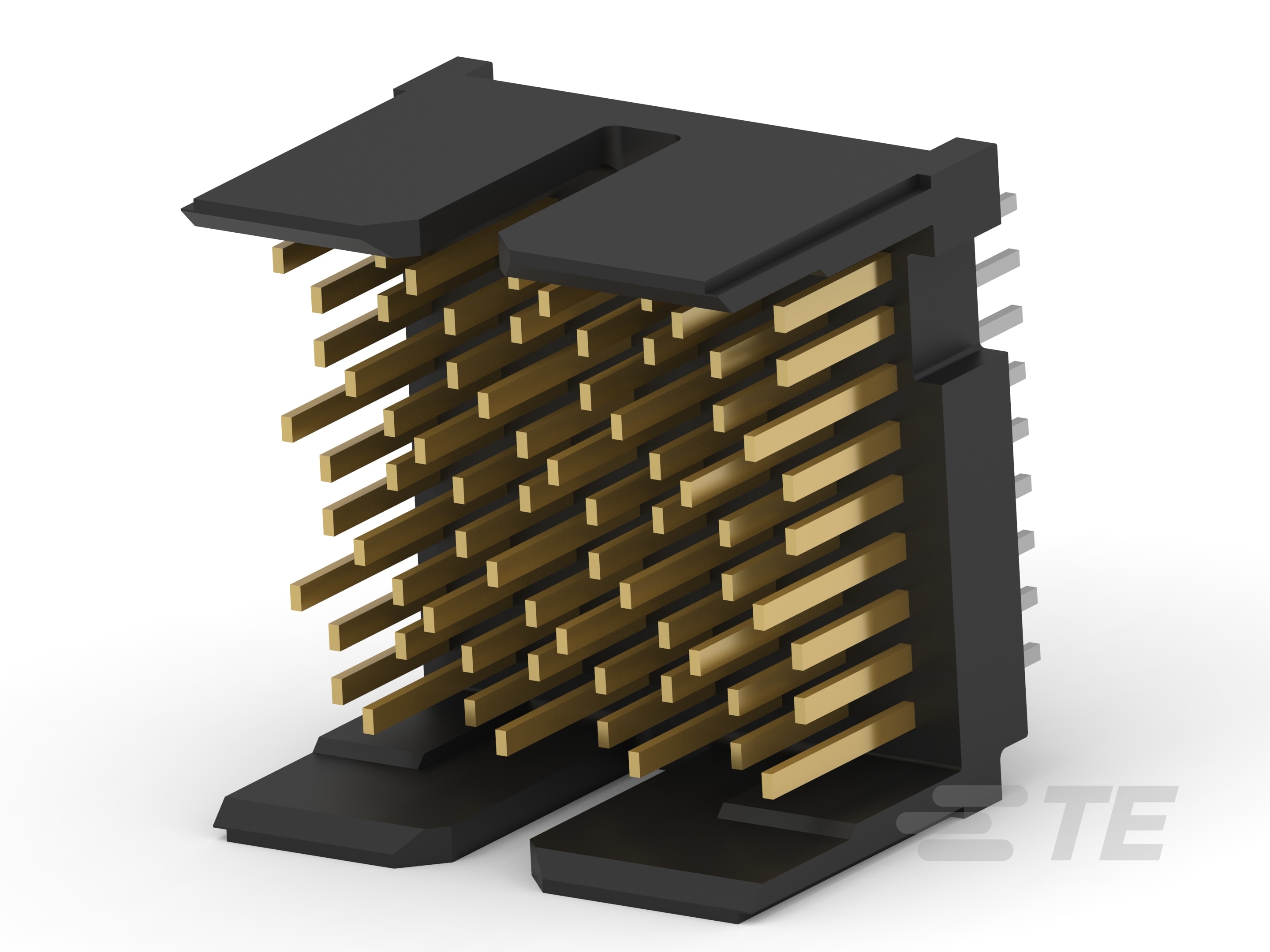

• Backplane Module Type : Center

• Connector System : Board-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Signal Arrangement : Differential

• PCB Connector Type : PCB Mount Header

• Shroud Style : Partially Shrouded

• Pairs per Column : 3

• Stackable : No

• Backplane Architecture : Traditional Backplane

• Number of Signal Positions : 48

• Number of Pairs : 24

• Number of Positions : 72

• Number of Rows : 9

• Number of Columns : 8

• PCB Mount Orientation : Vertical

• Impedance (Ω): 100

• Operating Voltage (VAC): 250

• Number of Differential Pairs per Column : 3

• Differential Impedance (Ω): 100

• Data Rate (Gb/s): 10

• Primary Product Color : Black

• Contact Type : Pin

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Mating Area Length : 6 mm [ .236 in ]

• Contact Mating Area Plating Material : Gold (Au)

• Contact Shape & Form : Rectangular

• PCB Contact Termination Area Plating Material Thickness : .5 µm [ 20 µin ]

• Contact Mating Area Plating Material Thickness : .76 µm [ 29.92 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Current Rating (Max) (A): .5

• Termination Post & Tail Length : 2.5 mm [ .098 in ]

• Termination Method to PCB : Through Hole - Press-Fit

• PCB Mount Alignment : Without

• PCB Mount Retention Type : Action/Compliant Tail

• Mating Retention : Without

• PCB Mount Retention : With

• Guide Hardware : Without

• Mating Alignment : With

• Mating Alignment Type : Guide Slot

• Connector Mounting Type : Board Mount

• Housing Material : LCP

• End Wall Location : Open

• Number of Shrouded Sides : 2

• Centerline (Pitch) : 1.9 mm [ .075 in ]

• Connector Length (mm): 15.35

• PCB Hole Diameter (mm): .47

• Connector Height (mm): 11.8

• Connector Width (mm): 16

• Row-to-Row Spacing : 1.4 mm [ .055 in ]

• Operating Temperature Range : -65 – 90 °C [ -85 – 194 °F ]

• Circuit Application : Signal

• Compatible With Approved Standards Products : UL E28476

• UL Flammability Rating : UL 94V-0

• Compatible With Agency/Standards Products : UL
