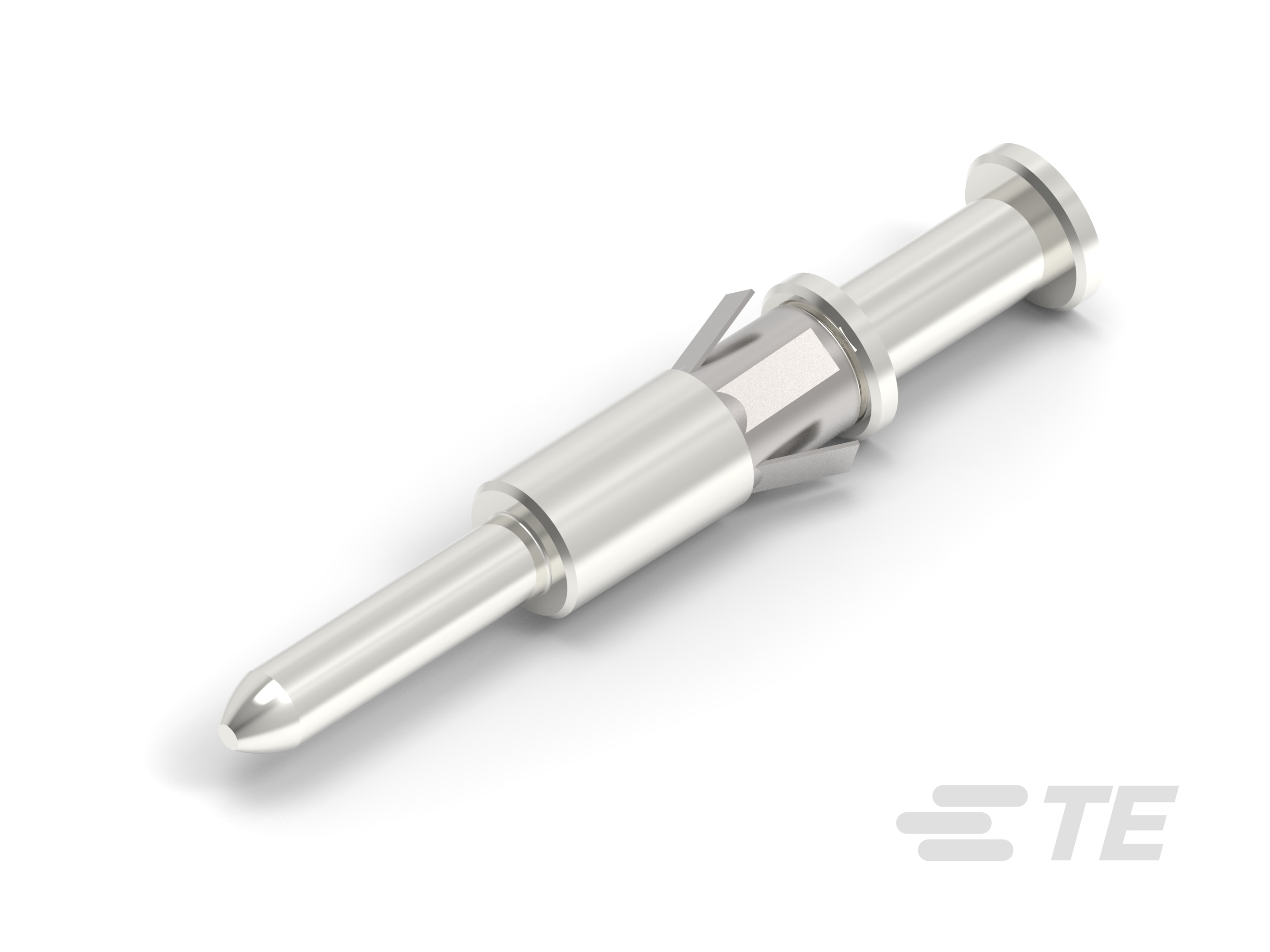

194189-3
Pin Contact, Silver (Ag), 14 – 12 AWG, 2.08 – 3.31 mm² Wire, Crimp, Copper Alloy, Power, -55 – 105 °C [-67 – 221 °F]
194189-3
Pin Contact, Silver (Ag), 14 – 12 AWG, 2.08 – 3.31 mm² Wire, Crimp, Copper Alloy, Power, -55 – 105 °C [-67 – 221 °F]
- TE Internal #: 194189-3
- TE Internal Description: PIN ASSY., CRIMP
-
Contact Type : Pin
-
Contact Mating Area Plating Material : Silver (Ag)
-
Wire Contact Termination Area Plating Material : Silver
-
Contact Retention Within Housing : With
-
Wire Size (AWG): 14 – 12
Documents
Product Drawings
- PIN ASSEMBLY, 3 MM English
- PIN ASSEMBLY, 3 MM ENG_CD_194189_G1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_194189-3_G.pdf 3D
- Customer View Model ENG_CVM_CVM_194189-3_G.2d_dxf.zip English
- ENG_CVM_CVM_194189-3_G.3d_igs.zip English
- ENG_CVM_CVM_194189-3_G.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13206_F.pdf English
- Product Specification ENG_SS_108-2285_A.pdf English
- Qualification Test Report ENG_SS_501-720_A.pdf English
